COMMAND RANGING & TELEMETRY UNIT CORTEX
CRT QUANTUM USER'S MANUAL
Ref. DTU 100042
Is.Rev. 5.17
Date: Dec.
03, 2021Sept. 30, 2021
© Safran Data Systems
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
Page 4
2.3.3.1.3. Configuration SM01037243D: Agencies / AIT 4U without EFC
The connection of the various signals to the user system is normally performed through the Interconnection
Panel described in 2.3.1.2.
The computer connections (LAN, VGA, RS232) are directly available on the Industrial Computer rear panel.
The picture below lists and identifies the various connections to the computer ports, and the I/O connectors of the
Cortex CRT Quantum dedicated hardware

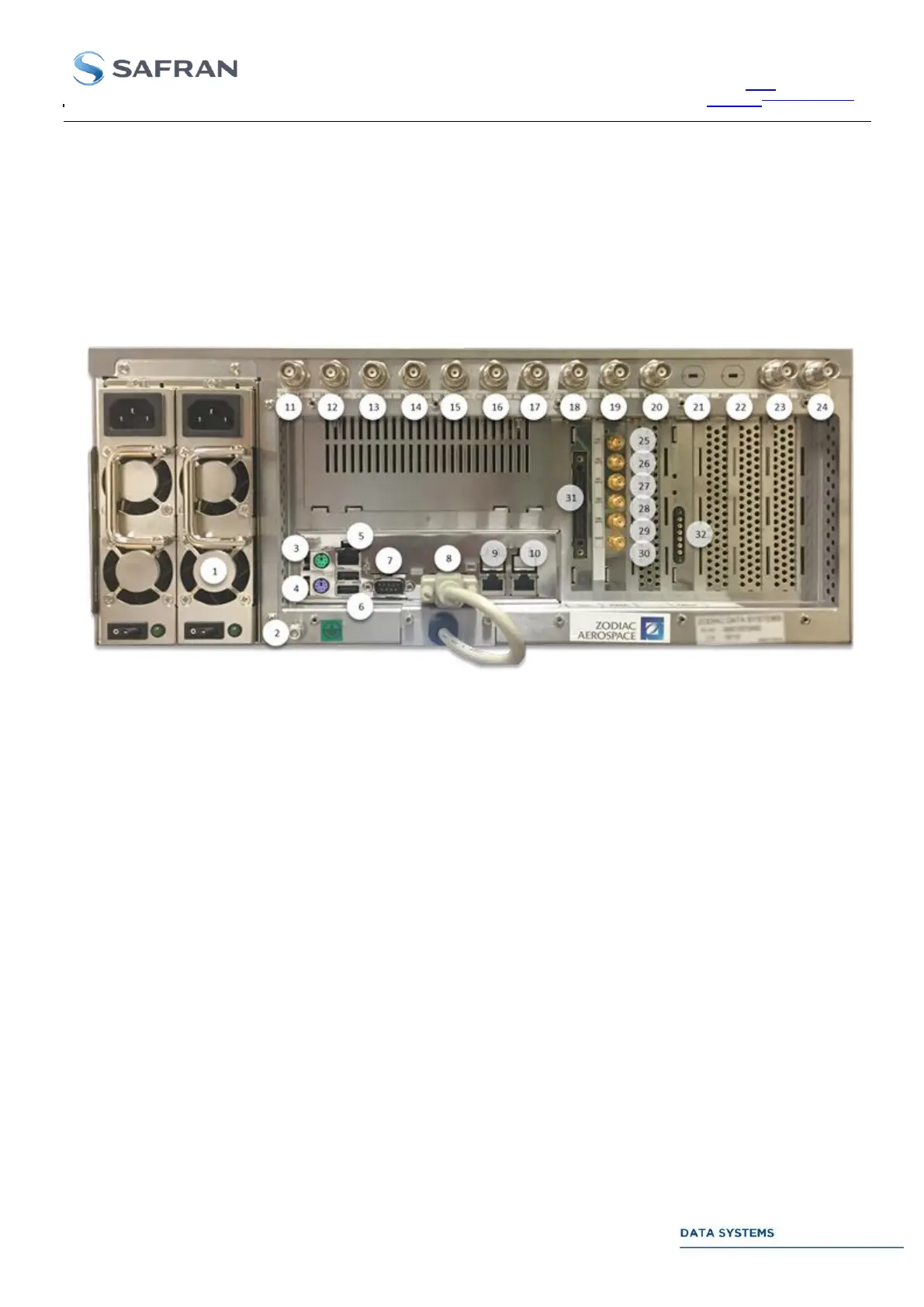

Figure 14: IS00427 Rear panel Connectors with BNC integration and external I/O connectors
Note : The CRT is able to support Simple or Redundant Power Supply (Factory Option)
