2.3.3.1.2. Configuration SM01037242C: COMSAT 4U with EFC
The connection of the various signals to the user system is normally performed
Directly at the rear panel for the 2 RF outputs and 3 RF inputs of the EFC board with SMA
connectors
Through the integrated interconnection panel on the chassis rear panel as described in 2.3.1.1
The computer connections (LAN, VGA, RS232) are directly available on the Industrial Computer rear panel.
The picture below lists and identifies the various connections to the computer ports, and the I/O connectors of the
Cortex CRT Quantum dedicated hardware.

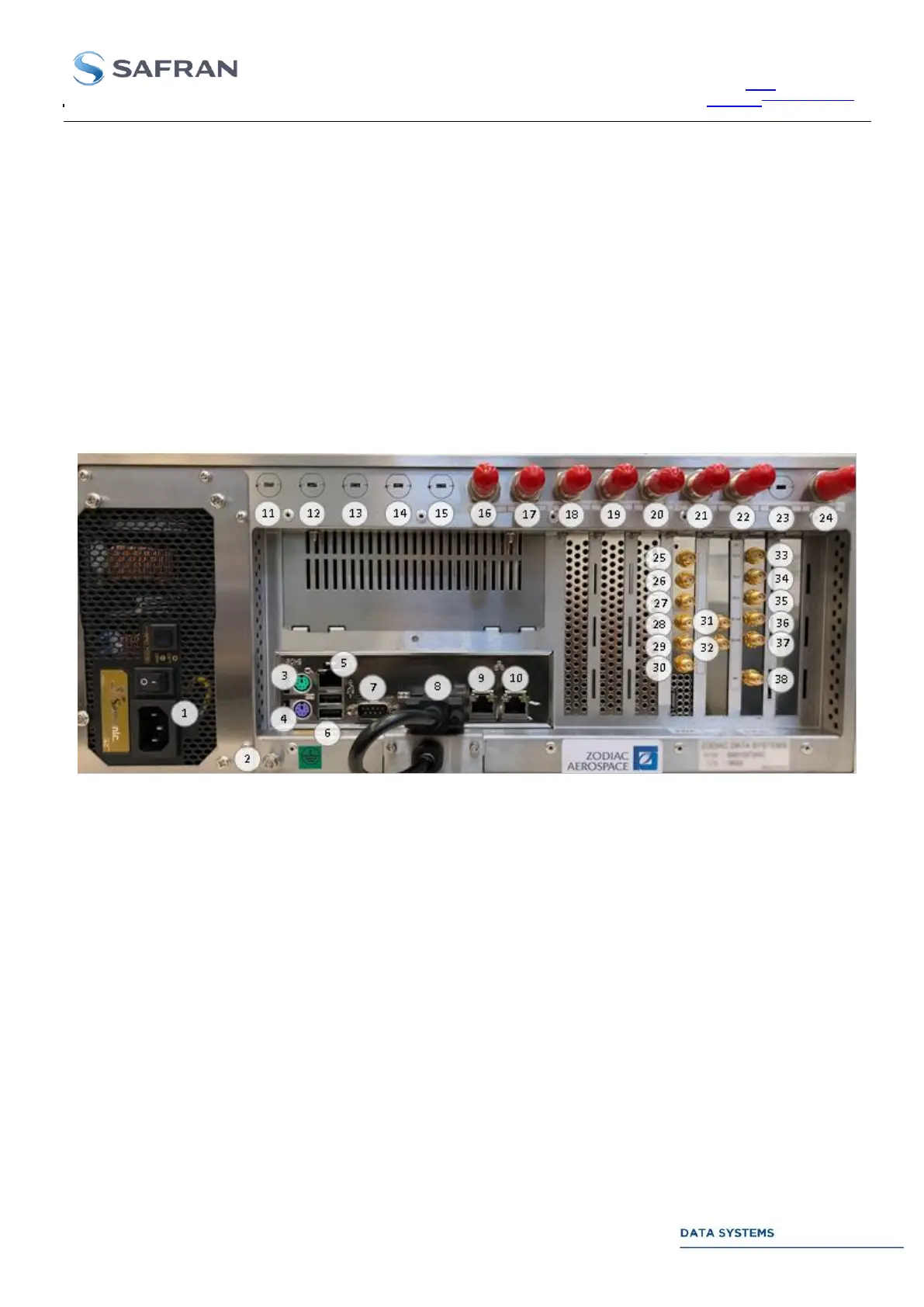

Figure 13: IS00427 Rear panel connectors with BNC integration and EFC
