2.3.1.1. Integrated Simplified Interconnection panel
On 4U chassis, I/O ports are fitted out with 14 BNC female connectors and 8 SMA female connectors. Next figure
illustrates the integrated panel appearance.

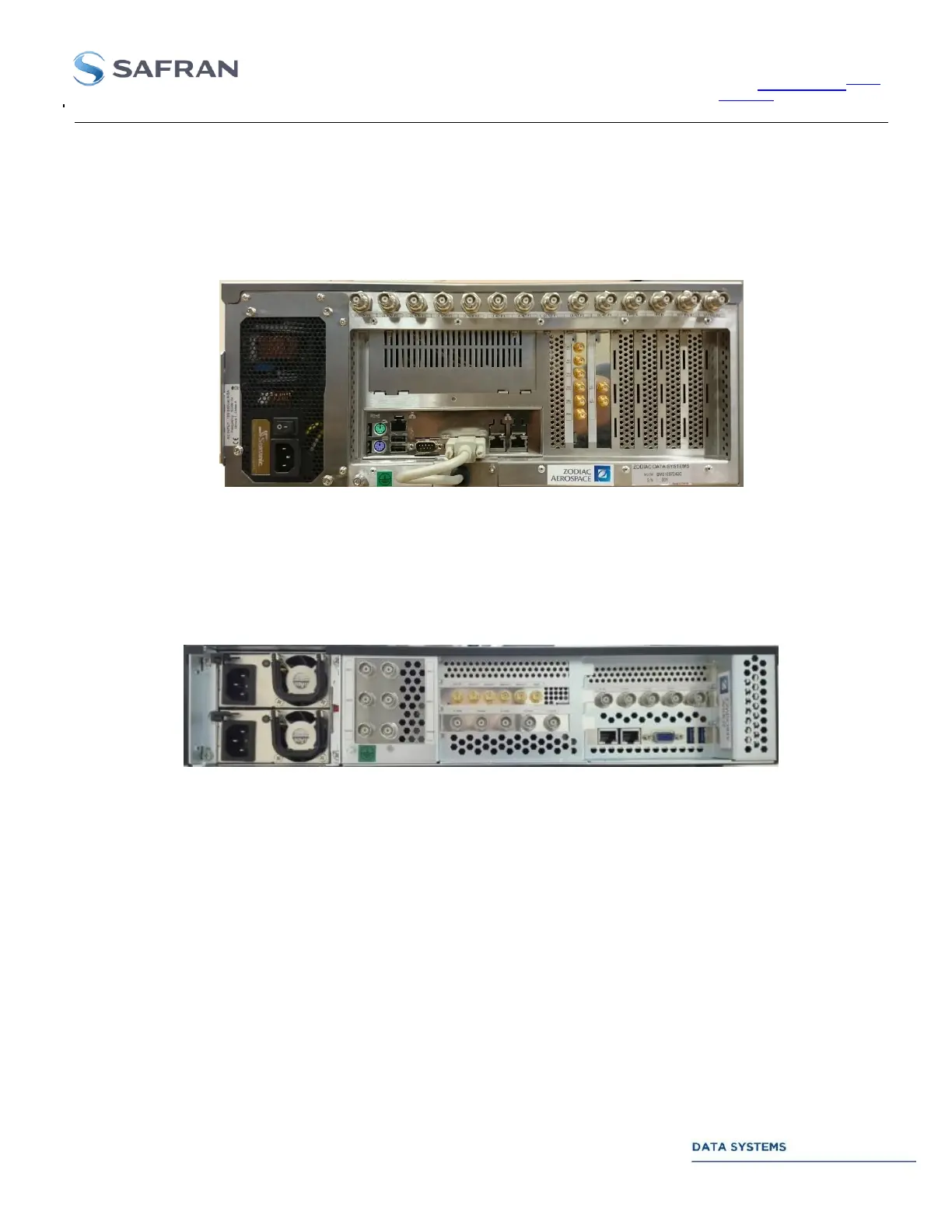

Figure 8: Integrated Simplified Interconnection Panel on IS00427
On 2U chassis, I/O ports are fitted out with 16 BNC female connectors and 6 SMA female connectors. Next
figure illustrates the integrated panel appearance.
Figure 9: Integrated Simplied Interconnection Panel on IS00452
