2.3.3.2.2. Configuration S100685: Agencies / AIT 2U without EFC
The connection of the various signals to the user system is directly performed ont the chassis rear panel as
described in 2.3.1.1. The computer connections (LAN, VGA) are directly available on the Industrial Computer

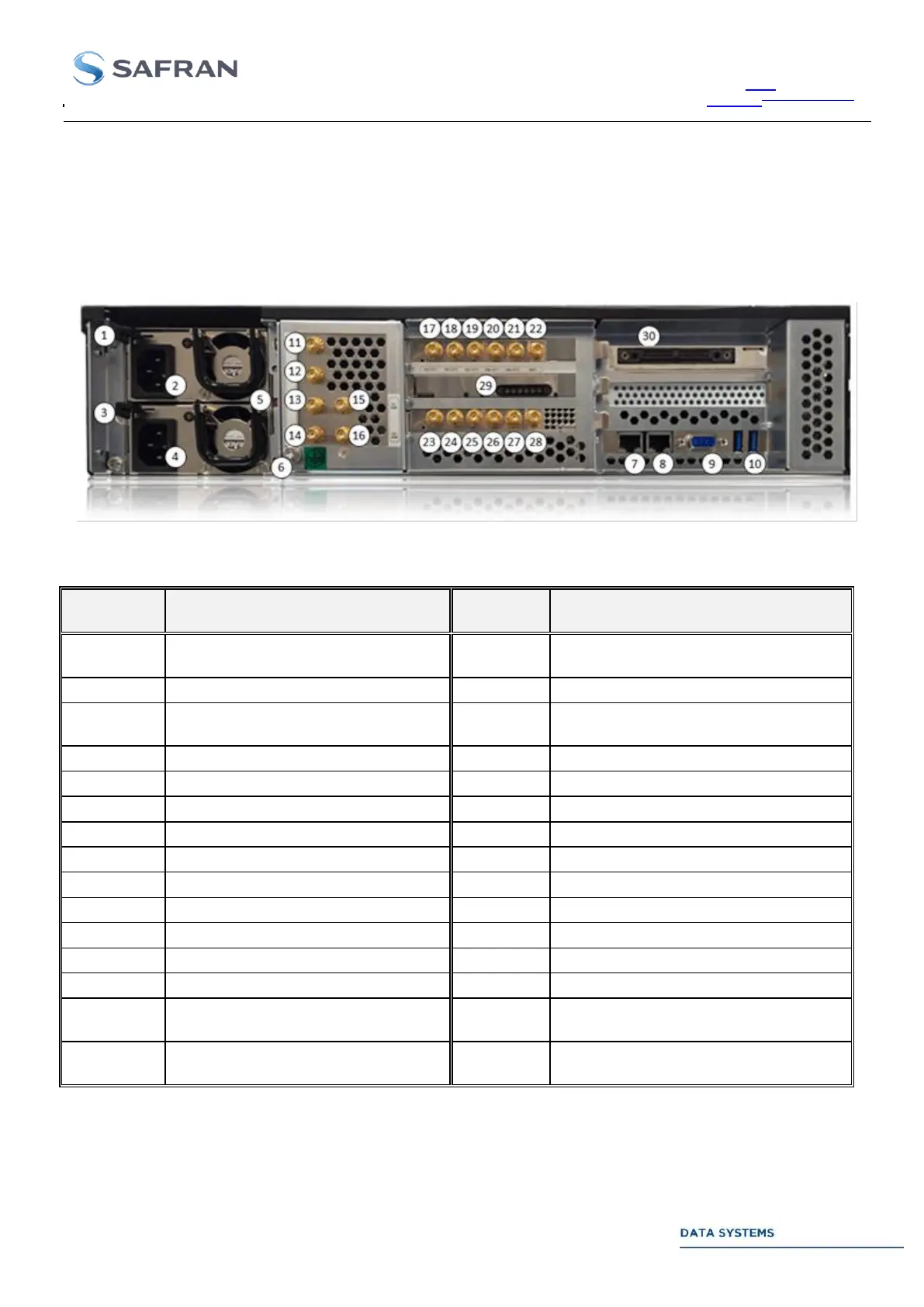

rear panel. The picture below lists and identifies the various connections to the computer ports, and the I/O
connectors of the Cortex CRT Quantum dedicated hardware.
Figure 17: Configuration S100685 Rear panel Connectors
Table 11: Configuration S100685 Rear panel Connectors
Connecto
r
Usage
Connect
or
Usage
1
Upper power supply unlock
system
16
Uplink – IF Nominal 2
2
Upper power supply AC input
17
Uplink – IF Alternate 1
3
Lower power supply unlock
system
18
Uplink – IF Alternate 2
4
Lower power supply AC input
19
Downlink – IF Alternate 1
5
Power supply Sound Alarm Button
20
Downlink – IF Alternate 2
6
Mechanical Ground
21
Downlink – IF Alternate 3
7
NIC1 – LAN
22
Reference Frequency 2
8
NIC2 – LAN
23
AGC out 1
9
VGA
24
AGC out 2
10
USB 3.0
25
AGC out 3
11
Downlink – IF Nominal 1
26
Video out 1
12
Downlink – IF Nominal 2
27
Video out 2
13
Downlink – IF Nominal 3
28
Reserved
14
Reference Frequency 1
29
Test Points, 1-PPS Out, Sync Pulse
In
15
Uplink – IF Nominal 1
30
IRIG In, 1-PPS In, Video In, Auxiliary
In
