3.8.2. UpLink Channels
The EFC is able to manage up to 2 outputs.
The 2 outputs can be set independently. For each output, the user can program:
 The frequency of the output
 The RF level of the output
 A mute function to disable or enable the output

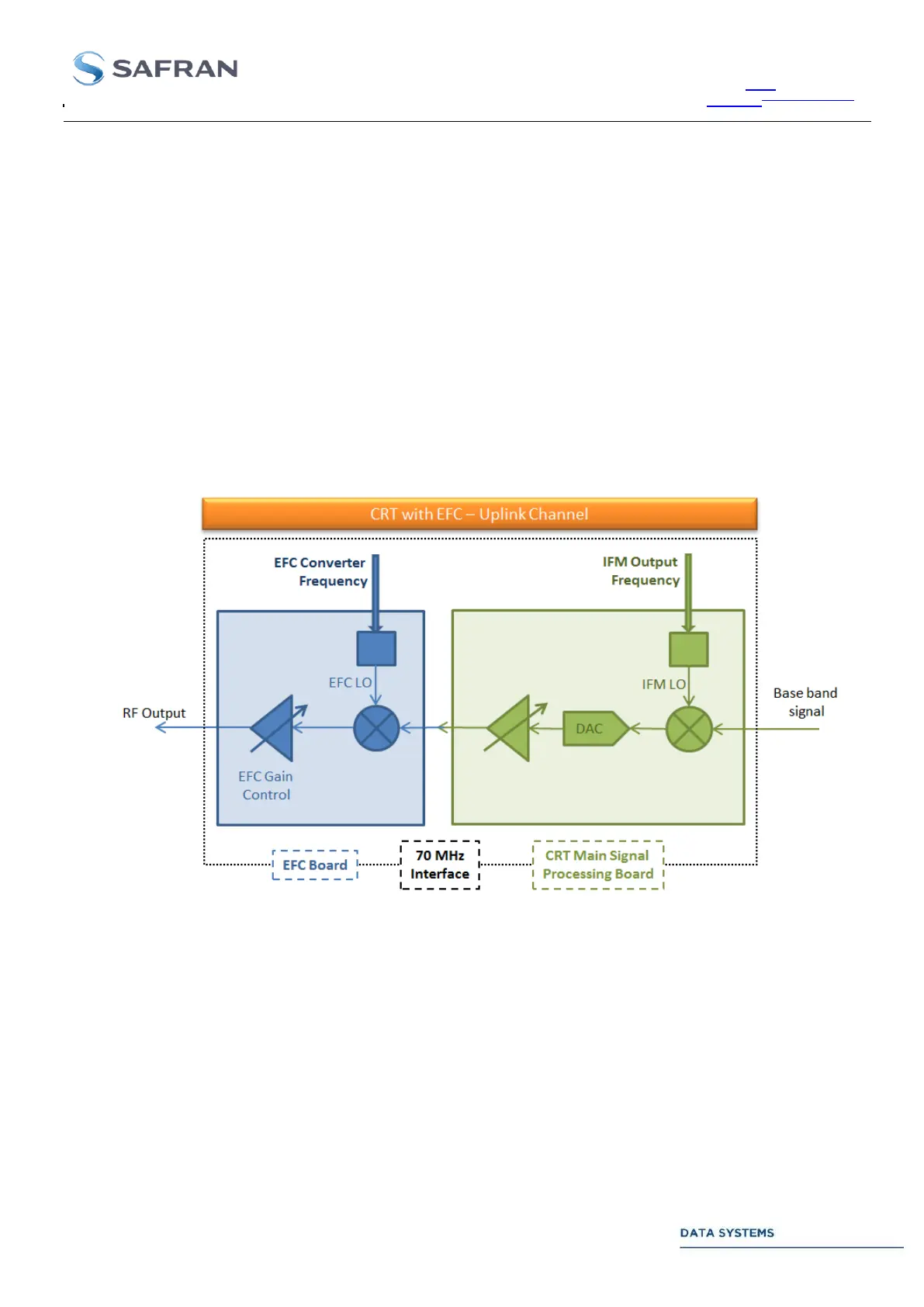

The diagram below illustrates with simple blocs, how the EFC and the main signal processing board are
connected and how the user shall adapt the frequencies at EFC stage and MSP stage.
Figure 92: CRT with EFC - UpLink Block Diagram
