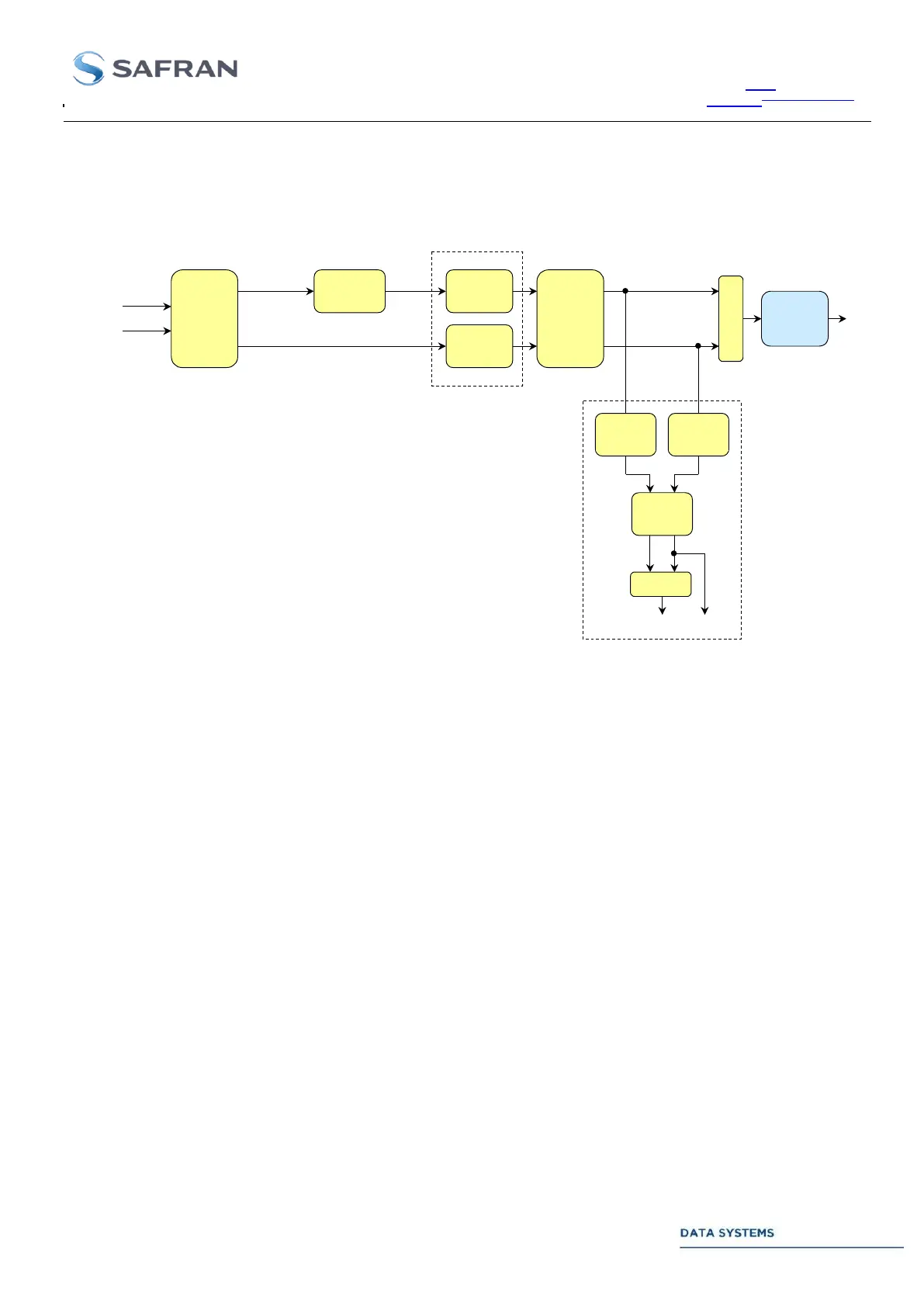

3.3.7.7. High Bandwidth PCM: Dual + Differential decoding
a- Nominal case (TMU table/offset 26 = 0. GUI: Frame Sync. Input = Internal):
interleaving
Frame
Synchronizer
interleaving
differential
encoder
invert/
swap
differential
encoder
I out Q out
Viterbi
decoder
Viterbi
decoder
PCM/PM,
BPSK,
QPSK,
OQPSK
demodulator
& B/S
IF inputs
Aux. inputs
BP, DM-M
decoder
(Option)
(Option)
I rail
Q rail
DQPSK,
DOQPSK
decoding
