2.3.1.2. Full Interconnection panel (3U)
I/O ports on the Interconnection Panel are all fitted out with BNC female connectors. Next figure illustrates the
3U panel appearance. The Interconnection Panel is delivered with the associated set of cables.

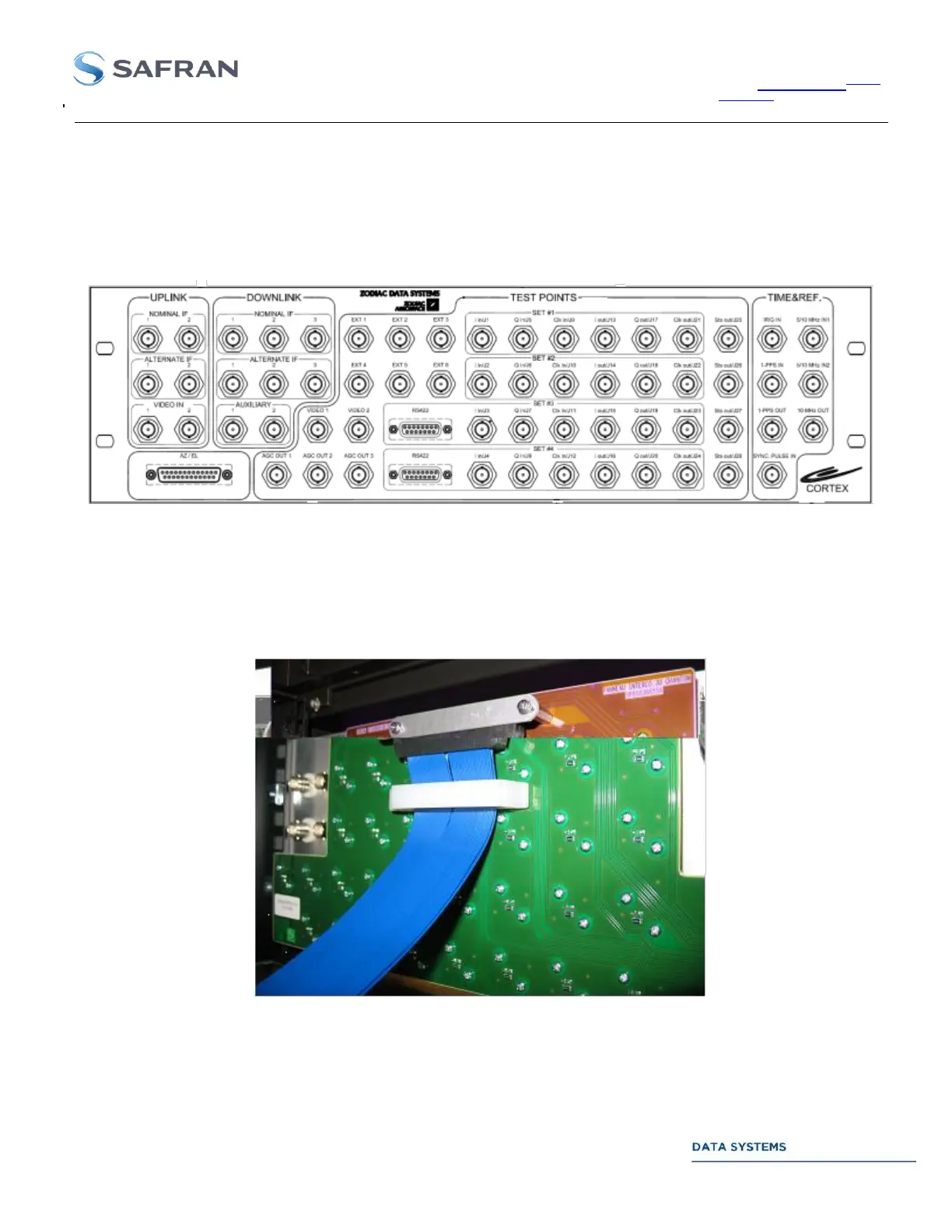

Figure 10: 3U Full Interconnection Panel
Please follow the picture below for properly connecting and securing the ribbon cable to the back side of the
interconnection panel:
Figure 11: Ribbon cable connection and securing
