2.3.3.2. Chassis 2U IS00452
2.3.3.2.1. Configuration S100684: COMSAT 2U without EFC
The connection of the various signals to the user system is directly performed on the chassis rear panel as
described in 2.3.1.1. The computer connections (LAN, VGA) are directly available on the Industrial Computer
rear panel. The picture below lists and identifies the various connections to the computer ports, and the I/O
connectors of the Cortex CRT Quantum dedicated hardware.

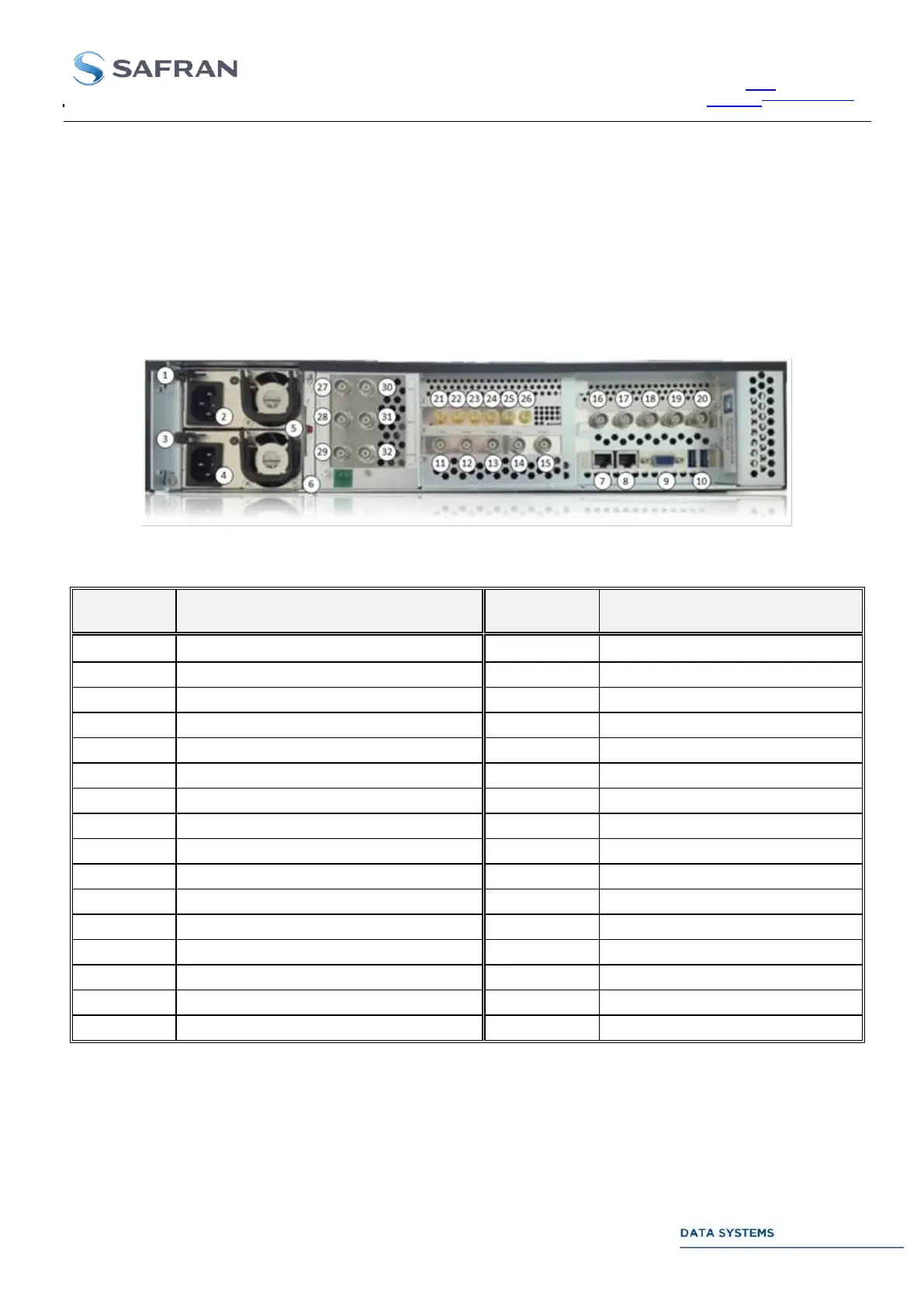

Figure 16: Configuration S100684 Rear panel Connectors
Table 10: Configuration S100684 Rear panel Connectors
Connecto
r
Usage
Connector
Usage
1
Upper power supply unlock system
17
Uplink – IF Alternate 2
2
Upper power supply AC input
18
Downlink – IF Alternate 1
3
Lower power supply unlock system
19
Downlink – IF Alternate 2
4
Lower power supply AC input
20
Downlink – IF Alternate 3
5
Power supply Sound Alarm Button
21
AGC out 1
6
Mechanical Ground
22
AGC out 2
7
NIC1 – LAN
23
AGC out 3
8
NIC2 – LAN
24
Video out 1
9
VGA
25
Video out 2
10
USB 3.0
26
Reserved
11
Uplink – IF Nominal 1
27
Reference Frequency 1
12
Uplink – IF Nominal 2
28
Reference Frequency 2
13
Downlink – IF Nominal 1
29
IRIG In
14
Downlink – IF Nominal 2
30
Downlink – Auxiliary 1
15
Downlink – IF Nominal 3
31
Downlink – Auxiliary 2
16
Uplink – IF Alternate 1
32
1-PPS In
