3.4.1.2.3. QPSK and OQPSK Modulation
3.4.1.2.3.1. Without Convolutional Encoding
 PCM encoding is disabled,
 In case of external PCM input, I & Q signals must be phase-aligned, even for OQPSK
modulation (half-symbol offset on Q channel is by the IFM).
Q or OQPSK
modulation
IF
filtering
(Option)
Noise
IF
outputs
(Option)
TMS data
I/Q Switch
I out Q out
(Option)
Q or OQPSK
modulation
IF
filtering
(Option)
Noise
IF
outputs
(Option)
TMS data
I out I in Q in
(Option)
I out

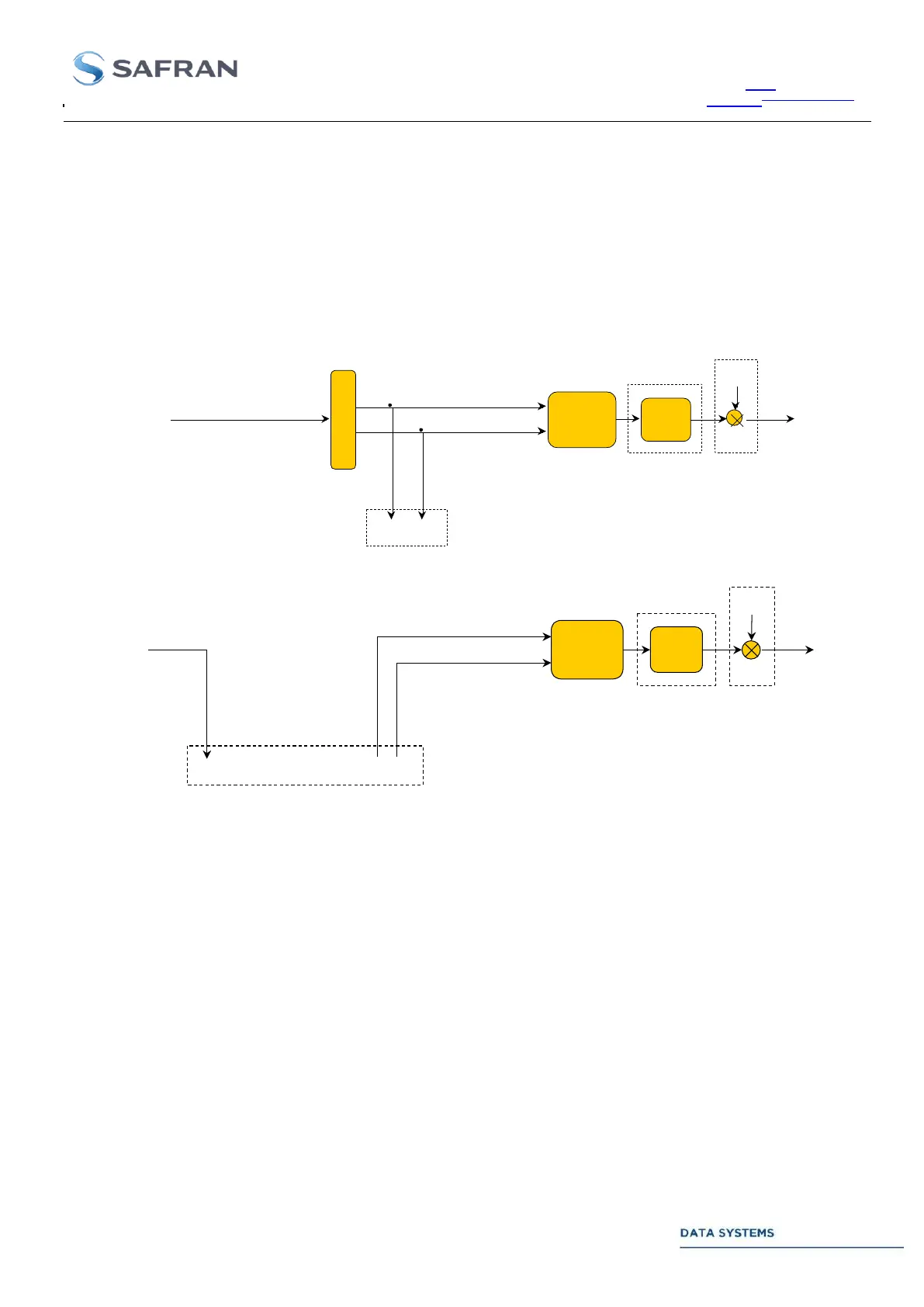

Figure 55: High Bandwidth Uplink Scenario ( QPSK, OQPSK without Convolutional Encoding)
