3.8.5. Interconnection

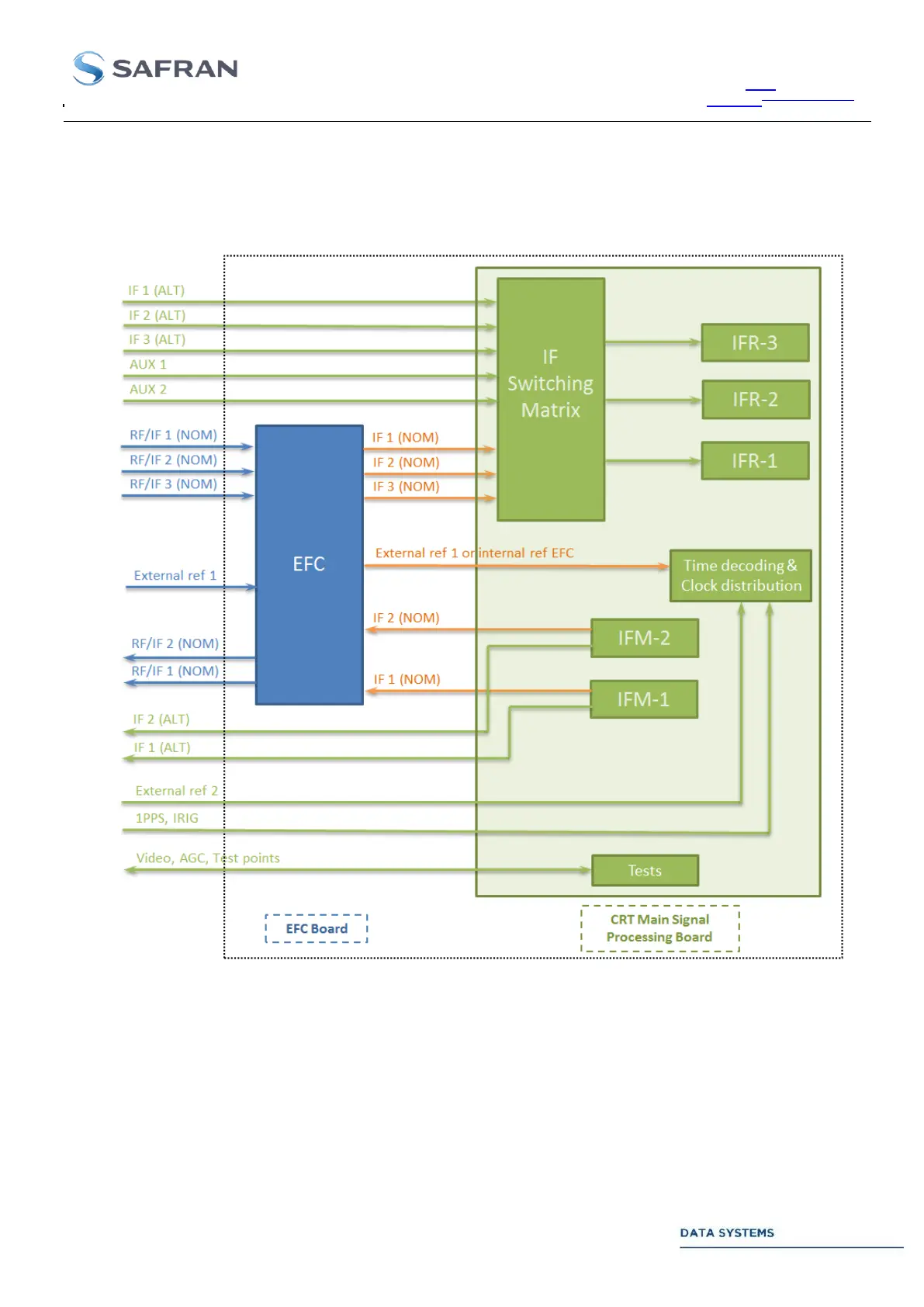

The diagram below illustrates the interconnection inside the CRT when the CRT is equipped with the EFC.
Figure 93: CRT with EFC - Interconnexion Diagram
