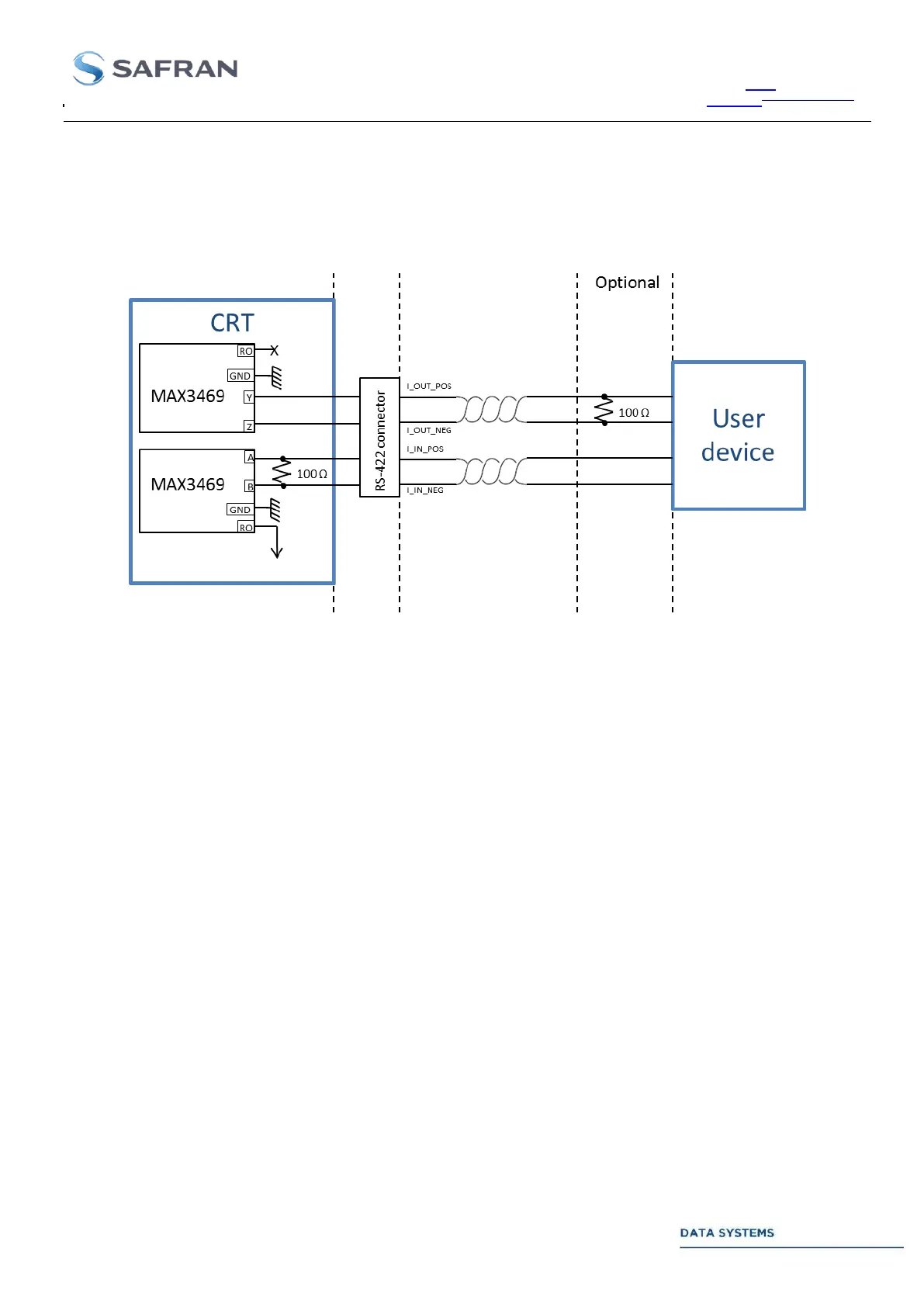

The following figure gives the interface with the Cortex RS-422 transceiver (MAX3469).
Only the I_IN and I_OUT signals are represented (see Table 14: Interconnection Panel. RS422 Data I/Os).
The same applies for Q and CLK signals.
Figure 21: RS-422 interface
The resistor at the input of the user device is not necessary if the latter has already an internal impedance of 100
Ohm.
