Waveform selection.
In SPS 6.22, a new feature is available.
You can now select the waveform for the sweeping. You now have 2 choices:
 Triangular (default value)
 Sinusoidal.
You can see on the figure below the waveforms for the following STI100013 values.
 Sweep Rate = 100Hz
 Sweep Range = 1000Hz

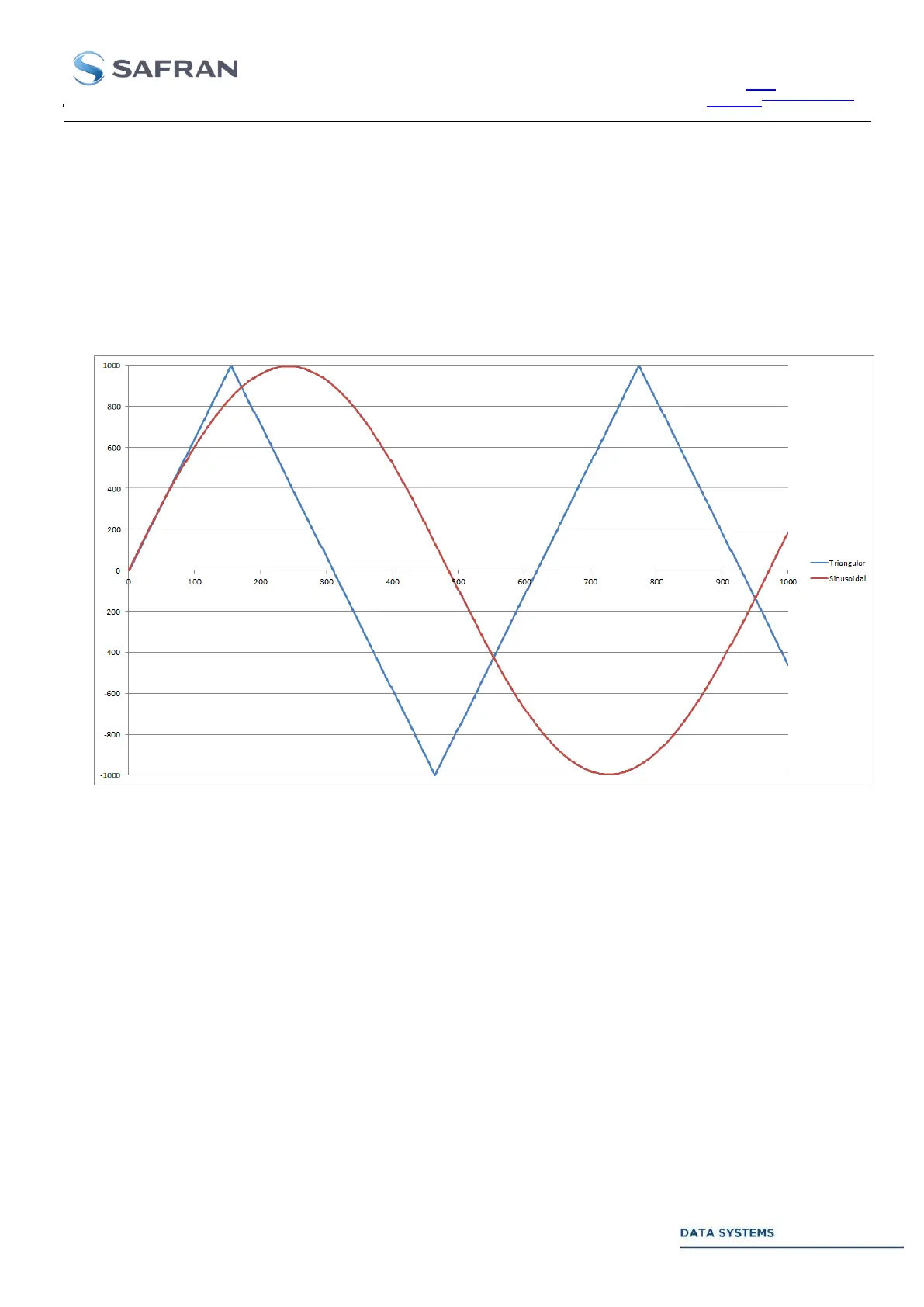

Figure 72: Sweeping waveform
Important notes:
 If you change the waveform when the sweeping is not in ON mode, it will have no effect.
The STI100013 value will be taken into account but there will be no change on the
sweping.
The waveform change will only be taken into consideration when the sweeping is ON. This
action will restart the sweeping from 0Hz.
 The sweep rate corresponds to the slope of the sinus at the start.
