SATO M-10e TT/DT Printers Service Manual
PN 9001098
Rev. A
2-6
Section 2. Configuration

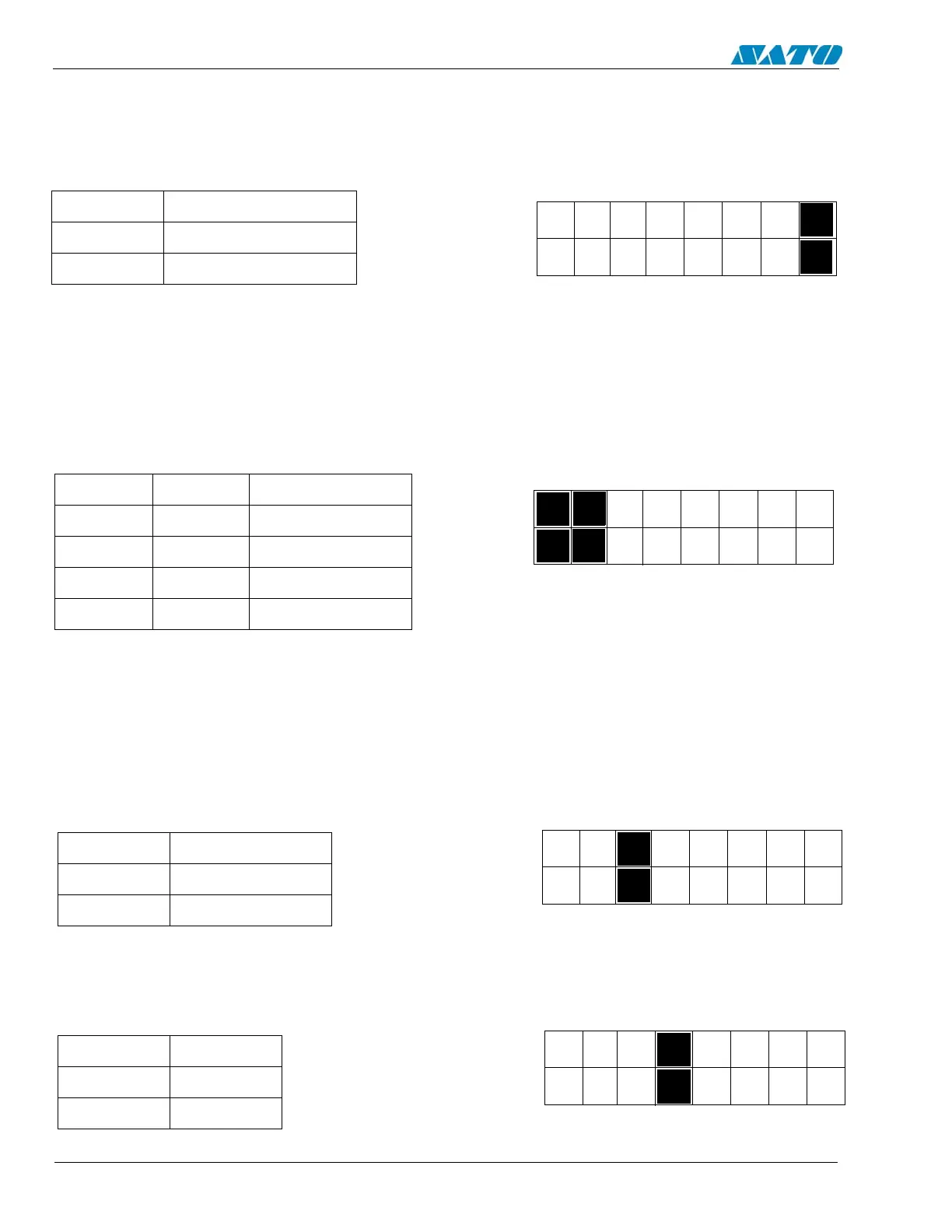

Backfeed Sequence Selection (DSW3-1, DSW3-2):
Backfeed is used to correctly position the label for application and then retract the next label to
the proper print position. This operation can be performed immediately after a label is printed
and used, or immediately prior to the printing of the next label.
DSW3-1 DSW3-2 SETTING
Off Off Continuous
Off On Tear Off
On Off Cutter*
On On Reserved
123 4 56 7 8
ON
OFF
DSW3
Serial Protocol Mode (DSW2-8):
This setting is for emulating earlier series software commands and should be used
only if problems are encountered when using existing software. This switch will also
affect the settings selected by DSW1-7 and DSW1-8.
123 4 56 7 8
ON
OFF
DSW2
DSW2-8 SETTING
Off Status 3 & 4 Enabled
On Status 2 & 3 Enabled
Label Sensor Selection (DSW3-3):
This setting enables or disables the Label Sensor. If the sensor is enabled, it will detect the edge of
the label and position it automatically. If it is disabled, the positioning must be under software
control using Line Feed commands.
123 4 56 7 8
ON
OFF
DSW3
Back-Feed Selection (DSW3-4):
When Back-Feed is enabled, the printer will position the label for dispensing and retract
it before printing the next label. The amount of backfeed is adjustable.
DSW3-4 SETTING
Off Enabled
On Disabled
123 4 56 7 8
ON
OFF
DSW3
DSW3-3 SETTING
Off Sensor Used
On Sensor Not Used
* Defaults to Continuous if cutter not installed.
