SATO E series Service Manual

SATO M-10e TT/DT Printers Service Manual
PN 9001098
Rev. A
2-12
Section 2. Configuration
LCD Panel —Normal Mode
STEP PROCEDURE
4. Print a test label after completing the adjustments to ensure it is
correct.
A B C D E F G
A B C D E F G
A B C D E F G

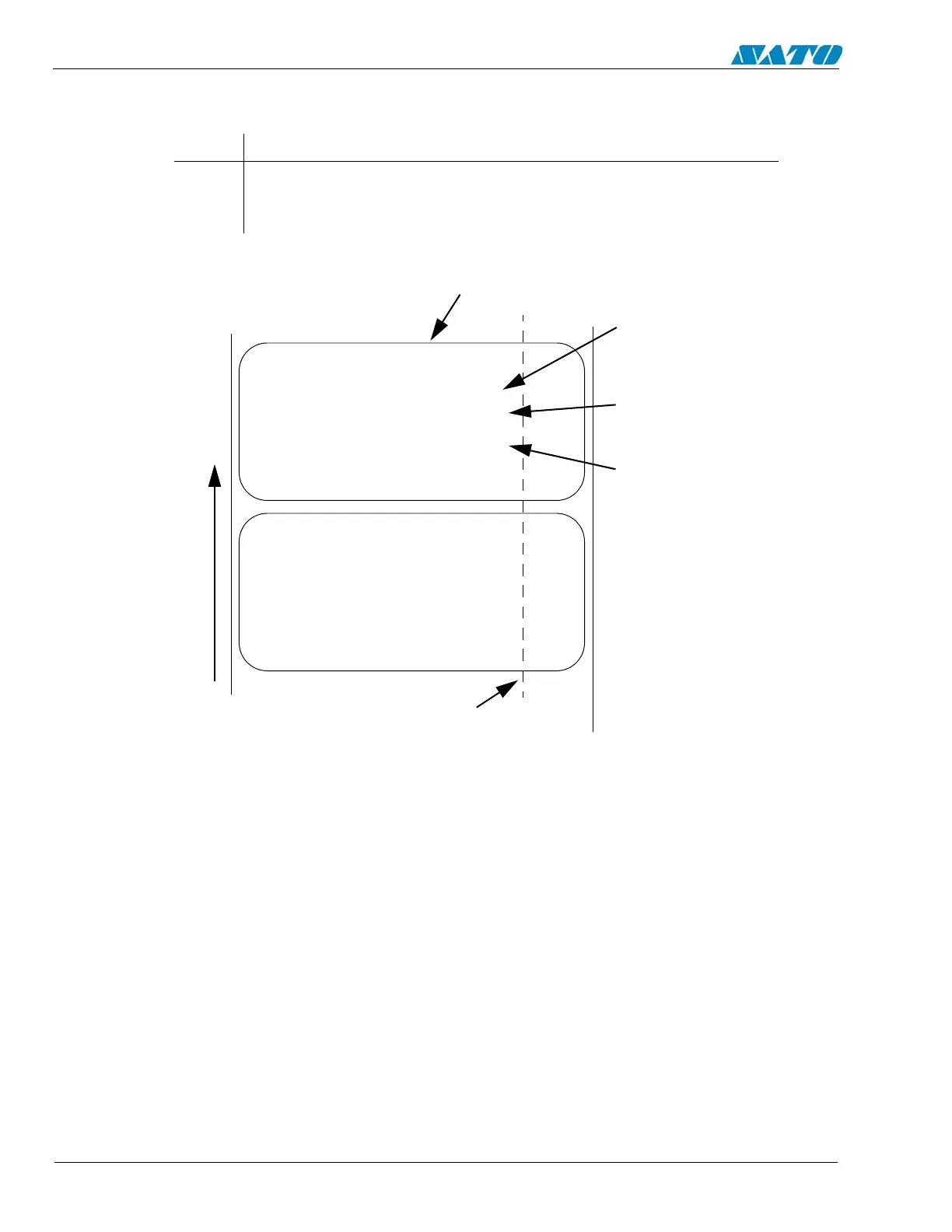

Leading Edge of Label
Moved with negative (-)
offset to print on leading
edge of the label
Original (0 offset) first line
position
Moved with positive (+) off-
set to print on trailing edge
of the label
Sensor Position
Line Feed Direction

SATO E series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Speed	6 ips (inches per second)
Max. Print Width	4.09 inches (104 mm)
Interfaces	USB, Ethernet
Media Type	Labels, Tags, Ticket
Ribbon Length	Up to 984 ft (300 m)
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
