Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
6-56
I/O modules PCD3
PCD3.B100
6
General technical data on inputs and outputs
Resistance to interference:
acc. to IEC 801-4
4 kV under direct coupling
2 kV under capacitive coupling (whole trunk group)
Internal current consumption:
(from +5 V bus)
1…25 mA
typically 15 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: Load current
Terminals:
Plug-in 10-pole spring terminal block (4 405 4954 0) or
pluggable 10-pole screw terminal block (4 405 4955 0),
both for wires up to 2.5 mm²

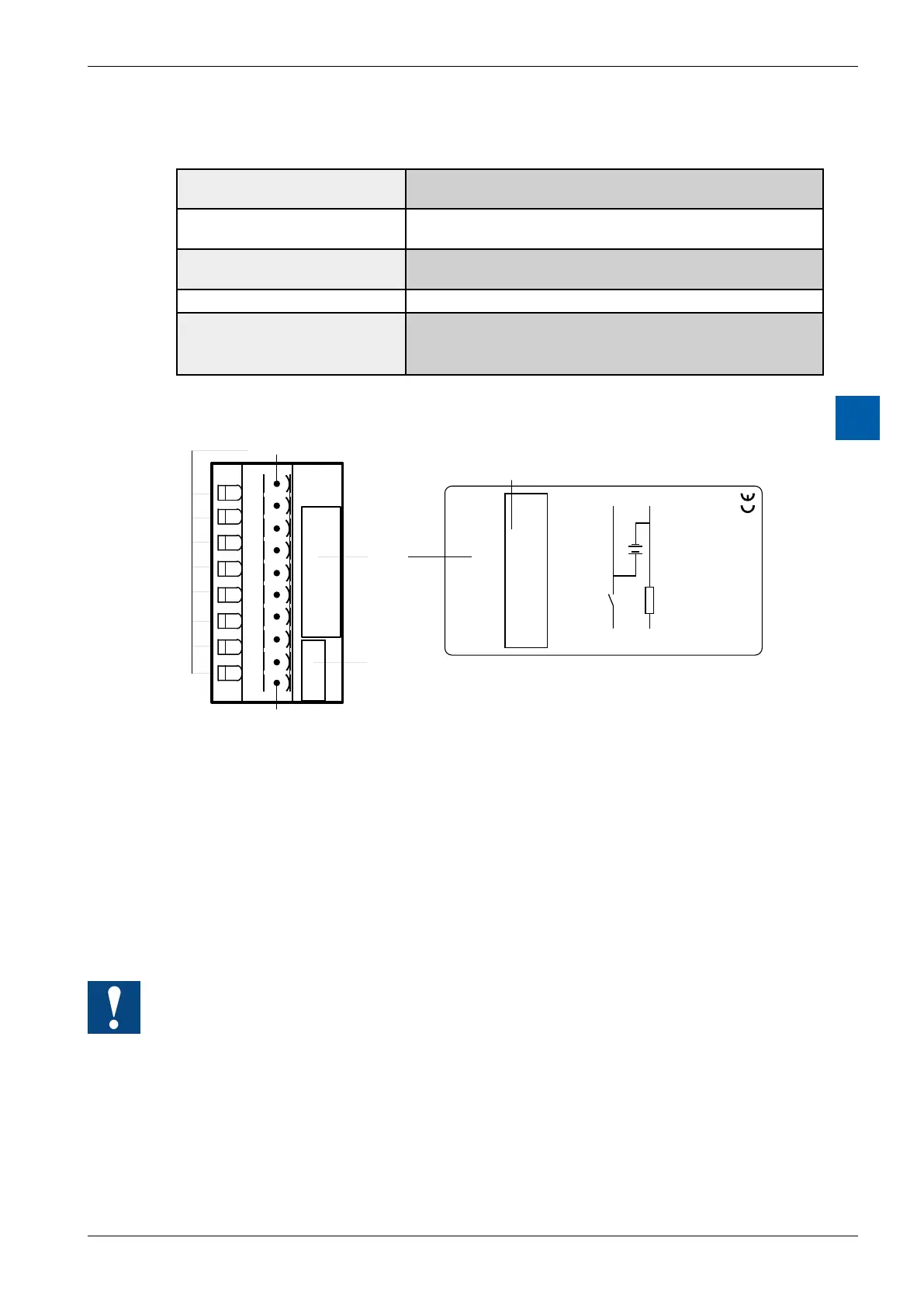

LEDs and connection terminals
0
1
2
3
4
5
6
7
LED 0...7
Terminal 0
Description
Label
Address
Label
0
1
2
3
4
5
6
7
8
9
E0
E1
E 2
E 3
E
E
A6
A7
+
–
/A
/A
/A4
/A5
PCD3.B100 2 IN 2 Out + 4 I/Os
E
n
+ –
A
n
24V
+ –
Terminal 9
Terminal
B
1
0
0
The module contains 8 LEDs:
● 2LEDsaredirectlytriggeredbythepureinputs.
● 2LEDsaredirectlytriggeredbythepureoutputs.
● 4LEDsaretriggeredbytheinputsofthecombinedinputs/outputsand
therefore always indicate voltage status at the I/O terminal.
If the combined I/Os are used as outputs, the following should be noted:
The LEDs of combined outputs E/A2…E/A5 only light up when the output
is high and a supply voltage of 24 V is connected to U
ext
.
Mixing the combined inputs/outputs
If combined I/Os are used as inputs in source operation, i.e. with sending devices
which either apply +24 V to the input or are open, the low status of an open input
can be overwritten as high if the corresponding output at the same address is set
in error. However, if the input is shifted to 0 V with a changeover contact and the
corresponding output is set in error, the MOS-FET can be destroyed, as it is not
short circuit protected. For this reason, only positive-switching contacts should be
used.
