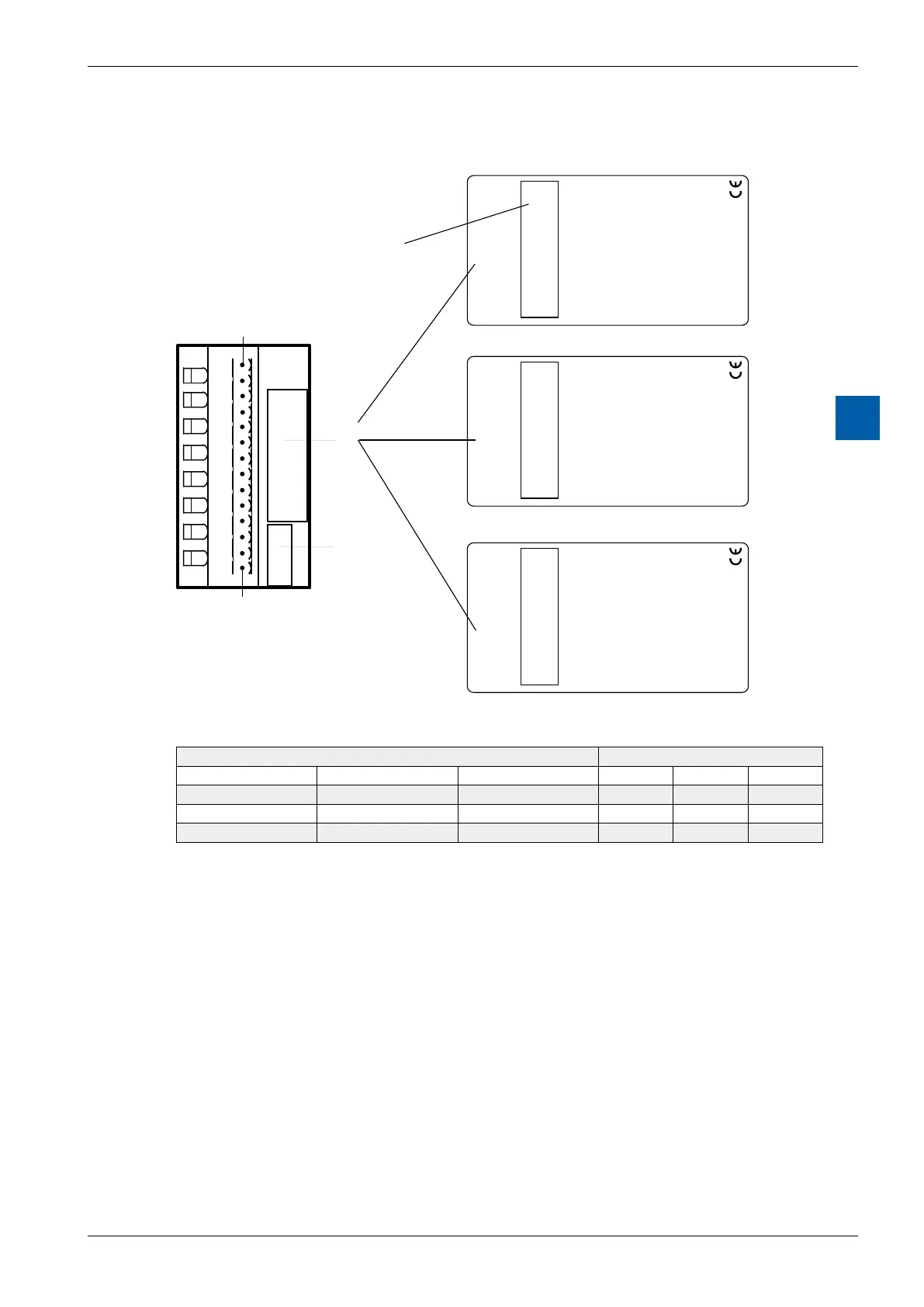

I/O modules PCD3
PCD3.W3x5
6
Connections
0
1
2
3
4
5
6
7
Description-
label
Address-
label
Terminal 13
0
1
2
3
4
5
6
7
8
9
10
11
12
13
PCD3.W305 A
7 inputs 0-10V
Galvanic Separated
W
3
0
5
E0
GND
E1
GND
E2
GND
E3
GND
E4
GND
E5
GND
E6
GND
0
1
2
3
4
5
6
7
8
9
10
11
12
13
PCD3.W315 A
7 inputs 0-20mA
Galvanic Separated
W
3
1
5
E0
GND
E1
GND
E2
GND
E3
GND
E4
GND
E5
GND
E6
GND
0
1
2
3
4
5
6
7
8
9
10
11
12
13
PCD3.W325 A
7 inputs +/-10V
Galvanic Separated
W
3
2
5
E0
GND
E1
GND
E2
GND
E3
GND
E4
GND
E5
GND
E6
GND
Terminal 0
Terminals
Digital/analogue values
Input signals and type Digital values
PCD3.W305 PCD3.W315 PCD3.W325 Classic xx7 Simatic
+ 10.0 V + 20 mA +10 V 4095 4095 27684
+ 5.0 V + 10 mA 0 V 2047 2047 13842
0 V 0 mA –10 V 0 0 0
Connection concept for voltage and current inputs
The voltage and current input signals are connected directly to the 14-pole
terminal block (I0…I6 and COM). To minimize the amount of interference coupled
into the module via the transmission lines, connection should be made according
to the principle explained below.
