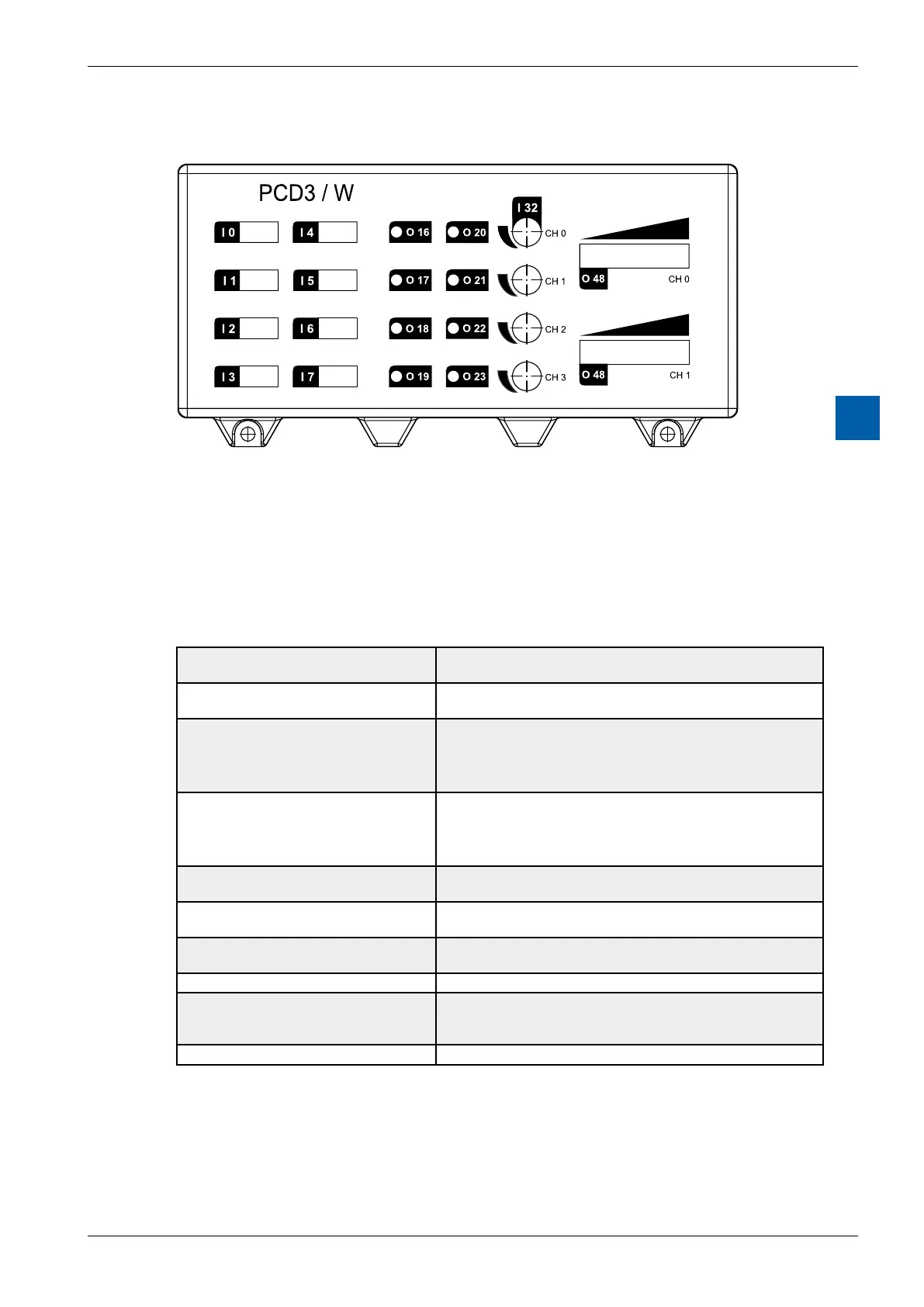

6.18.1 PCD3.S100 Workshop simulator unit
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
(W400)
(W400)
(W2x0)
PCD3.S100
orkshop
The PCD3.S100 workshop simulator unit is only designed for use in workshops
and training courses.
It does not meet the requirements of general applications: it is not approved or
calibrated, there are no thorough tests of the mechanical and electrical properties,
and no guarantees regarding availability or repair.
Technical data
Digital inputs: 8 switches to simulate digital inputs,
base address +0
Digital outputs: 8 LEDs to display the status of digital outputs,
base address +16
Analogue inputs: 4 potentiometers (~270° rotation) to simulate analogue
inputs, 10 bit resolution, base address +32
With PCD3.Mxxxx or Cxxx, use the PCD2/PCD3.W2x0
FBoxes from the standard or HeaVAC libraries
Analogue outputs: 2 LED histograms with 10 segments, to simulate analogue
outputs, base address +48
With PCD3.Mxxxx or Cxxx, use the PCD2/PCD3.W400
FBoxes from the standard or HeaVAC libraries
CongurationwhenusedwithPCD3.
T760 RIOs
1x PCD3.E110, 1x PCD3.A400, 1x PCD3.W200,
1x PCD3.W400
Internal current consumption:
(from +5 V bus)
max. 70 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: --
Compatibility: Use for workshops / training courses, mounted in PCD3.
Mxxxx, PCD3.C100, PCD3.C200 and
PCD3.T76x units
Terminals:
No connections for external wiring
