SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
7-4
PCD2.B160 & PCD3.B160
Hardware
7
7.2.3 General technical data on inputs and outputs
Internal current consumption:(from +5 V bus) 120 mA
Internal current consumption:(from V+ bus) 4 mA
External current consumption: 22 mA (for driver) at 24 V
(without load current)
Terminal Type K (Part No. 4 405 5048 0)
7.2.4 Technical data on inputs
Number of inputs 16, source operation, not isolated
(in groups of 4)
Input voltage typ. 24 VDC
Input current typ. 3 mA at 24 VDC
Input delay 8ms(default)or0.2ms(congurable)
Overvoltage protection Transient Suppressor Diode 39 V

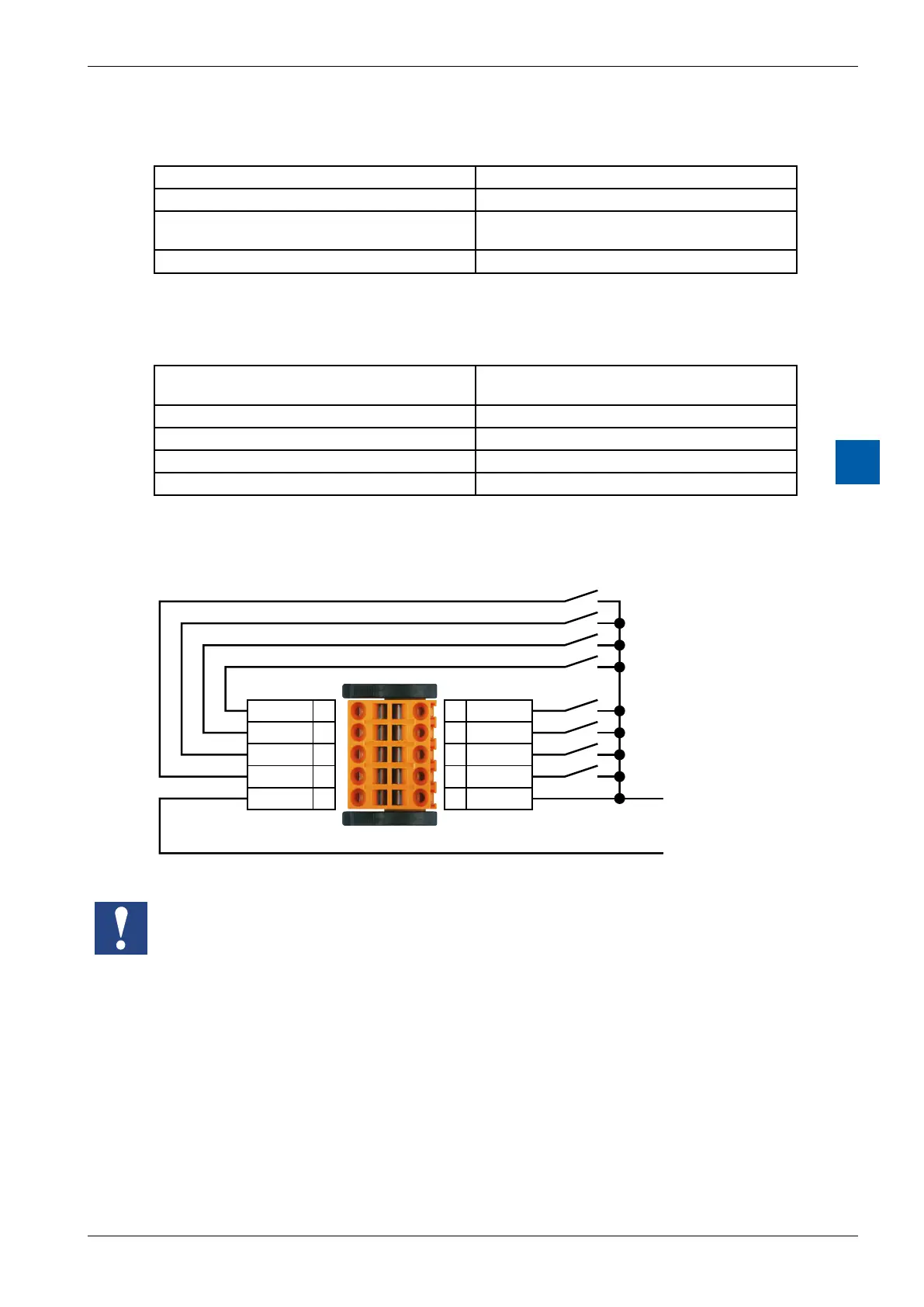

7.2.5 Input wiring
I/O_0
I/O_2
I/O_4
I/O_6
GND
0
2
4
6
8
1
3
5
7
9
I/O_1
I/O_3
I/O_5
I/O_7
24V
X0 / X1
0 V
24 V
The supply pins of each connector must be powered.
Be careful of the power polarity.
