Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
5-19
I/O modules PCD1|PCD2
PCD2.E500
5
5.3.1 PCD2.E500, 6 digital inputs for 115 - 230 VAC
Application
Module with 6 electrically isolated inputs for alternating current. The inputs are
set up for source operation and have one common “COM” terminal. Only the
positive half-wave of the alternating current is used.

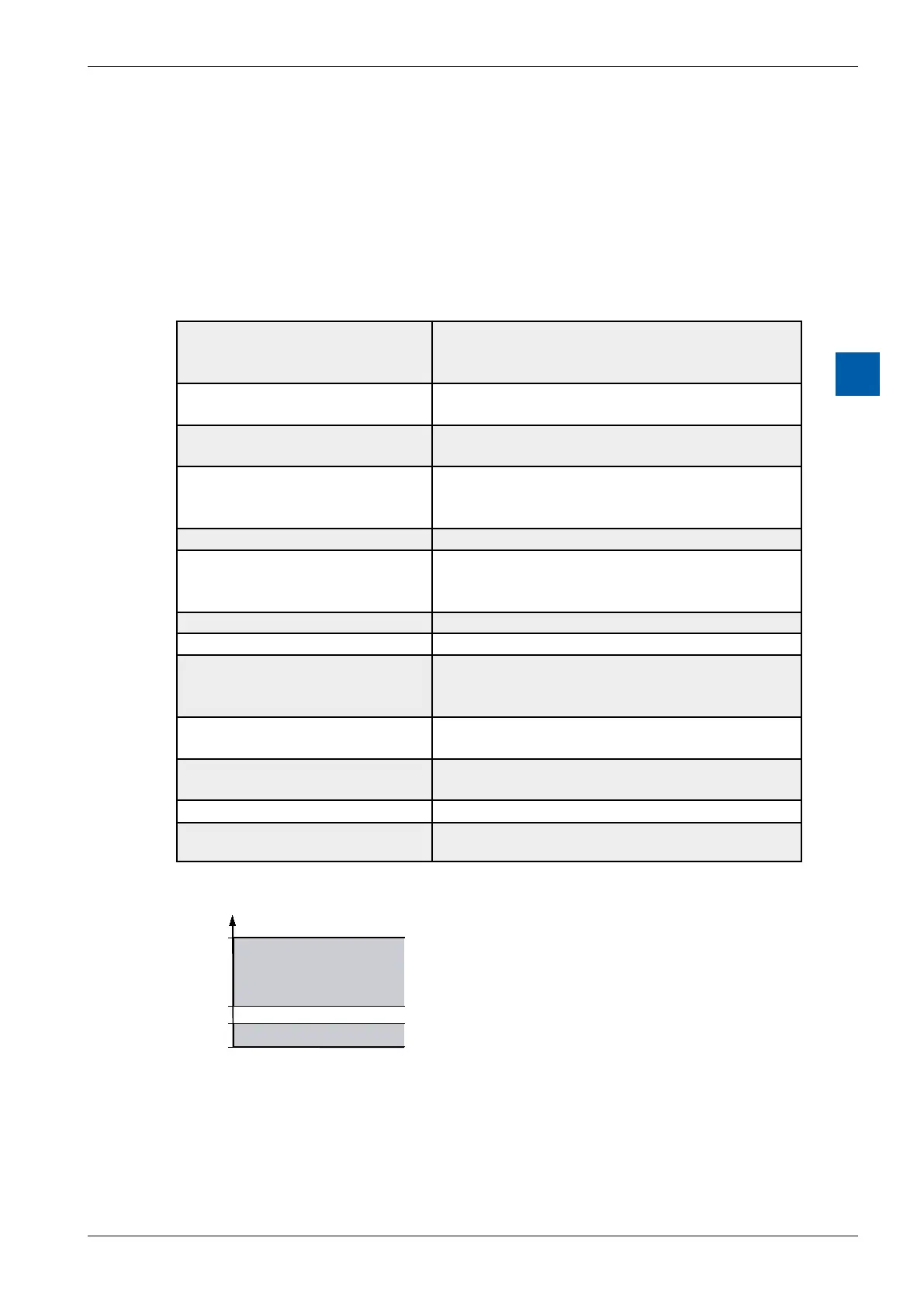

Technical data
Number of inputs 6 electrically isolated from the CPU,
Source operation,
all inputs to the module in the same phase
Input voltage 115/230 V 50/60 Hz, sinusoidal
(80 to 250 VAC)
Input current 115 VAC: 5 … 6mA(wattlesscurrent)
230 VAC: 10 … 12mA(wattlesscurrent)
Input delay
switch-on:
switch-o:
typically10ms;max.20ms
typically20ms;max.30ms
LED supplied directly from input current
Resistance to interference acc.
to IEC 801-4
4 kV under direct coupling
2 kV under capacitive coupling
(whole trunk group)
Electrical isolation voltage 2000 VAC, 1 min
Electrical isolation resistance 100 MOhm / 500 VDC
Optocoupler isolation voltage 2.5 kV
Galvanic separation of outputs to Saia PCD
®
.
The channels themselves not are separated.
Internal current consumption:
(from +5 V bus)
< 1 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption:
Terminals:
Pluggable 10-pole screw terminal block
(4 405 4847 0), for wires up to 1.5 mm²
Switchon/olevel:
1
0
250 V
AC
80 V
AC
40 V
AC
0 V
AC
