SBC PCD2 Series User Manual

Saia-Burgess Controls AG
Manual I/O-modules for PCD1 │ PCD2 series │ Document 27-600 – Release ENG09 │ 2019-05-01
8-17
PCD2.W380 & PCD3.W380
Module in PG5 environment
8
8.3.4.1.2.2 OutOfRange

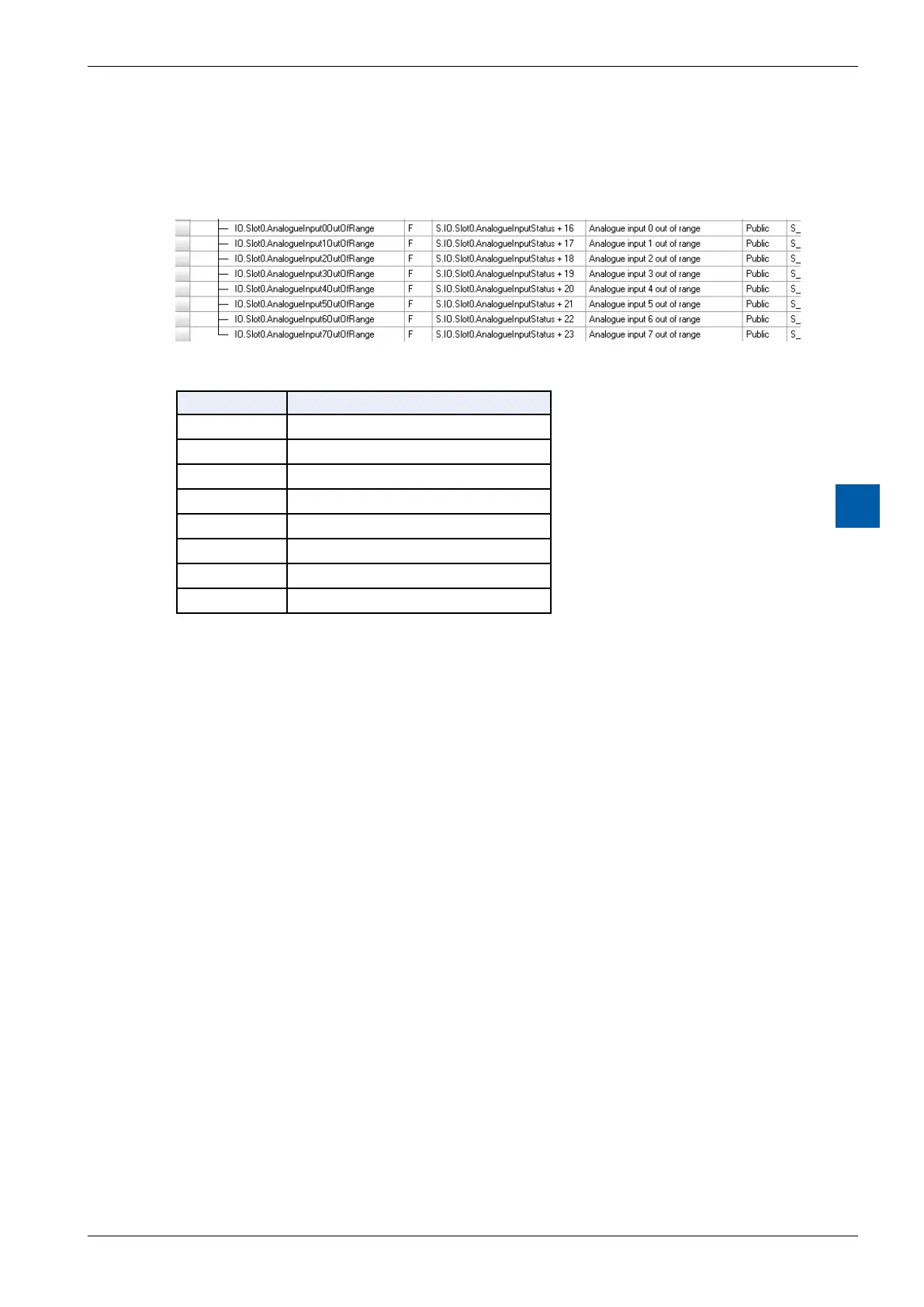

Oneagperchanneliscreatedtosignalizewhentheinputvaluesareoutof
range:
Ifthecongurationisdonein“registertype”,an8-bitregisteriscreated:
Bit Description
7 CH7 out of range
6 CH6 out of range
5 CH5 out of range
4 CH4 out of range
3 CH3 out of range
2 CH2 out of range
1 CH1 out of range
0 CH0 out of range
Table 7: Description of OutOfRange register
The“outofrange”statusbitmeansthattheconvertedvalueisoutofthespecied
range. The input value stay at the minimum or other maximum value allowed.
The mode “VOLTAGE” hasn’t out of range detection.
