PCD2.W380 & PCD3.W380
Module in PG5 environment
8
8.3.4.1.2.1 ModuleErrors
Withagtypeconguration,oneagperchanneliscreatedfortheprotectionstate
andthreeagsforCalibration,ADCandCongurationerrors.

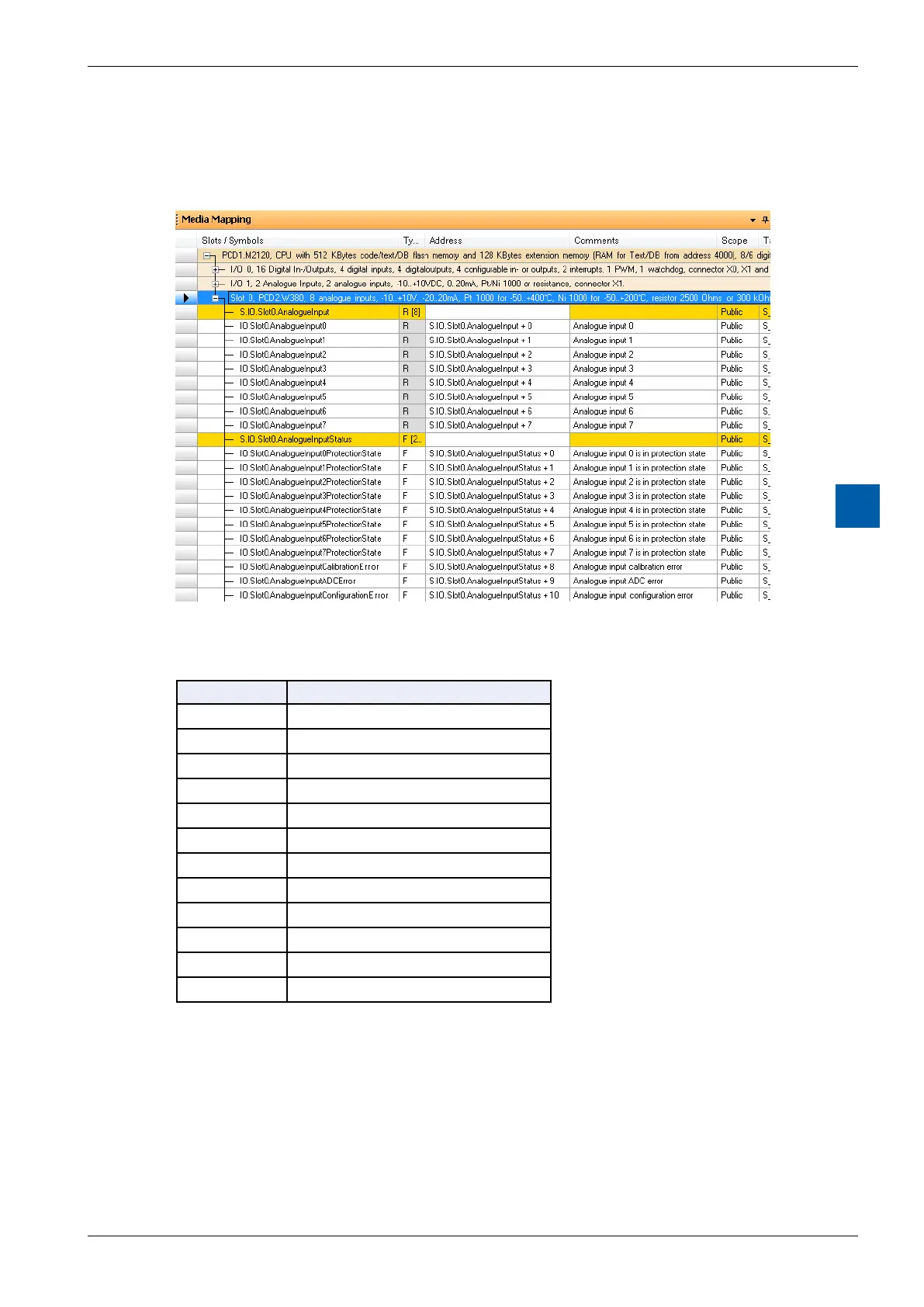

Figure 14: Flags for module errors
In register type, the following register is created:
Bit Description
11 .. 15 Reserved
10 Congurationerror
9 ADC error
8 Calibration error
7 CH7 protection
6 CH6 protection
5 CH5 protection
4 CH4 protection
3 CH3 protection
2 CH2 protection
1 CH1 protection
0 CH0 protection
Table 6: Description of ModuleErrors register
■ Congurationerror: Thedesiredinputscongurationisnotapplied
correctly.
■ ADC error: A/D converter doesn’t respond.
■ Calibration error: Module not calibrated.
■ Protection mode: An input channel has been automatically put in
protection mode, because the module detects a
situation which can cause important damages to
hardware.
