PCD2.G200
Preparing the PLC system
9
9.3.2.1.3 Conguring Analog Outputs
Eachanalogoutputcanbeconguredto0…10000mVor10bitvalues0…1923
ortoanyotheruserdenedrange:

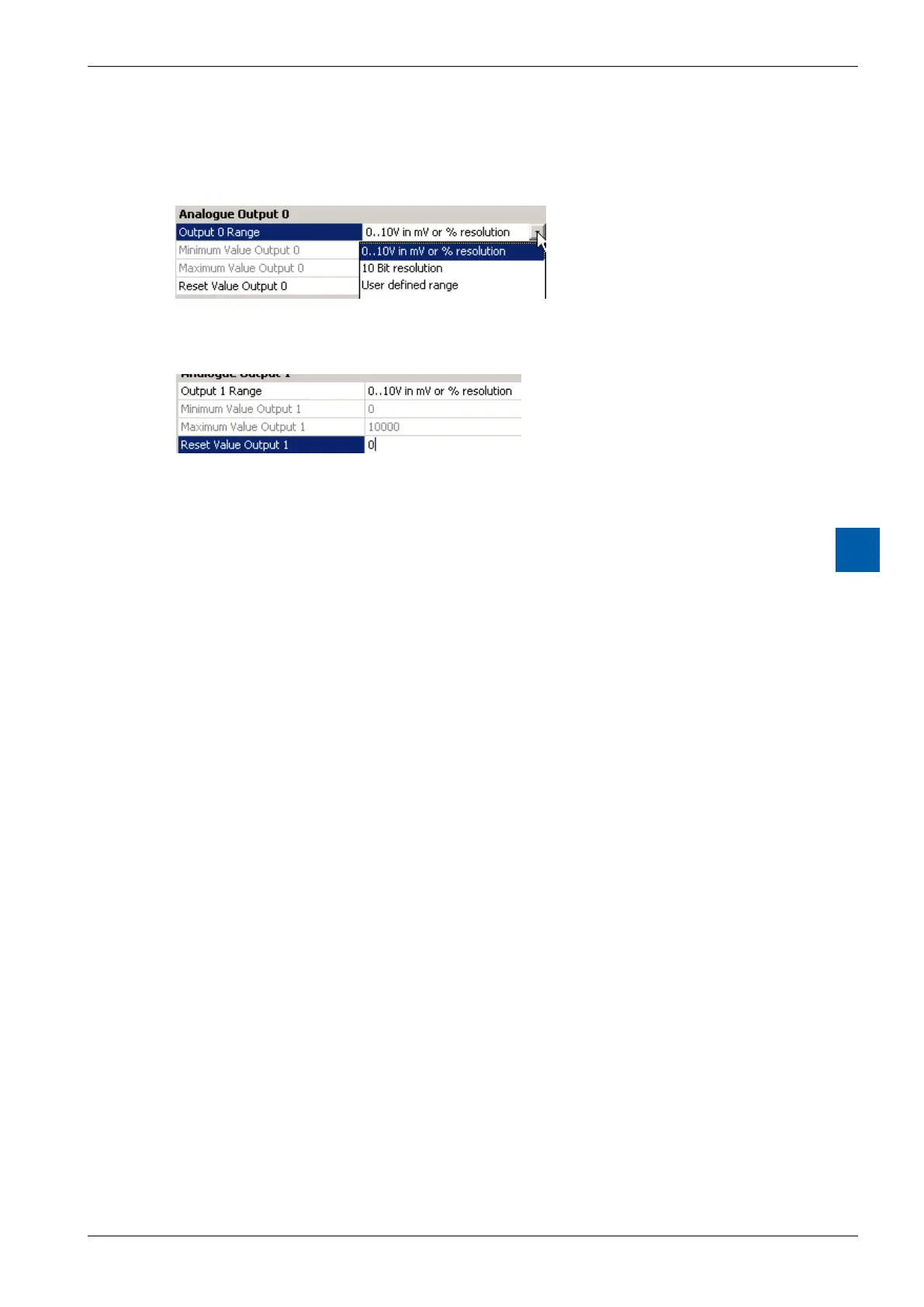

Figure 11: Range selection Analogues Outputs
Additionallyaresetvaluecanbespecied:
Figure 12: Reset value Analogues Outputs
9.3.2.1.4 Conguring Digital Inputs / Outputs
The digital Outputs can be addressed directly
on O0…O3 (+BaseAddress of the slot).
The digital Inputs can be addressed directly
on I4…I7 (+BaseAddress of the slot).
They can also be mapped like any standard digital module.
