I/O modules PCD1|PCD2
PCD2.W2x0
5

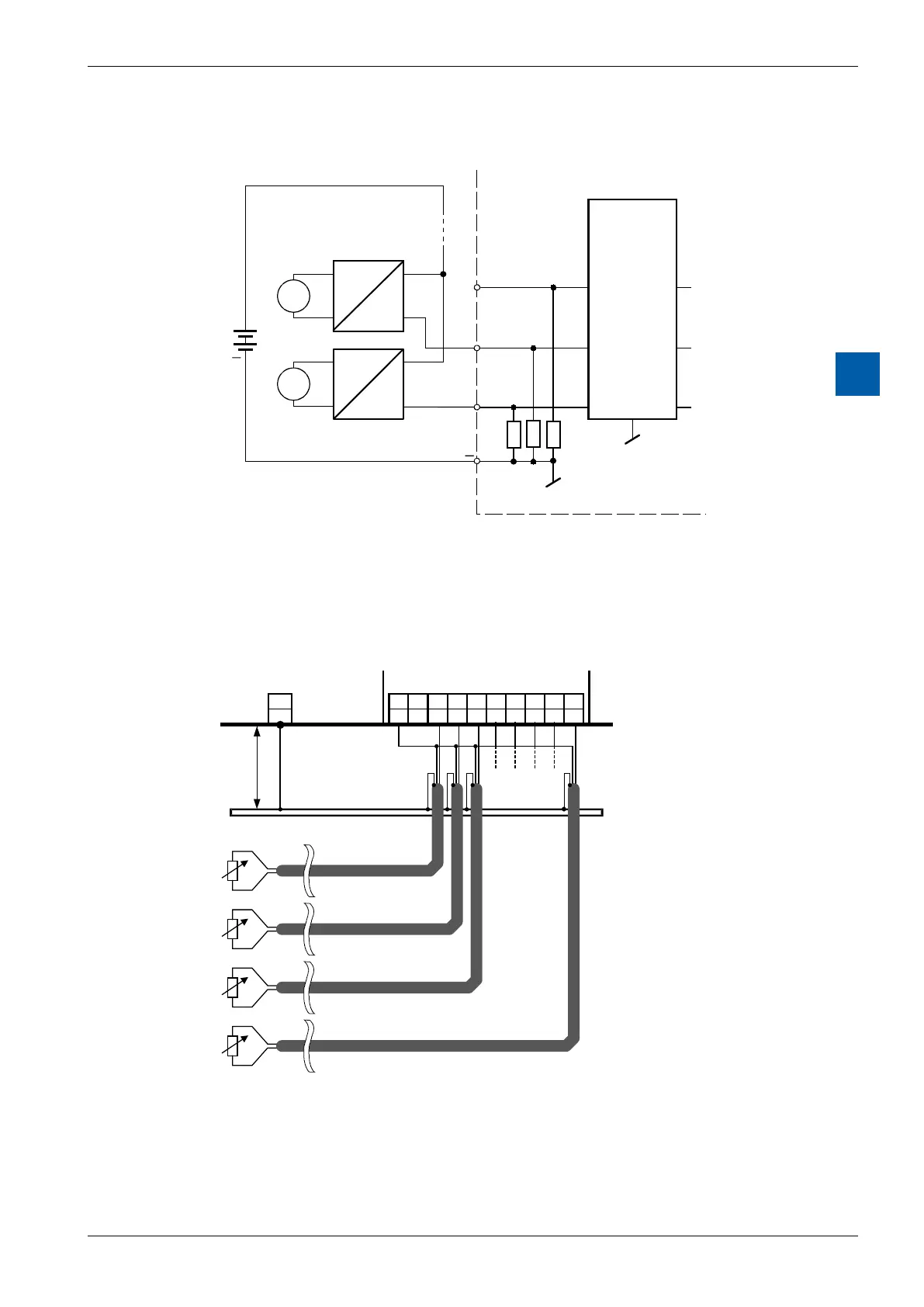

Connection concept PCD2.W210 for two-wire transducers
E1
E0
GND
PCD2.W210
4...20 mA*
0...20 mA
ϑ
υ
24 VDC
Tempera-
ture
Speed
Input filter
+
E2
*4...20 mA over user program
Two-wiretransducers(0..20mAand4 … 20mAtransmitters)needa24VDC sup-
ply in the measuring trunk.
Connection concept PCD3.W220 Pt1000 / Ni1000
Connection concept PCD3.W220Z02 NTC10
-
9 8 7 6 5 4 3 2 1 0
- E7 E6 E5 E4 E3 E2 E1 E0
PGND
PCD2/3.W220 Pt/Ni 1000
Earthing bar
Shield
Resistance
of
measurement
Resistance
of
measurement
Resistance
of
measurement
Resistance
of
measurement
Shield
Shield
Shield
max. 25 cm min. 2.5 mm2
Power PCD
