PCD2.W2x0
5

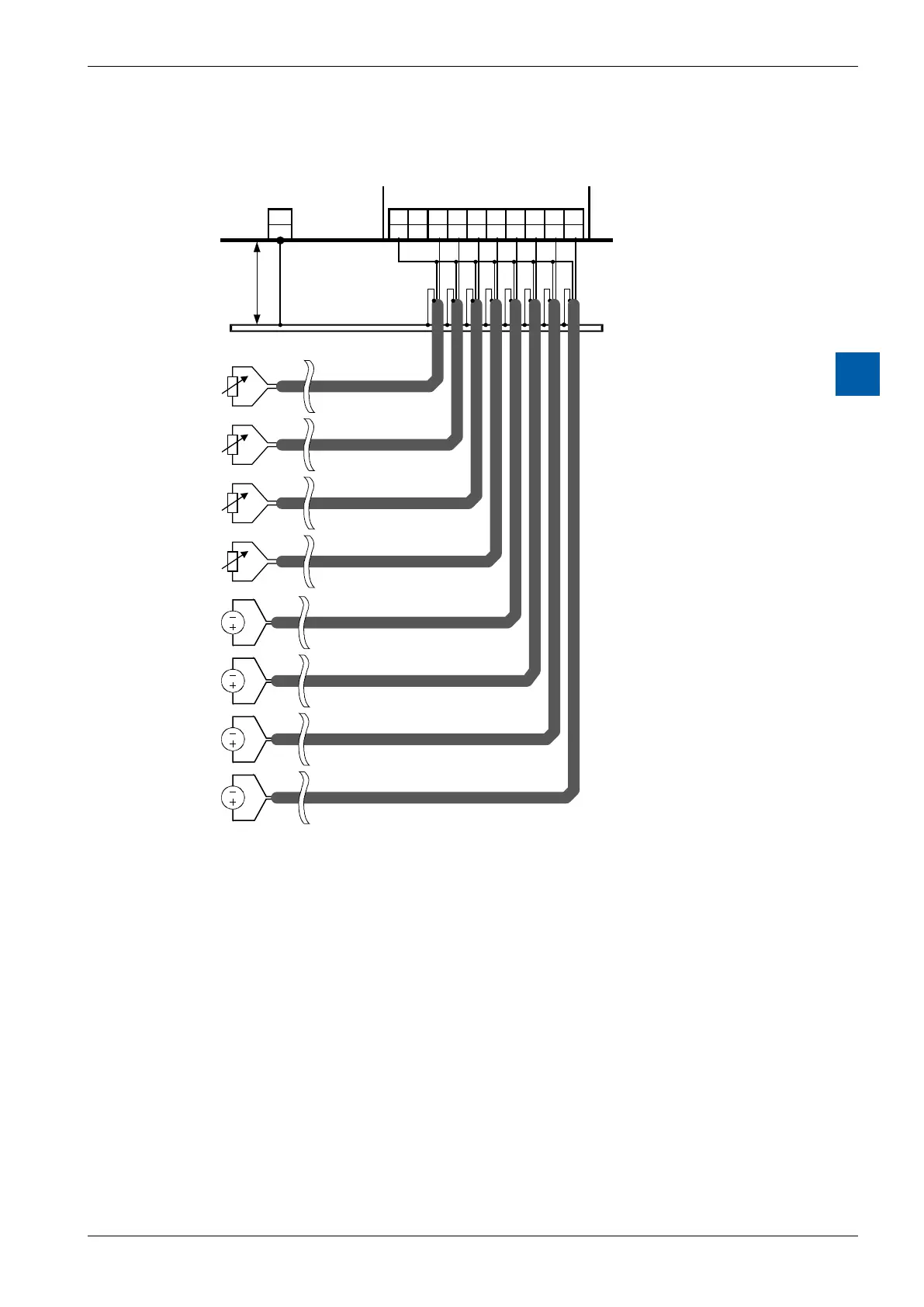

Connection concept PCD2.W220Z12
4 × 0…10 V and 4 × Pt1000 / Ni1000
-
9 8 7 6 5 4 3 2 1 0
- E7 E6 E5 E4 E3 E2 E1 E0
PGND
PCD2/3.W220Z12
Earthing bar
Shield
Resistance
of
measurement
Resistance
of
measurement
Resistance
of
measurement
Resistance
of
measurement
Shield
Shield
Shield
Shield
Signal
source
0…10 V
Signal
source
0…10 V
Signal
source
0…10 V
Signal
source
0…10 V
Shield
Shield
Shield
Power PCD
max. 25 cm min. 2.5 mm2
