PCD2.W4x0
5

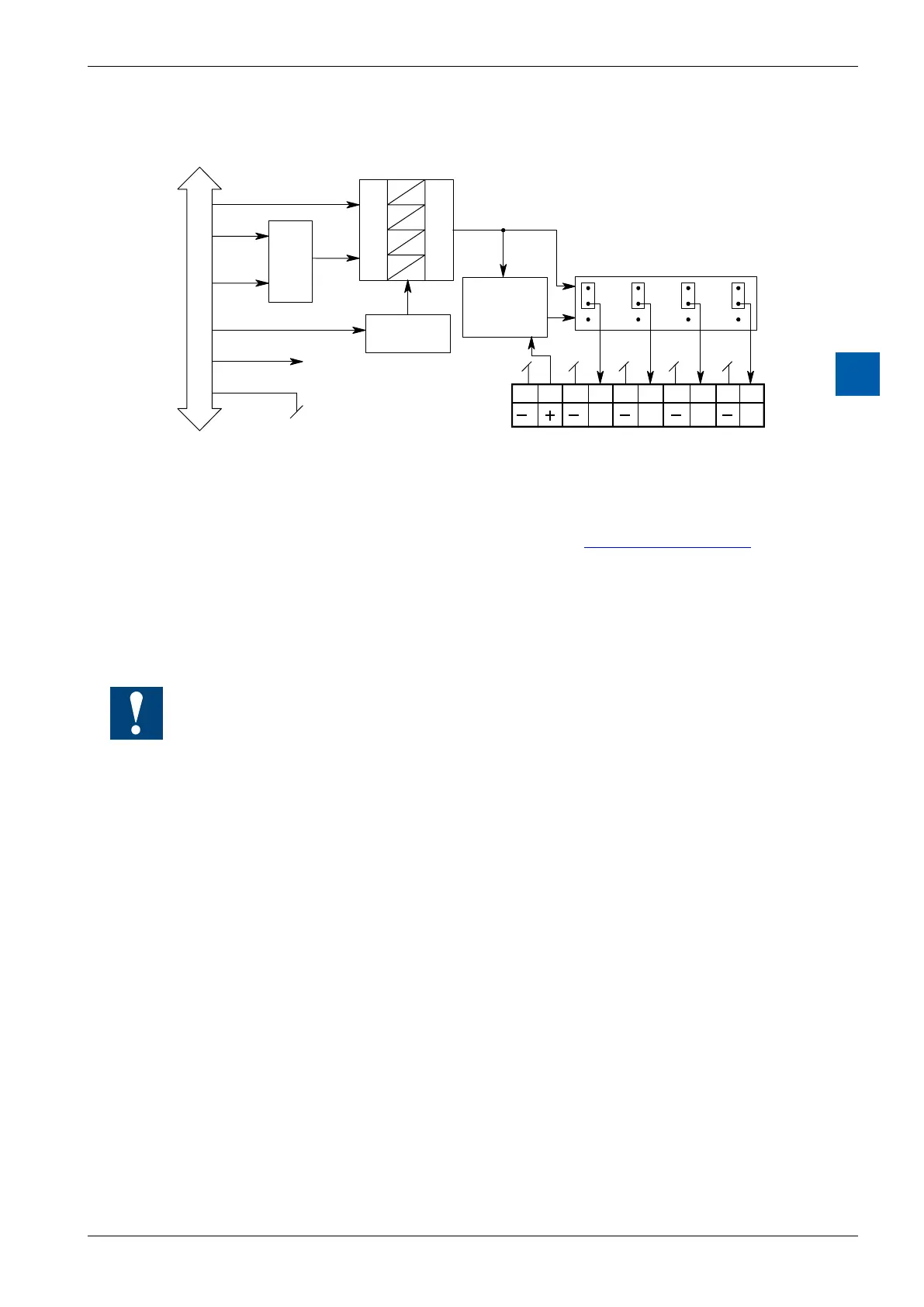

Block diagram
D
A
D
A
D
A
D
A
2
3
V
C
9 8 7 6 5 4 3 2 1 0
A0 A1 A2 A3
V
C
0
1
I/O Bus
PCD Bus
Reference
Voltage
DATA
WRITE
ADDR
JUMPER J2
24 V
DC
VOLTAGE
CONTROLLED
CURRENT
SOURCE
Programming
Classic: Programming examples for the PCD2.W4x0 can be found in a sepa-
rate manual and on the TCS Support site (www.sbc-support.com +
getting started).
xx7: thermwarewritesthevaluesaccordingtotheconguration(I/O
Builder)
Watchdog: This module cannot be used on the base address 240 (or 496 for the
PCD2.M17x), because it would interact with the watchdog, and would cause a
malfunction.
For details, please refer to the section A4 “Hardware Watchdog”, which describes
the correct use of the watchdog in conjunction with PCD components.
