I/O modules PCD1|PCD2
PCD2.W4x0
5

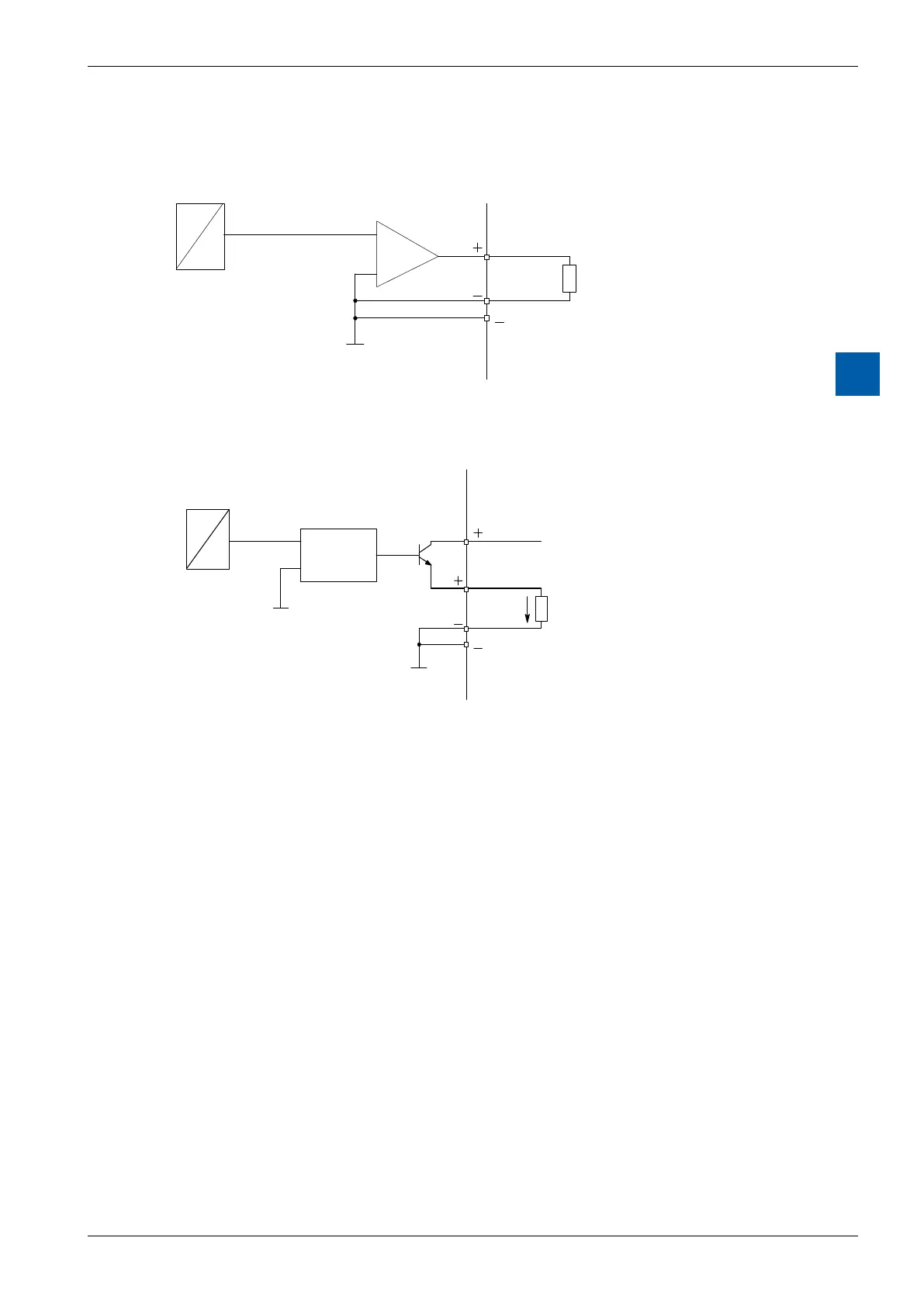

Connection concept
Connection for 0 … 10 V
4 (A2)
D
A
5
U
R

3 k

Connection for 0 … 20 mA or 4 … 20 mA
(selectable with jumpers on type PCD2.W410)
4 (A2)
5
I
R = 0...500 Ω
D
A
VOLTAGE
CONTROLLED
CURRENT
SOURCE
+ 24 V DC
An external 24 VDC
supply is required for
current outputs
