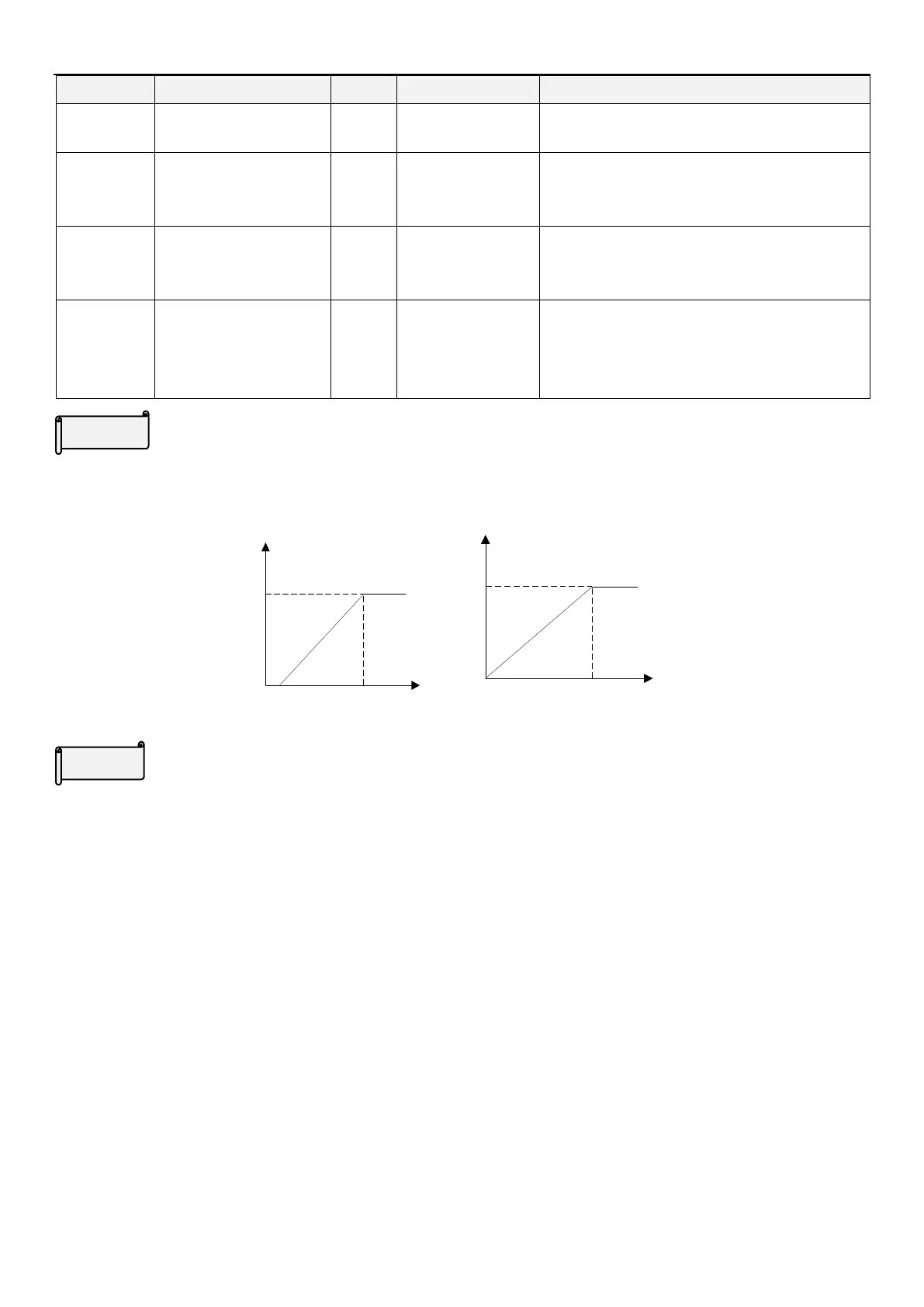

Shihlin electric SC3 Series User Manual

Analog input and output parameter group 02
PARAMETER DESCRIPTION 81
Parameter
Name
Default
Setting Range
Content
02-26
P.199
Terminal 3-5 maximum
input current/ voltage
10.00V
0～20.00mA/V
---
02-27
P.196
Percentage corresponds
to terminal 3-5 minimum
input current/ voltage
0.0%
0%～100.0%
---
02-28
P.197
Percentage corresponds
to terminal 3-5 maximum
input current/ voltage
100.0%
0%～100.0%
---
02-61
P.141
Polarity of percentage
corresponds to terminal
3-5 current/ voltage
signal
0
0~11
---
Terminal 3-5 signal selection, maximum input

The setting value of 02-21 (P.39) is the target frequency value of the inverter when the input signal of terminal 3-5
is at 20mA (5V/10V).
4mA 20mA
Target frequency
02-21
P.39
Terminal 3-5
current signal
02-20P.17 = 0
0V 5V
Target frequency
02-21
P.39
Terminal 3-5
voltage signal
02-20P.17 = 1,2
10V0V
Terminal 3-5 input signal processing

Parameters above define the relationship between analog input voltage and set value in analog input. When
analog input voltage exceeds maximum or minimum range of the set value, the excess part will be calculated as
maximum and minimum input.

There are two setting steps when setting maximum and minimum percentage:
1) If users want to adjust the analog input to correspond with a certain type of proportional relationship, Adjust
the analog input first and then set the corresponding proportional parameter. Inverter will calculate it by itself,
don’t need to set the voltage parameter (refer to Example 1.1).
2) If users skip the adjustment of analog input and set proportional relationship directly, first set proportional
parameter then set voltage parameters (refer to Example 1.2).
Example 1.1: User adjusts analog input voltage to minimum value A and sets parameter 02-27(P.196) adjusts
input voltage to maximum value B, and sets parameter 02-28(P.197) . As shown below:
Setting
Setting
