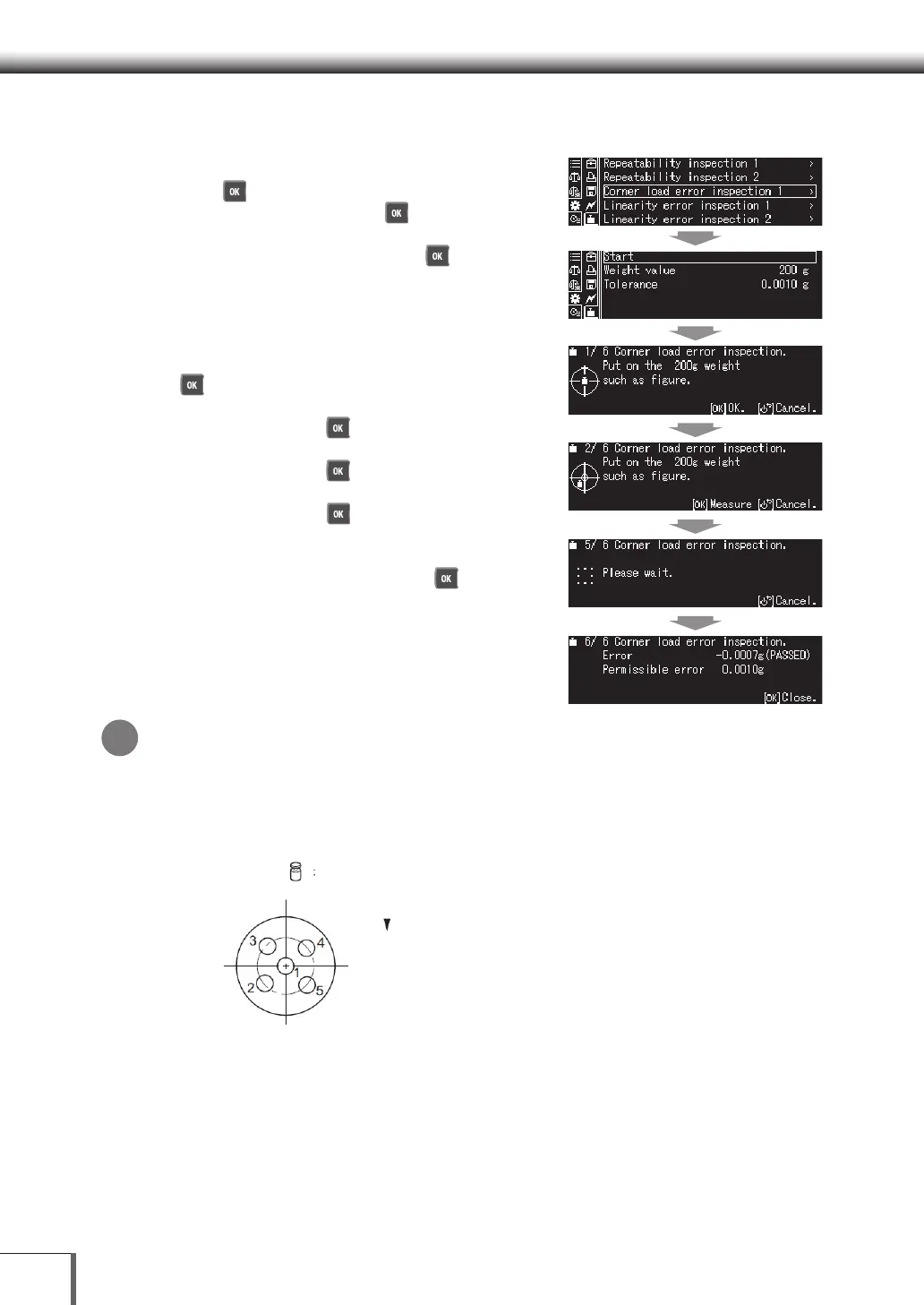

Perform the corner load error
inspection
(1) Select [Corner load error inspection 1], and then
press [ OK].
(2) Press [Start], and then press [ OK].
(3) Place the specified weight in the position indicated
(center of the pan), and then press [ OK].
A message stating [Please wait.] will be displayed.
Proceed to the following when measuring is
complete.
(4) Place the specified weight in the position indicated
(left-hand side of the pan), and then press
[ OK].
(5) Place the weight on the back left-hand side of the
pan, and then press [ OK].
(6) Place the weight on the back right-hand side of the
pan, and then press [ OK].
(7) Place the weight on the front right-hand side of the
pan, and then press [ OK].
(8) Check the results of the inspection when
[Completed] for (6) has been displayed.
(9) Remove the weight, and then press [ OK].
Position for placing the weight
The position for placing the weight will be indicated on the display panel. Place the weight in the
specified position.
In the case of round pan, place the weight on the position of 1/2 radius from the center.
Example:
Location for weight placement
Sequence
1. Center
2. Front left-hand side
3. Back left-hand side
4. Back right-hand side
5. Front right-hand side
*
