Operating instructions Distance measuring device DL100 – CANopen®
Electrical connection
38 © SICK AG • Subject to change without notice • 8015416/ZPN2/2017-09-08
1
2
4
3
1
2
4
3
90
90

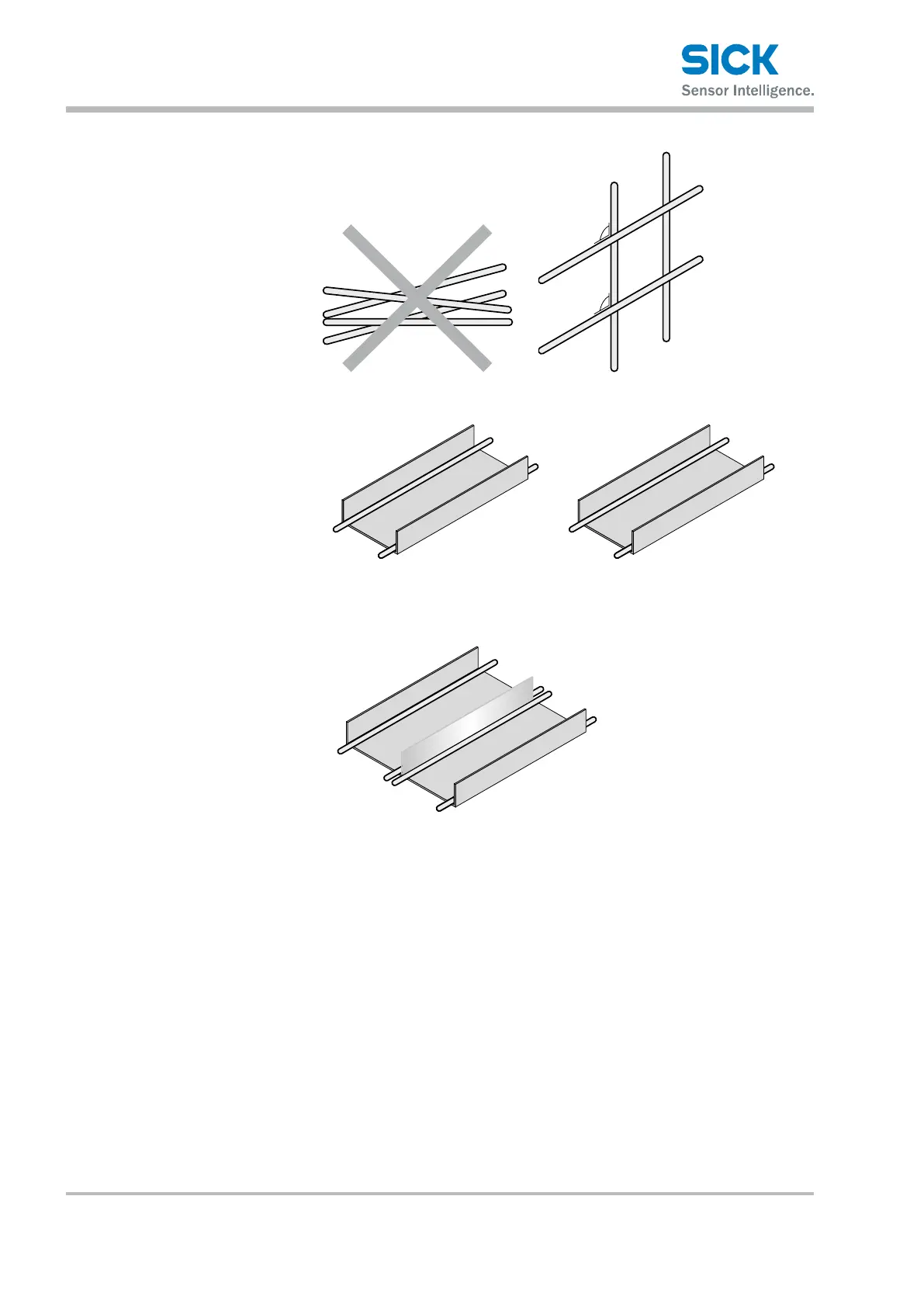

Fig. 17: Cross lines at a right angle
1
2
3
4
Fig. 18: Ideal placement –
Place lines in dierent cable channels
1
2
3
4
Fig. 19: Alternative installation – separate lines by metallic separation
1 Cables very sensitive to interference like analog measuring lines
2 Cables sensitive to interference, such as sensor cables, communication sig-
nals, bus signals
3 Cables that are sources of interference, such as control cables for inductive
loads, motor brakes
4 Cables that are strong sources of interference, such as frequency converter
output cables, supply to welding plants; power cables
