Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 169
DC8-037-2.02, Edition 10.2017

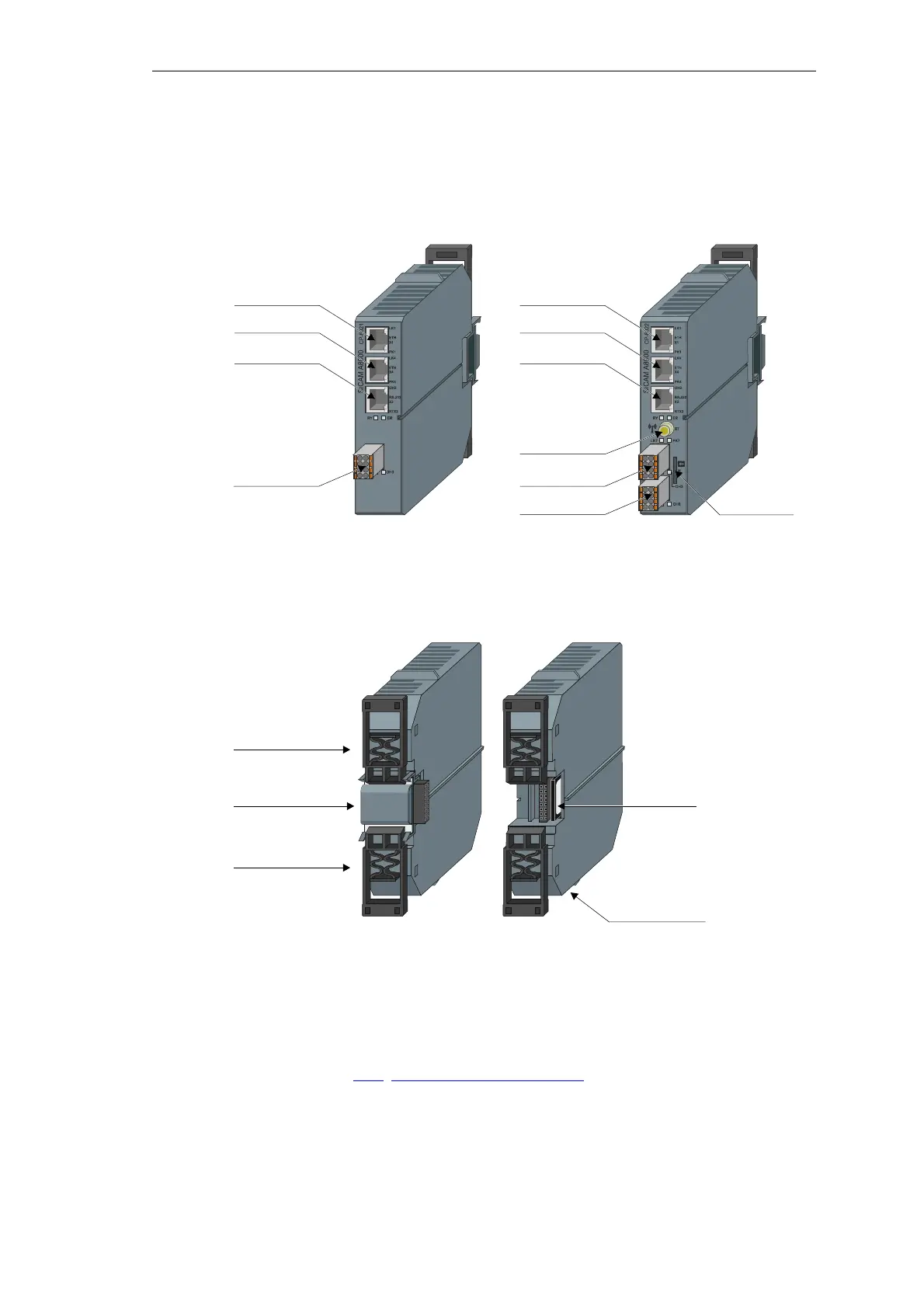

6.1.2 CP-802x
The electrical components of the device are housed in a plastic casing with the dimensions
30 mm x 132 mm x 124 mm (W x H x D). The casing is designed for assembly on a DIN rail.
At the front are the LED display elements, the communication interfaces and a slot for the SIM
card.
At the back are the locking hooks, the bus connector and below the slot for the SD card.
6.1.2.1 Locking Hook
The device is locked onto the DIN rail and also removed again using the locking hook.
Details see section 6.4.2, Mounting of the Master Module.
RS-232
RS-485RS-485
RS-232
RJ45 Ethernet
RJ45 Ethernet
GPRS
Locking Hook
SD Card
Bus connector
View without
bus connector
Locking Hook
