Engineering via SICAM WEB
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 343
DC8-037-2.02, Edition 10.2017
9.1.7.4 Settings of the Messages
The settings of the messages reside in the directory tree under
SICAM A8000 CP-80xx | Master module | Communication | PRE<0…3> | IEC60870-5-
101/104
(the checkbox SHOW ALL PARAMETERS must be activated).
These settings are independent on the communication type and exist on the Master Module
individually for each protocol element:
• Transmission with/without time tag
• Variable elements of the message
• Command time monitoring
• Monitoring ACTCON

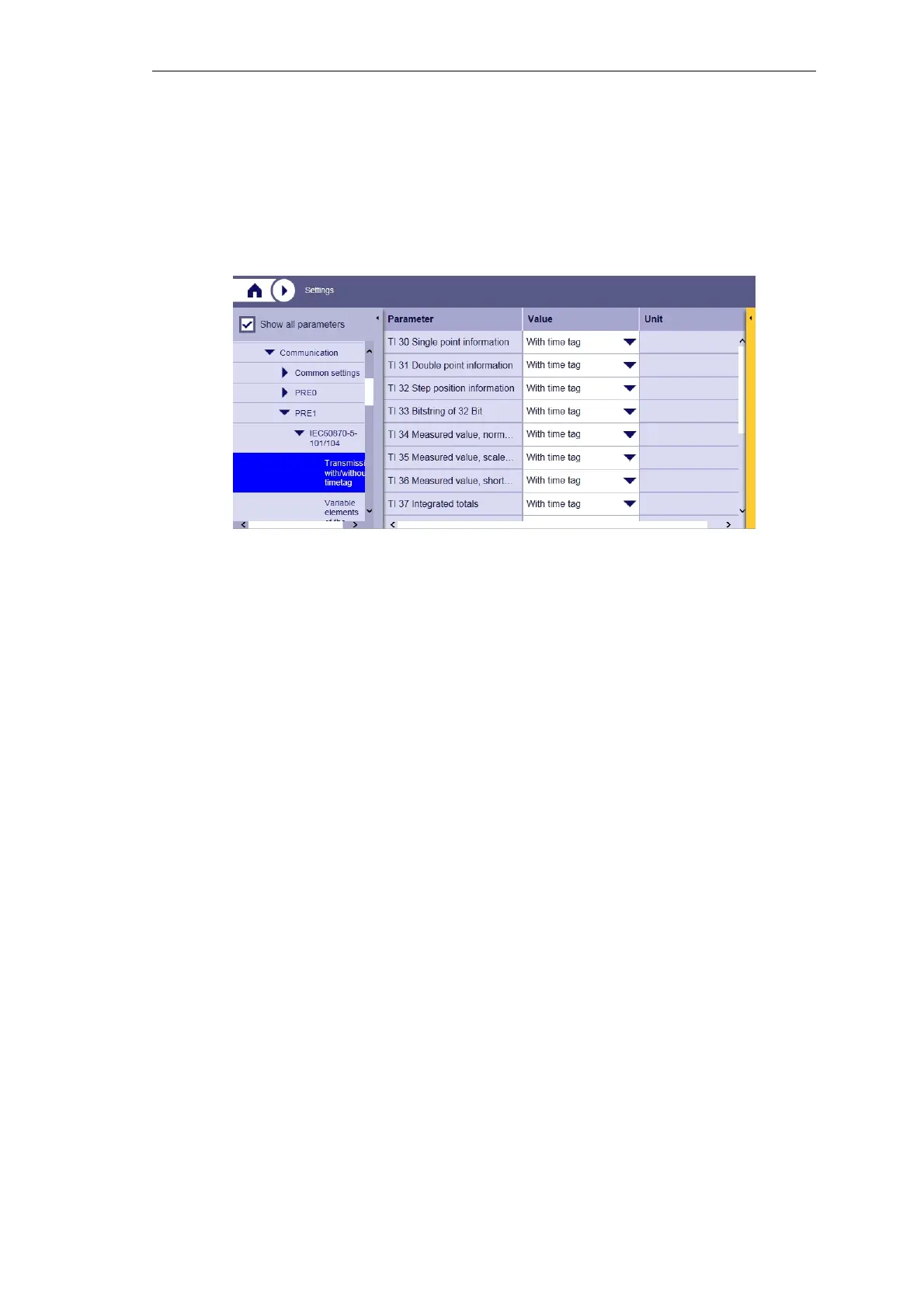

Transmission with/without time tag
The information objects supported by CP-8000/CP-802x can be transmitted to the control cen-
ter either with time tag or without time tag. The definition happens selectively for each type
identification.
You find the parameters thereto in the subdirectory Transmission with/without time tag.
Variable elements of the message
For the communication with different systems the byte numbers of the identifiers in the mes-
sage header can be parameterized.
The settings on the Master Module reside in the subdirectory under Varia-
ble elements of the message.
You find the information thereto in the manual SICAM RTUs Common Functions System and
Basic System Elements, Appendix "Message Formats".
The settings on the protocol element reside in the directory tree under
SICAM A8000 CP-80xx | Master module | PRE <0…3>: <protocol > | Advanced settings |
IEC 60870-5-101 (applies only for point-to-point traffic and multi-point traffic).
You find the information thereto in the manual SICAM RTUs Common Functions Protocol El-
ements, chapter "Multi-Point Traffic (UMP)", section "Communication according to
IEC 60870-5-101", "Data Acquisition by Polling (Station Interrogation)".
