7.7.1.1 Physical Connection
7.7.1.1.1 Serial Point-to-Point Connection
Engineering PC and CP-8000 are connected with a direct cable via the serial interface (X2).

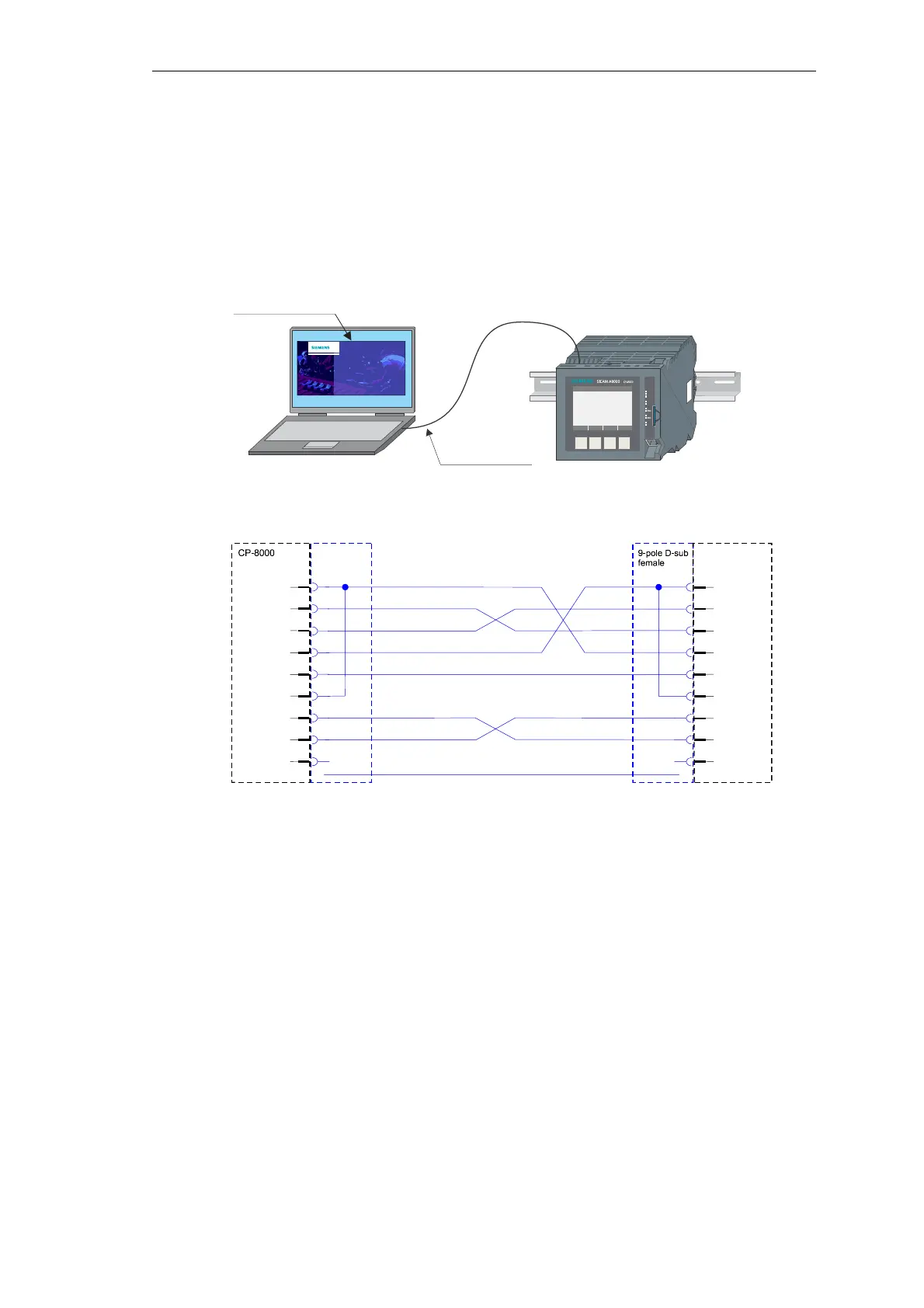

Wiring for Connection CP-8000 – PC (Direct Cable)
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-2 32
OH2
RS-4 85
OH3
ETH
LK4
PK4
SD
X4
TOOLBOX II
Revision:
License Pak:
Version 5 | Siemens AG
CP-8000
SICAM TOOLBOX II
Direct cable
2x D-sub
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
X2:1
X2:2
X2:3
X2:4
X2:5
X2:6
X2:7
X2:8
X2:9
shield
shield
Engineering
PC
9-pole D-sub
female
