9.1.4 Configuration of Optional Modules
• Menu Home | Hardware & Protocols
9.1.4.1 Overview
In addition to the Master Module, you can equip the following optional system elements:
• Protocol elements for the communication
Hardware (integrated on the Master Module) + loadable firmware
• I/O Master Module for peripheral functions
Hardware (integrated on the Master Module) + loadable firmware
─ internal I/O Modules (only CP-8000) are detected automatically
─ external I/O Modules are detected automatically
The protocol elements and I/O Modules supported by CP-8000/CP-802x are listed in chapter
2.1.3, Protocol Elements and 2.1.5, I/O Modules.
Prerequisite for the equipment of additional system elements is that the corresponding
Firmwares are loaded in the target device. You find the instruction thereto in section 9.3.7,
Update Firmware.
The hardware configuration overview resides in the directory tree under
SICAM A8000 CP-80xx.

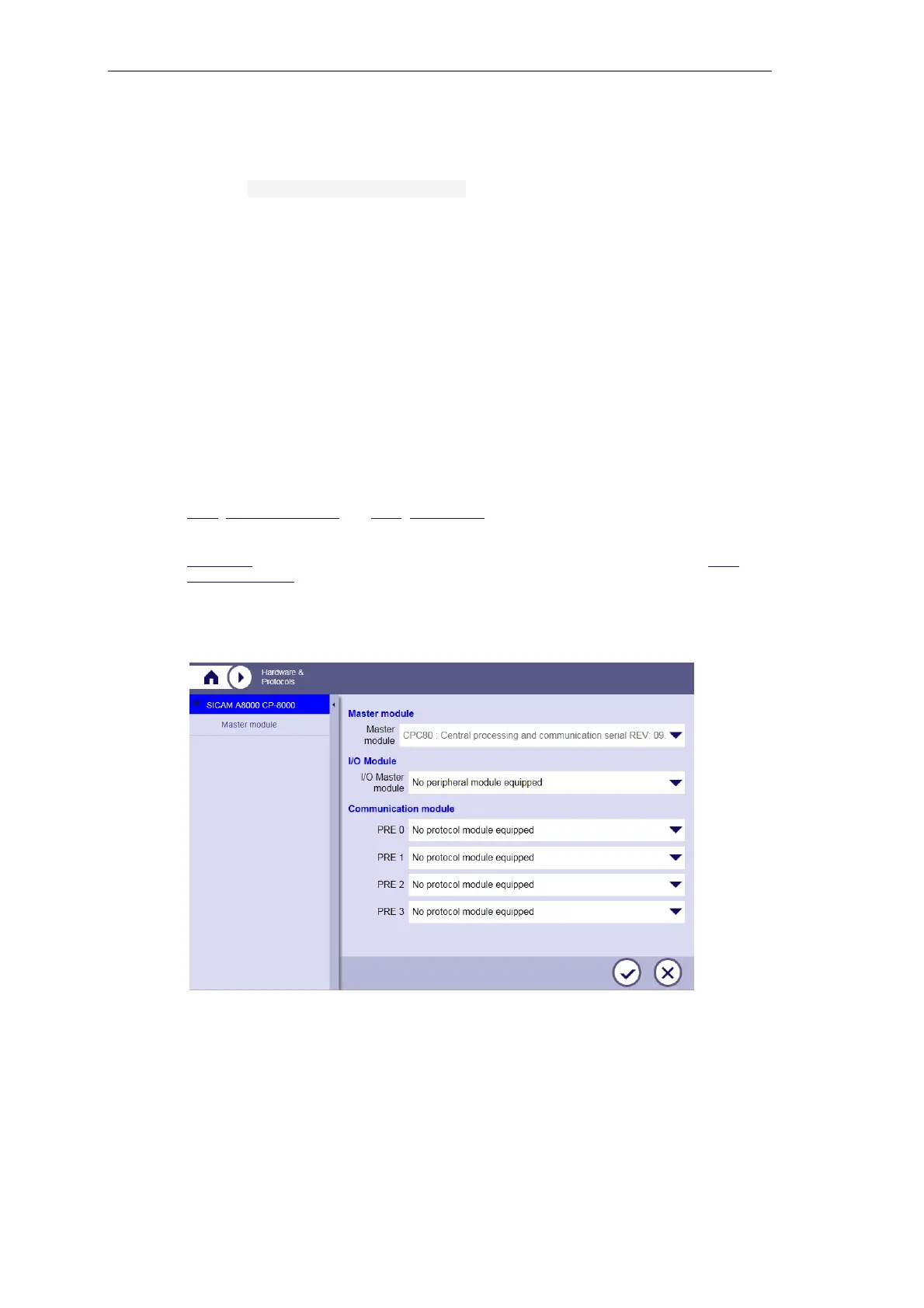

This page shows an overview of the equipped system elements:
• Master module
• I/O Master module
─ I/O Modules
• Communication module (protocol elements)
