Service
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 499
DC8-037-2.02, Edition 10.2017
11.3.2.2 Diagnosis Overview
CP-8000/CP-802x contains extensive diagnosis functions for monitoring the system. Since the
firmware executes the appropriate error monitoring routines automatically, no settings by the
user are necessary thereto.

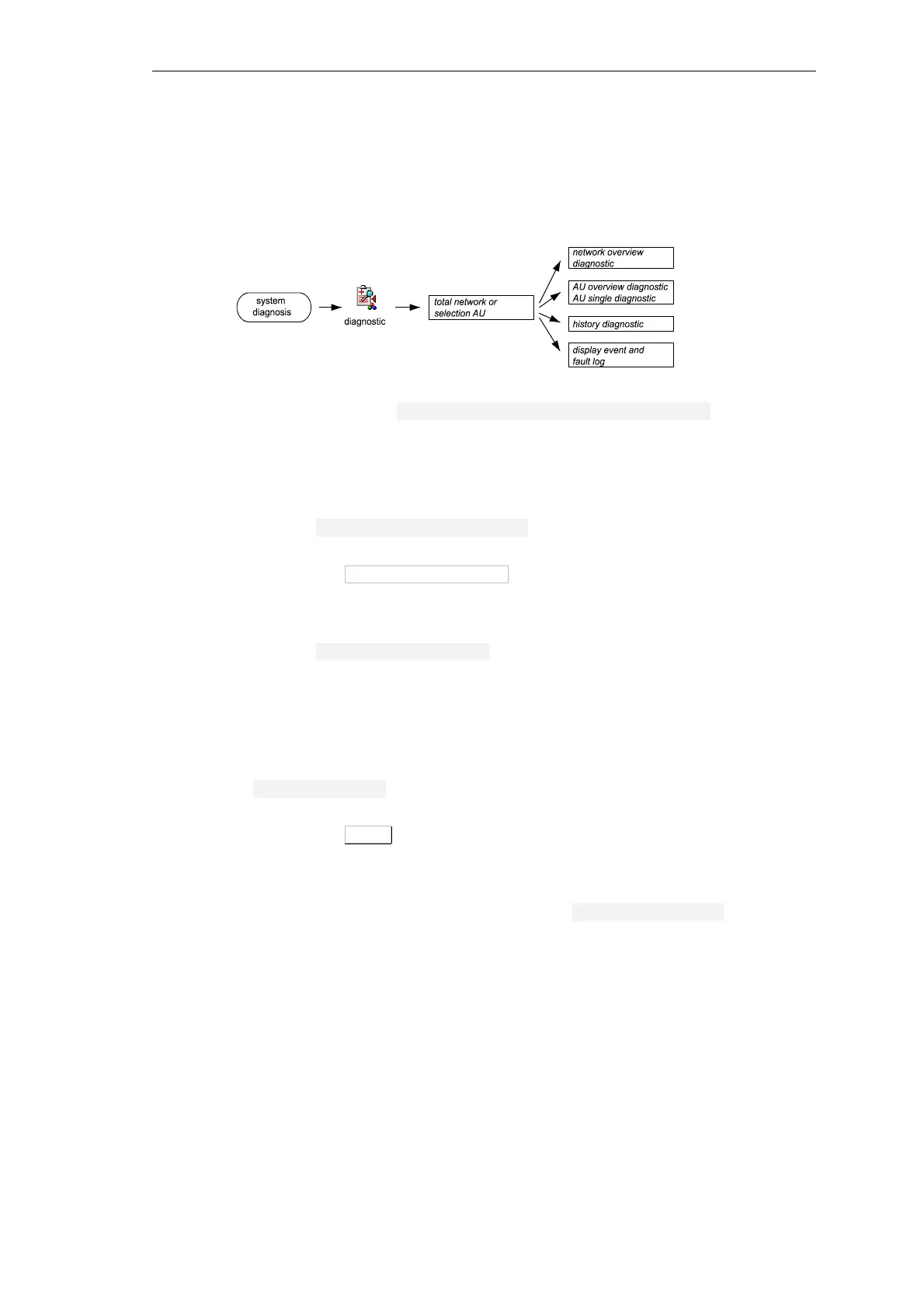

With the tool "Diagnostic" (TOOLBOX II | Service Programs | Diagnostic), system states
and error information items can be read, and printed out if required.
The following functions are available:
• Network overview diagnosis
The error entries of all automation units in the network are output in a report window via
the menu Network overview diagnostic (sum information).
• Acknowledge network
Via the button Acknowledge network , the error entries of all automation units located
in the network are deleted, insofar as they are no longer present.
• AU overview diagnosis
The error entries of all automation units in the network are output in a report window via
the menu AU overview diagnostic (sum information for each system element able to
report).
• AU individual diagnosis
The error entries of each system element in the AU are output in a report window via dou-
ble-click on the respective AU.
• History Diagnosis
The time dependent course of error entries is output in a report window via the menu
History Diagnosis .
• Clear history diagnosis
Via the button Clear , all error entries located in the history diagnostis are deleted, inso-
far as they are no longer present.
• Automatic diagnosis
An overview of the error entries of all automation units in a network as well as their system
elements is output in a report window via the menu Automatic diagnosis . The outputs
are structured hierarchically in
─ Network overview diagnosis
─ AU overview diagnosis
─ AU single diagnosis
─ History (if preset)
