Engineering via SICAM WEB
340 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
9.1.7.2 Physical Interface for the Communication
CP-8000/CP-802x can communicate simultaneously via multiple physical interfaces. For each
configured protocol element an interface must be assigned exclusively.

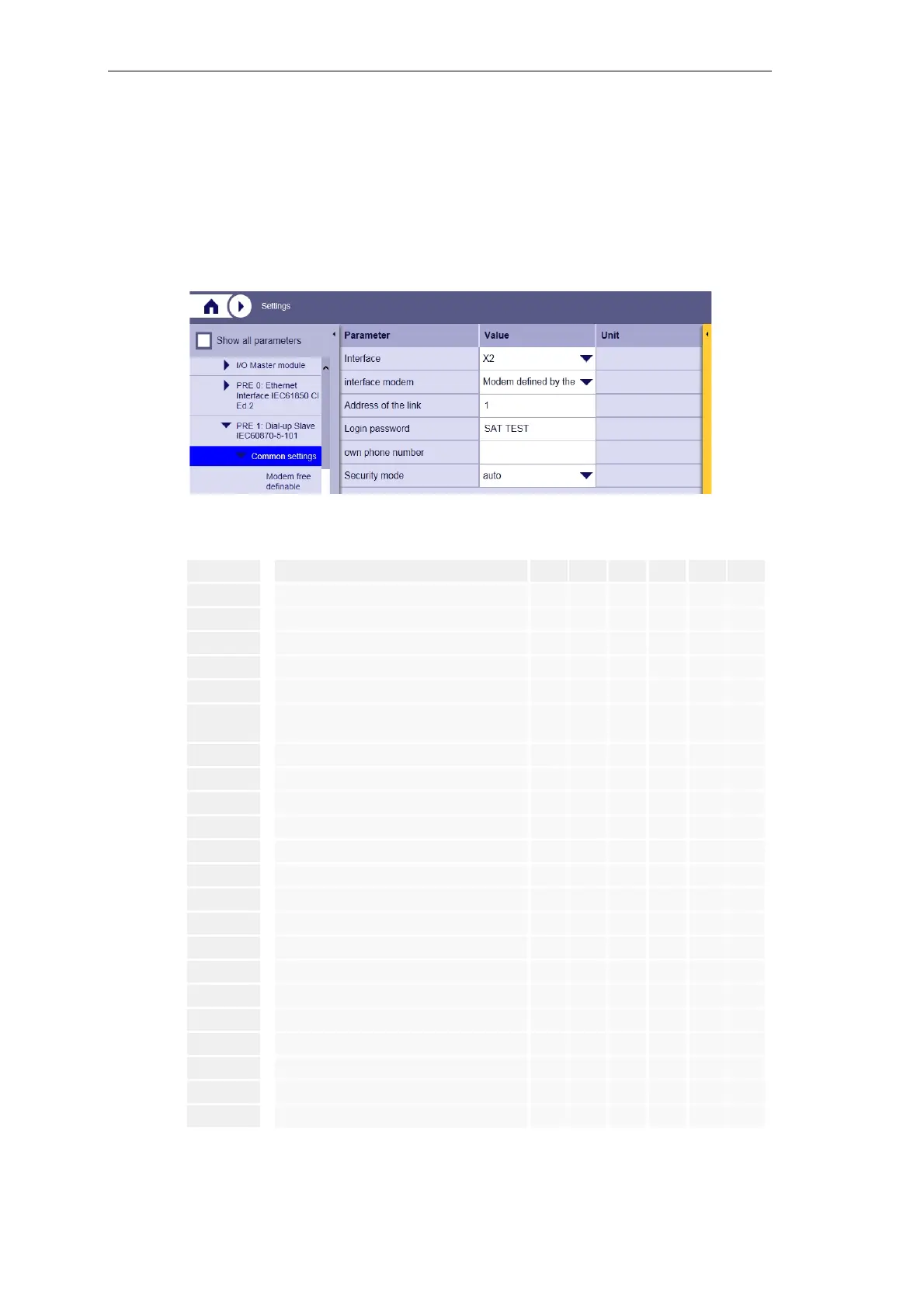

The assignment of the interface for each protocol element resides in the directory tree under
SICAM A8000 CP-80xx | Master module | PRE <0…3>: <protocol> | Common settings.
Equipable protocols can be assigned with the parameter Interface:
Firmware Protocol name X1 X2 X3 X4 X6 X7
103MT0 IEC 60870-5-103 Master - ü ü - ü -
BPPT0 IEC 60870-5-101 point-to-point - ü ü
1)
- ü -
DIAST0 Dial-up traffic Slave - ü - - ü
3)
-
ET83 IEC 61850 Ed. 1 (Client, Server, GOOSE) ü
2)
- - ü
2)
- -
ET84 IEC 60870-5-104 ü
2)
- - ü
2)
- ü
ET85 IEC 61850 Ed. 2 (Client, Server, GOOSE),
Ed. 1 (Client)
ü
2)
- - ü
2)
- -
UMPMT0 IEC 60870-5-101 Master - ü ü - ü -
UMPST0 IEC 60870-5-101 Slave - ü ü - ü -
AGPMT0 AGP interfacing Master - ü ü - ü -
BMCUT0 Benning MCU ASCII protocol - ü ü
2)
- ü -
COUMT0 IEC 62056-21 (IEC 1107) Master - ü ü - ü -
DNPST0 DNP3 Slave - ü ü - ü -
DNPMT0 DNP3 Master - ü ü - ü -
DNPiT1 DNP3 TCP/IP Slave ü
2)
- - ü
2)
- -
DNPiT2 DNP3 TCP/IP Master ü
2)
- - ü
2)
- -
MODMT2 MODBUS RTU Master - ü ü - ü -
MODST0 MODBUS RTU Slave - ü ü - ü -
PCBST0 SAT SK 1703 PCMBA Slave - ü ü - ü -
RP5UT1 ABB RP570/571 Slave - ü ü - ü -
SMST0 ASCII protocol for SMS alerting - ü - - ü
3)
-
ST1ST0 Siemens SINAUT ST1 Slave - ü ü - ü -
TG8ST0 L&G Telegyr 800 Slave - ü ü - ü -
1)
only in RS-422 mode
2)
fixed if Mode of ethernet ports = 1 IP address (connected ports in switch mode)
3)
only in RS-232 mode
