System Overview
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 47
DC8-037-2.02, Edition 10.2017
2.2 Communication
2.2.1 Interfaces

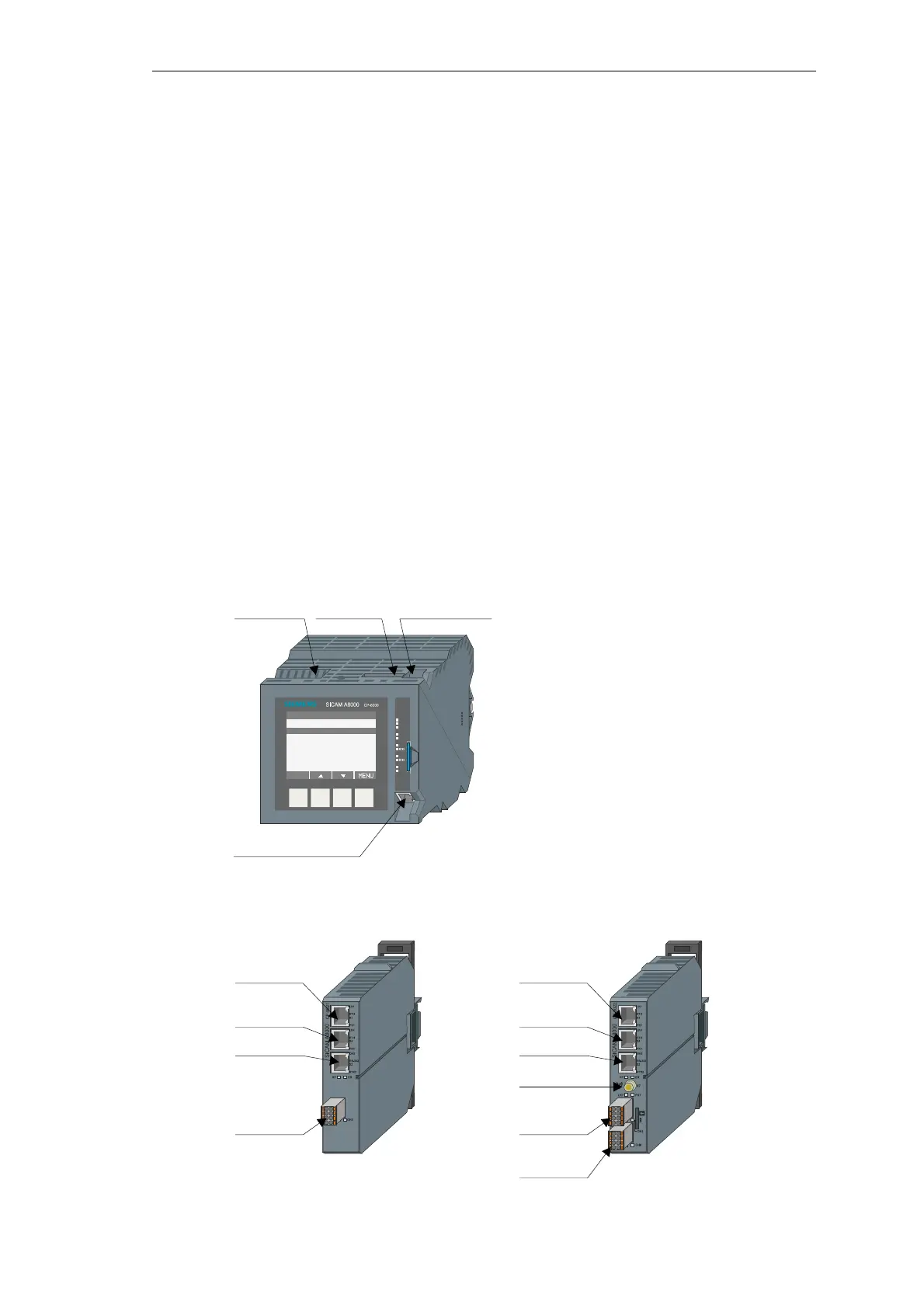

For a multitude of communication possibilities CP-8000/CP-802x provides the following inter-
faces:
2 Ethernet TCP/IP interfaces LAN/WAN (X1 and X4)
both Ethernet interfaces have optionally one common IP address or two independent
IP addresses (2 separate MAC addresses
1 serial interface according to standard RS-232 (X2)
1 serial interface according to standard RS-485 (X3)
CP-8022 provides moreover
1 serial interface configurable for standard RS-232 or RS-485 (X6)
1 GPRS antenna connection for integrated GPRS modem (X7)
All interfaces can be operated simultaneously.
X1: RJ45 Ethernet
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
F4F3F2F1
ESC
Main menu
Device information
Alarms
Monitorin
g
1.0
Confi
g
uration
X2: RS-232
CP-8000
X3: RS-485
X4: RJ45 Ethernet
X2: RS-232
X4: RJ45
Ethernet
X7: GPRS
X1: RJ45
Ethernet
X3: RS-485
X6: RS-485/
RS-232
CP-8021
CP-8022
X2: RS-232
X4: RJ45
Ethernet
X1: RJ45
Ethernet
X3: RS-485
