Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 191
DC8-037-2.02, Edition 10.2017
6.5.3.1 Mounting of the Power Supply Module
The Power Supply Module is equipped with a bus connector (CM-8812). This must be
equipped separately from the module. You must disconnect the bus connector before mount-
ing.

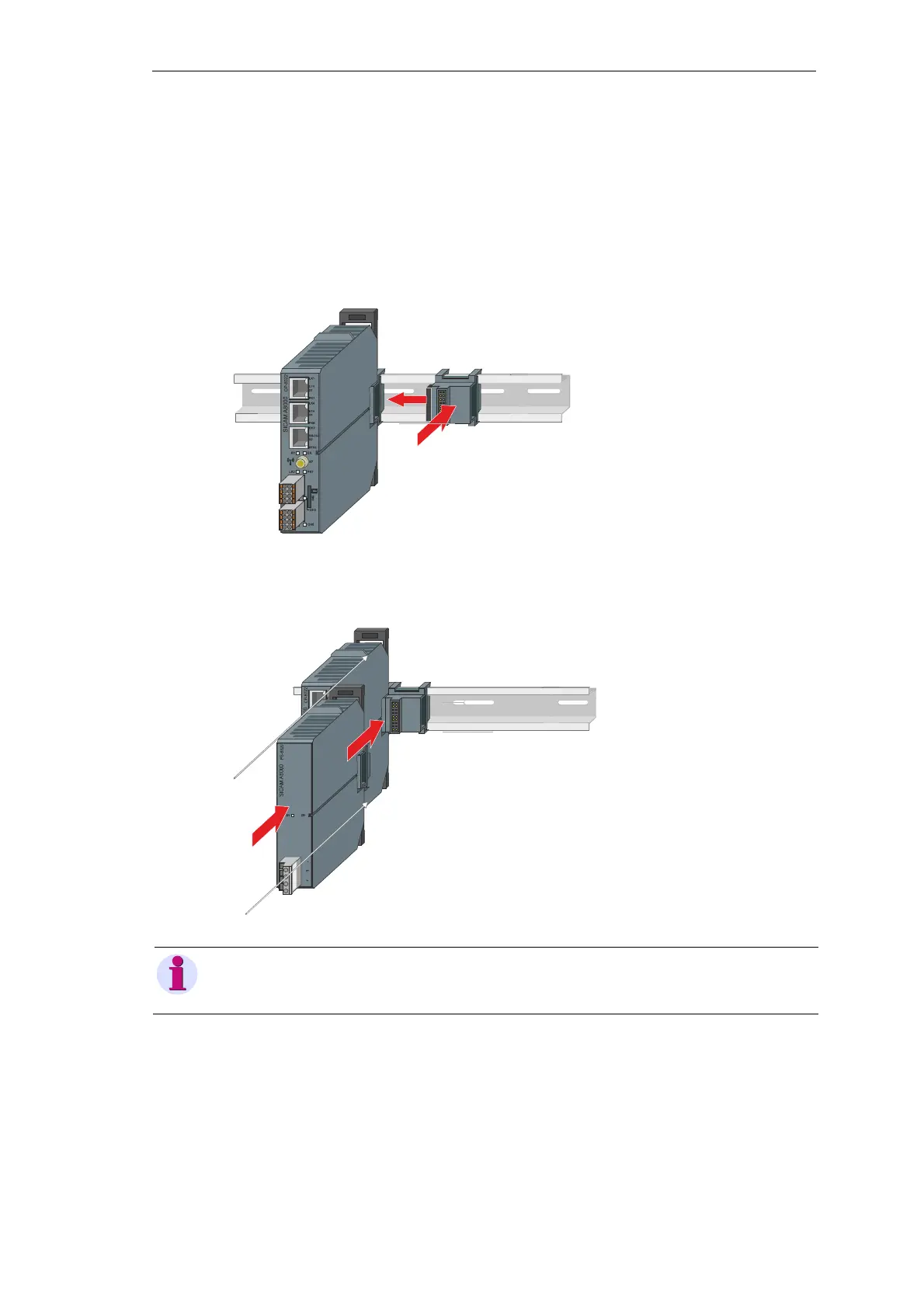

Click the bus connector right beside the Master Module on the DIN rail j and push it into the
bus plug of the Master Module k. Both elements must be aligned seamlessly.
The Power Supply Module can be mounted as shown in the following picture.
Note
The tongue and groove system integrated in the modules facilitates the correct combination. The module
is only connected correctly when the locking hook is snapped onto the DIN rail.
k
j
