System Overview
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 53
DC8-037-2.02, Edition 10.2017
2.4.2 SICAM WEB for Simple Applications
A top priority was also a simplified engineering possibility.

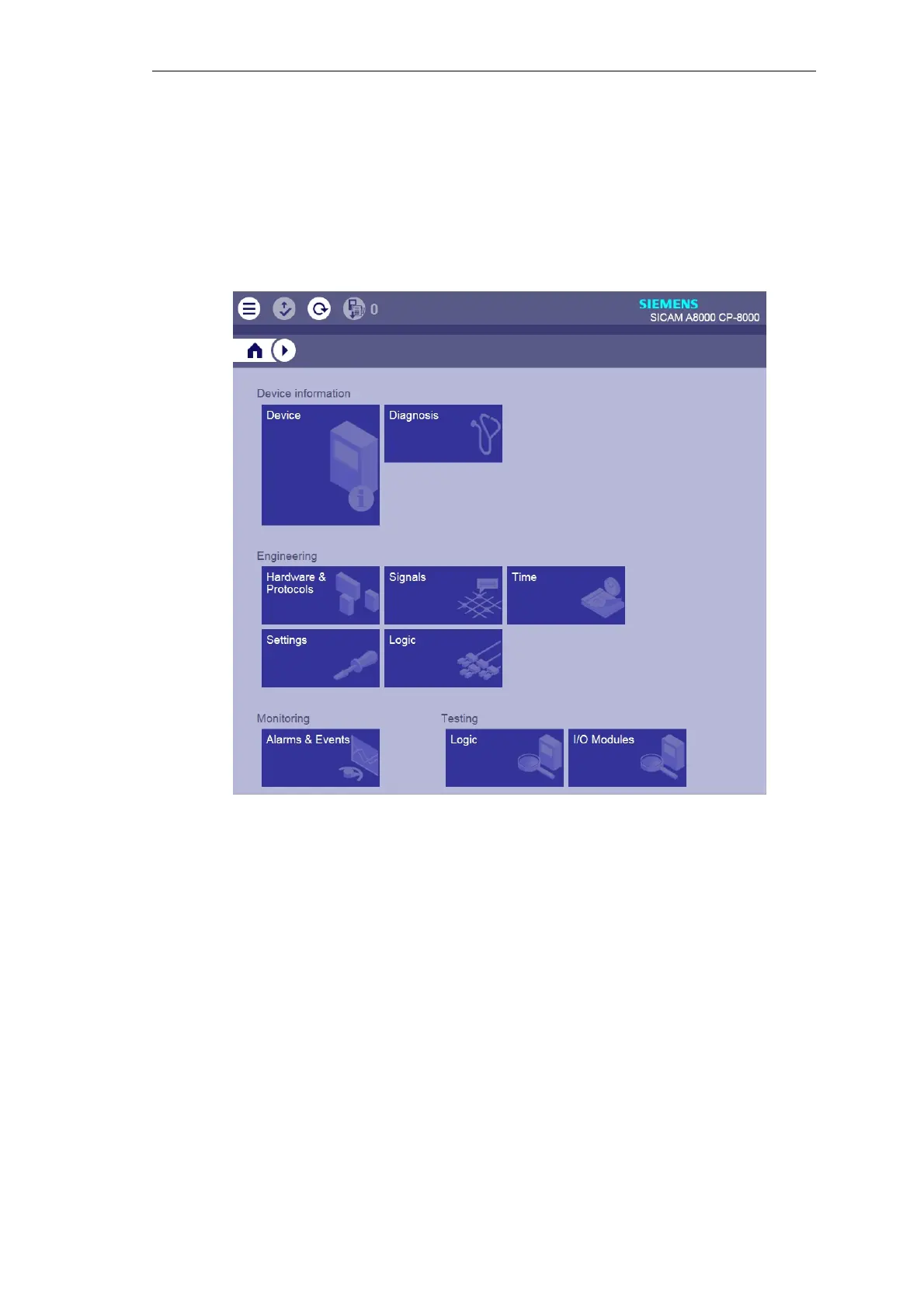

For the configuration, diagnosis and testing, CP-8000/CP-802x provides an integrated web
server that is operated with a standard web browser (Microsoft Internet Explorer® as of Ver-
sion 9). By means of that, no special tools or additional licenses are needed.
When configuring via web browser, there are some restrictions in the engineering options.
You can find more details thereto in the following section.
Implementation of Application Programs
Simple application programs can be created with an ASCII text editor as instruction list (IL),
based on the standard IEC 61131-3. Via the web browser, the instruction list can be uploaded
into the automation unit for execution.
