6.6 Memory Cards
6.6.1 SD Card
CP-8000/CP-802x uses an SD card (Secure Digital) for the storage of firmware, application
and diagnosis data. The Master Modules are supplied with an SD card inserted.
You find further information in section 7.5.1, SD Card.
Note
Do not remove or insert the SD card during operation of the device.
6.6.1.1 Inserting the SD Card

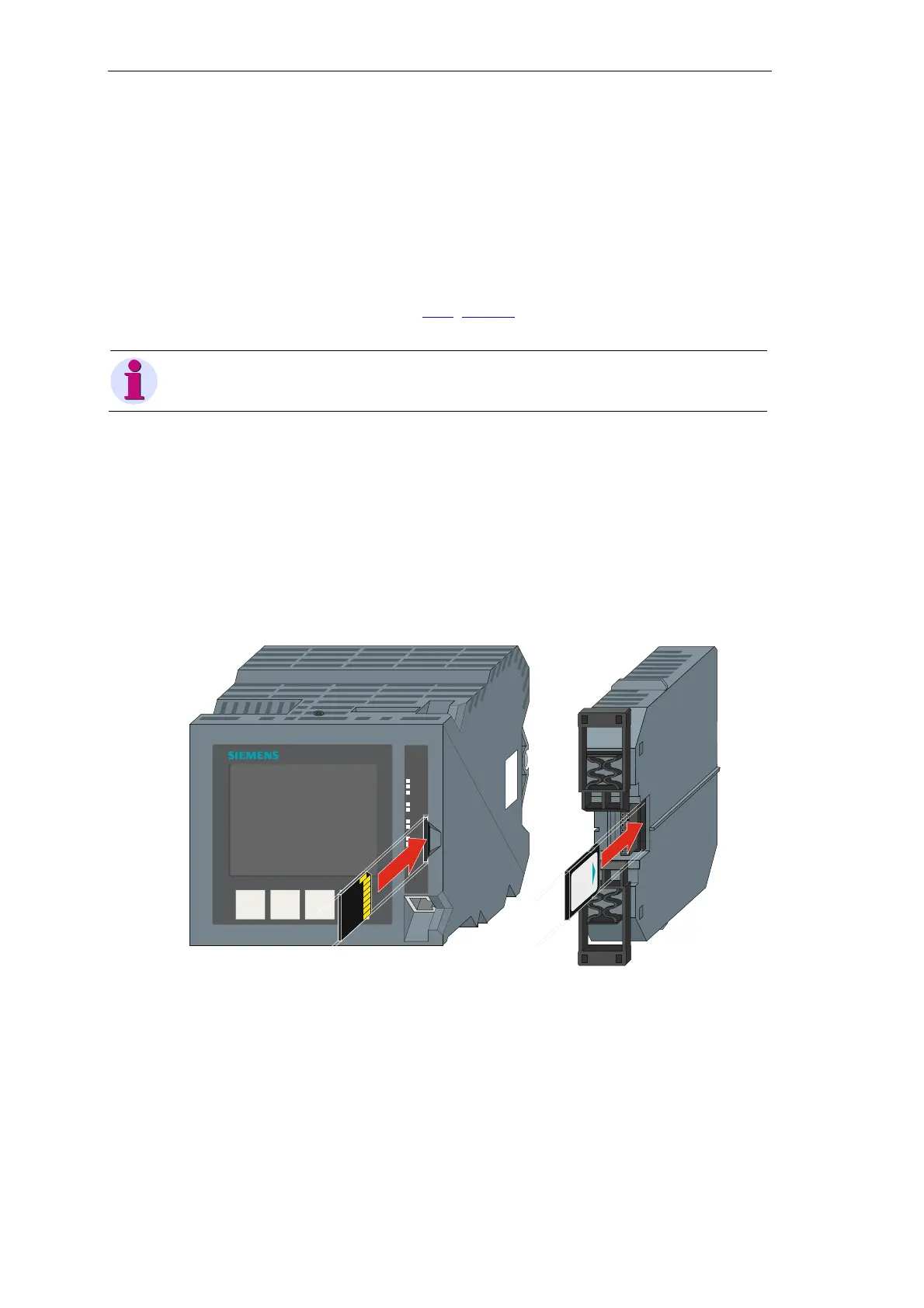

Whith CP-8000 the SD card is inserted in the front of the device.
With CP-802x the SD card is inserted in the rear side, therefore the Master Module must be
removed from the DIN rail when exchanging the SD card.
Put the SD card in the slot and press carefully until it engages.
6.6.1.2 Removing the SD Card
Disconnect the device from the supply voltage and wait for at least 30 s.
Push the SD card carefully until it is disengaged and springs out of the slot. The SD card can
now be removed.
