Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 179
DC8-037-2.02, Edition 10.2017
6.4.3 Removal/Shifting of the Master Module

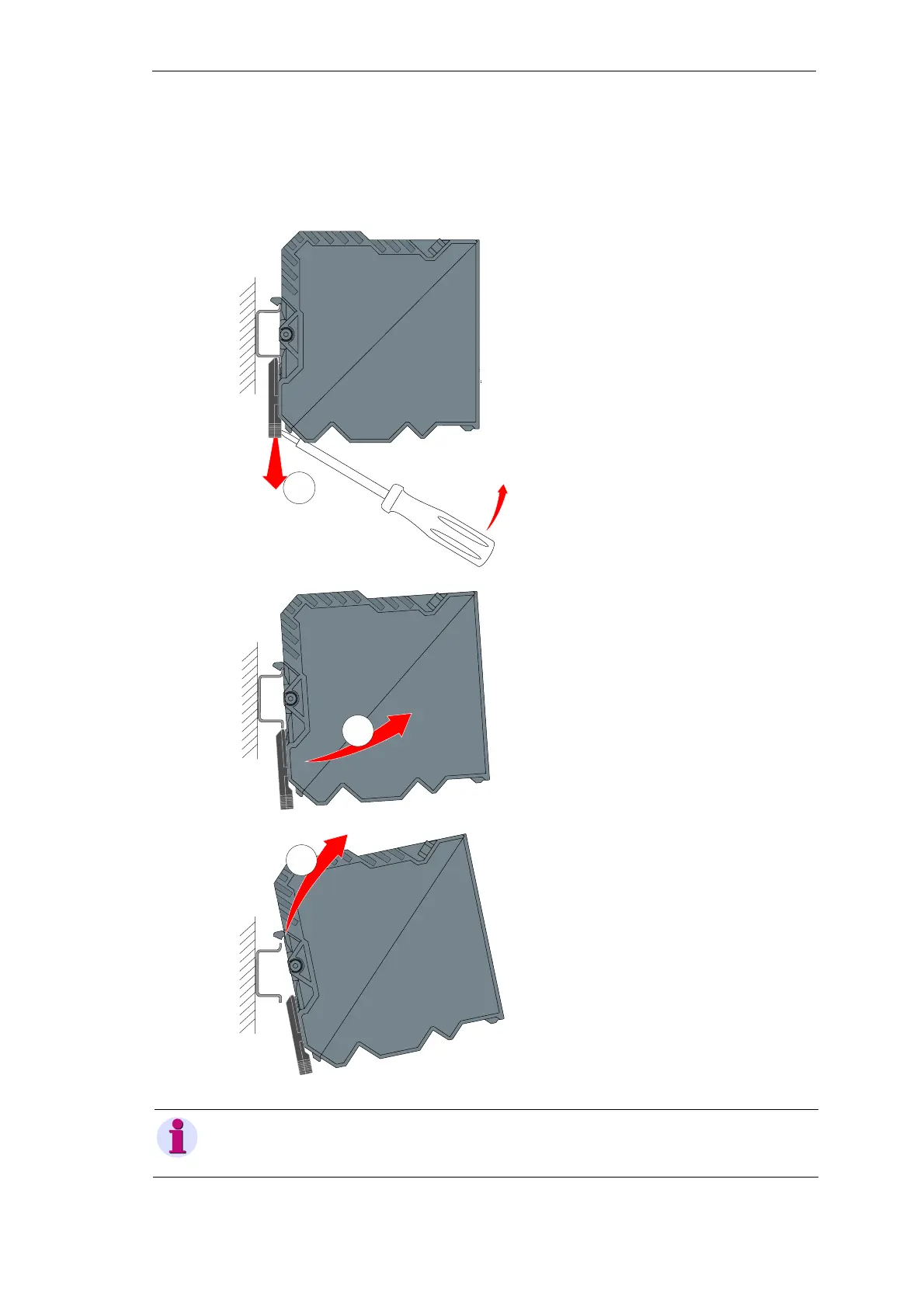

To remove the device again, or to change its position on the DIN rail, the locking hook must
be opened again.
Insert a screwdriver suitable for
slotted screws into the locking
hook below the casing. The screw
driver must have contact to the
housing.
The locking hook is opened by
carefully pushing the screwdriver
upwards.
Swing the bottom section of the
device slightly forward.
Lift the device upwards out of the
rail.
Note
If external I/O Modules are coupled to your device, then you can only remove the device after separating
the external I/O Modules.
1
2
3
