Service
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 491
DC8-037-2.02, Edition 10.2017
Submenu Submenu Display/settings Meaning/range
3.3
Cockpit
<Group 1>
<Group 2>
<Group 3>
:
<Group 32>
Signal name Freely definable text
Status Freely definable text (applies
for binary information)
Value Freely definable text (applies
for analog information)
Unit Freely definable text (applies
for analog information)
Quality bit Valid for process-events
(TI 30 and TI 31) only:
?: not topical
!: invalid
#: blocked
$: substituted
11.1.2.4.6 I/O Modules
In the submenu I/O Modules you can select
the status display for the individual I/O Modules
(only with equipped I/O Master Module).

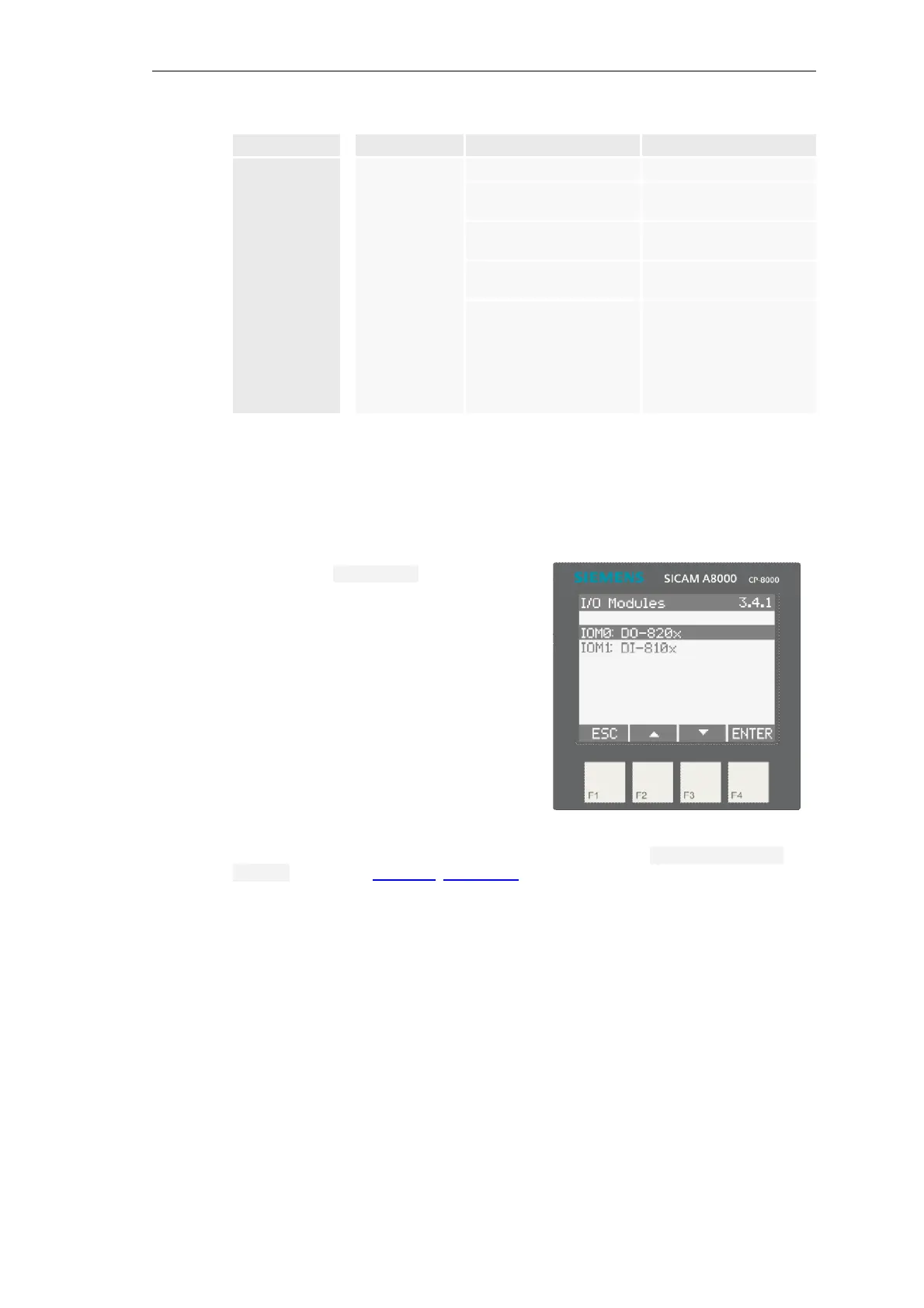

The image besides shows the standard sub-
menu.
The menu structure and the display corresponds with the submenu Configuration | I/O
Modules (see section 11.1.2.3.1, I/O Modules).
