Engineering via SICAM WEB
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 461
DC8-037-2.02, Edition 10.2017
Signals for the SICAM PAS coupling
Process-technical settings Signal
DIGITAL_VALUE, DIGITAL_VALUE_TYPE = SINGLE TI 30
DIGITAL_VALUE, DIGITAL_VALUE_TYPE = DOUBLE TI 31
ANALOG_VALUE, ANALOG_VALUE_TYPE = NORMALIZED TI 34
ANALOG_VALUE, ANALOG_VALUE_TYPE = SCALED TI 35
ANALOG_VALUE, ANALOG_VALUE_TYPE = FLOAT TI 36
COUNTER_VALUE TI 37
DIGITAL_CONTROL, DIGITAL_CONTROL_TYPE = SINGLE TI 45
DIGITAL_CONTROL, DIGITAL_CONTROL_TYPE = DOUBLE TI 46
ANALOG_CONTROL, ANALOG_CONTROL_TYPE = NORMALIZED TI 48
ANALOG_CONTROL, ANALOG_CONTROL_TYPE = SCALED TI 49
ANALOG_CONTROL, ANALOG_CONTROL_TYPE = FLOAT TI 50
OUTPUT_TIME0
1)
OUTPUT_TIME1
2)
OUTPUT_TIME2
3)
TI 45, TI 46, TI 47
TELEGRAM_ADDRESS (IOA3 x 65536) +
(IOA2 x 256) + IOA1
HIERARCHICAL_NAME Signal name if available, else
CASDU_<casdu>_IOA_<ioa>
DIGITAL_CONTROL, DIGITAL_CONTROL_TYPE = SINGLE TI 45
1)
single command: Output_t, double command: output_t0, output_t1
2)
AU common settings | Short pulse duration
3)
AU common settings | Long pulse duration
9.3.6 Download Process Data Archive
The data which is stored in the process data archive can be downloaded as CSV file and be
stored on the engineering PC. This file can be subsequently read as a table.
The file contains those binary information items, measured values and integrated totals, that
have been parameterized for the record in the process data archive (see 9.1.11.2.1, Configu-
rable Logging and Display of Signal States).
Select thereto the submenu Download process data archive .

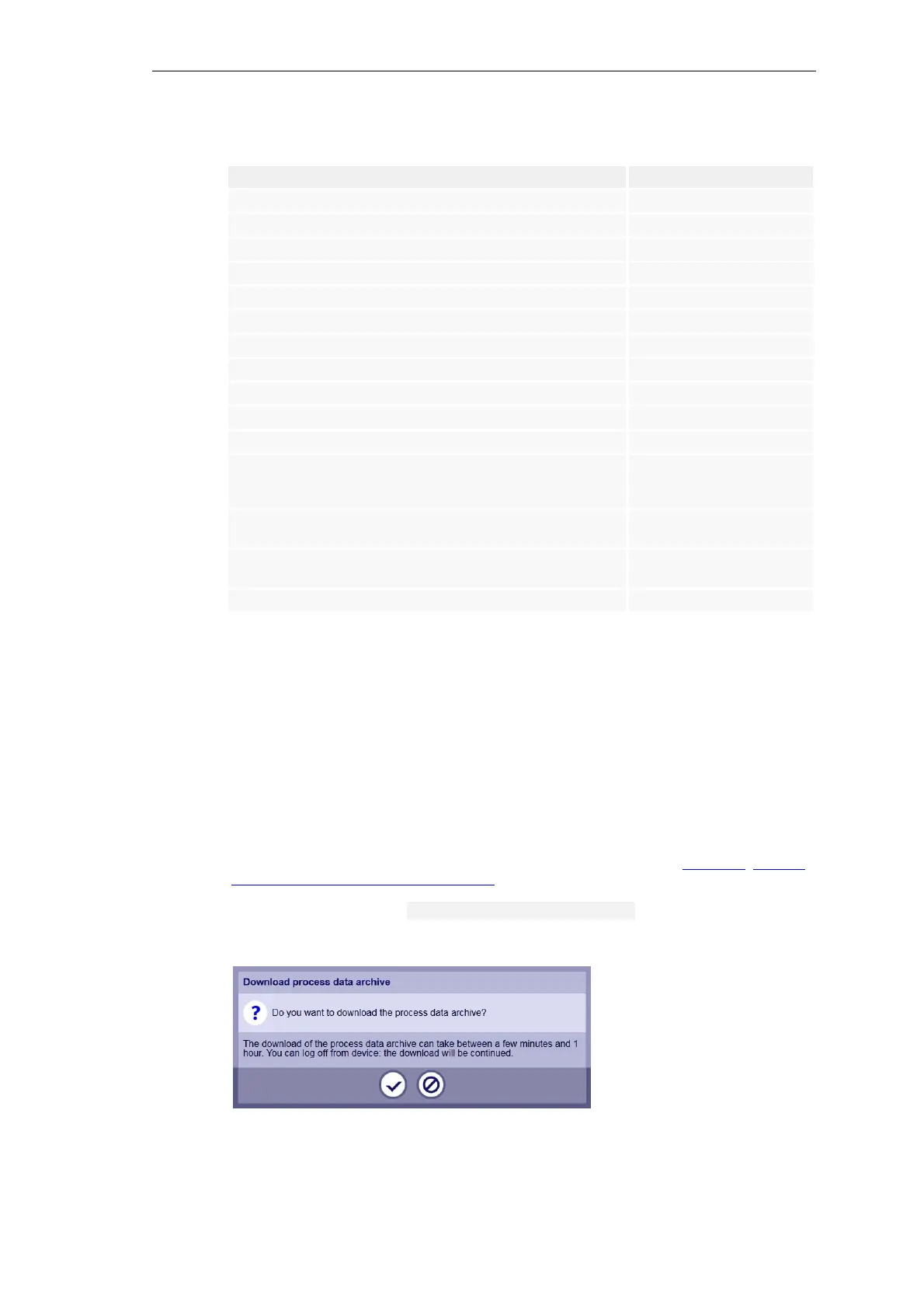

The following dialog will appear:
