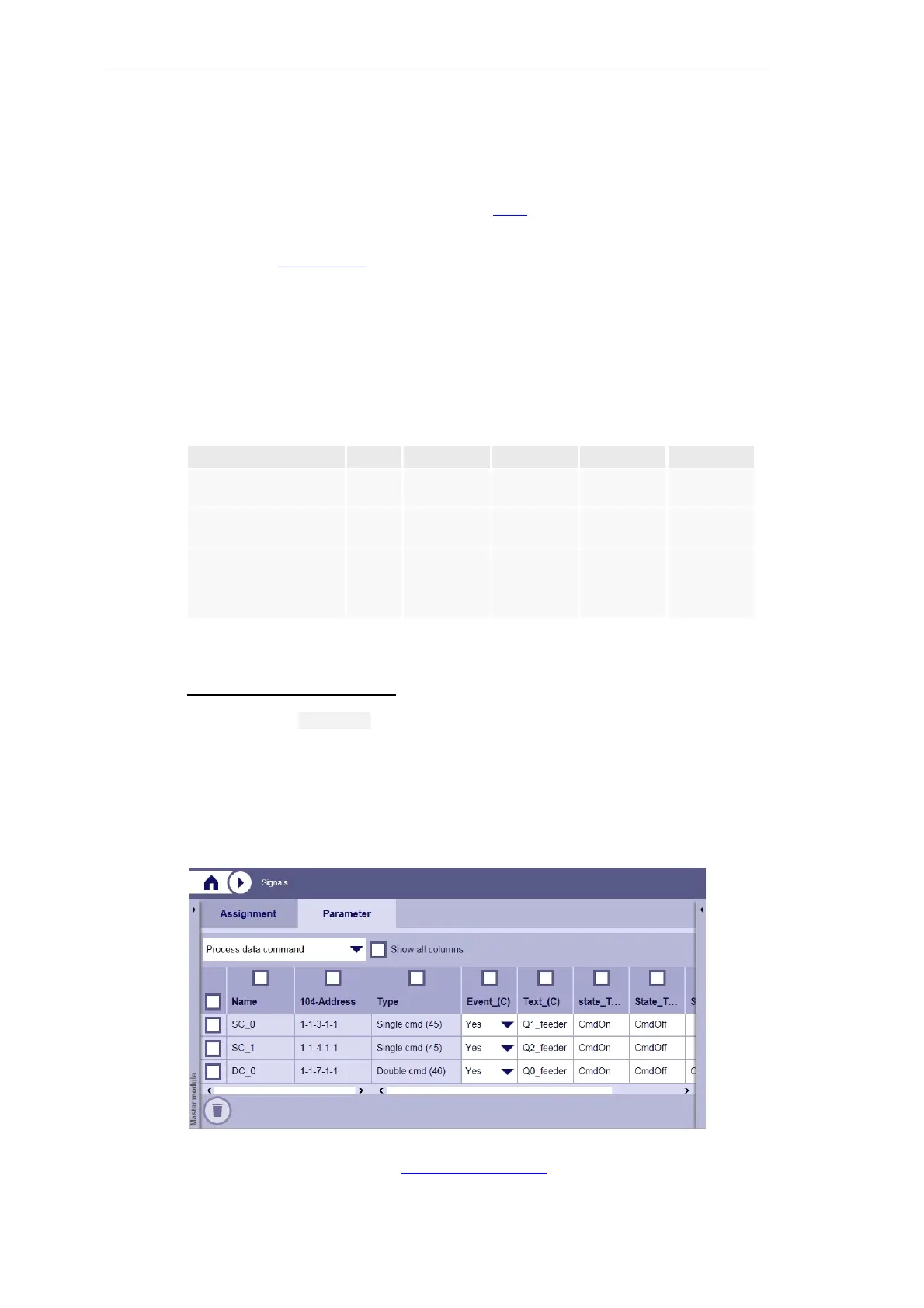

Engineering via SICAM WEB
356 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
After selection of the category you can set the process-technical parameters for the respective
signals.
Activate the checkbox SHOW ALL PARAMETERS, if you want to edit expert parameters
Save your changes from time to time, refer to Apply
Further steps: Restart device.
9.1.11.2.1 Configurable Logging and Display of Signal States
Process signals assigned to the Master Module can be configured for the logging (alarm,
event, archive) and for the display on the LCD (cockpit – only CP-8000).
The following categories and signal types are designated for that:
Category TI Alarm list Event list Archive Cockpit
Process data command TI 45
TI 46
ü
ü
Process data message TI 30
TI 31
ü
ü
ü
ü
ü
ü
ü
ü
Process data measured
value
TI 34
TI 35
TI 36
TI 37
ü
ü
ü
ü
ü
ü
ü
ü
This is how to define signals for the logging and/or for the display on the LCD:
Example: Process data command
Under the tab Parameter, select the category “Process data command
All signals assigned to that categorie are displayed.
Enter for each signal the desired texts for name and states
Select for each signal, whether ist is to be logged as an event
Description of the parameters see Process data command.
