6.4.5 Coupling of External SICAM TM I/O Modules
CP-8000 can be expanded with up to 6 external SICAM TM I/O Modules. Thereto the follow-
ing steps are essential:
• Mounting of the coupling module for SICAM TM I/O Modules
• Mounting of the bus connector for SICAM TM I/O Modules
• Mounting of the SICAM TM I/O Modules
6.4.5.1 Mounting of the Coupling Module for SICAM TM I/O Modules
The coupling module (CM-6811) must be mounted on the right side of the CP-8000 housing.
To mount the coupling module it is necessary to remove the label j which covers the I/O bus.

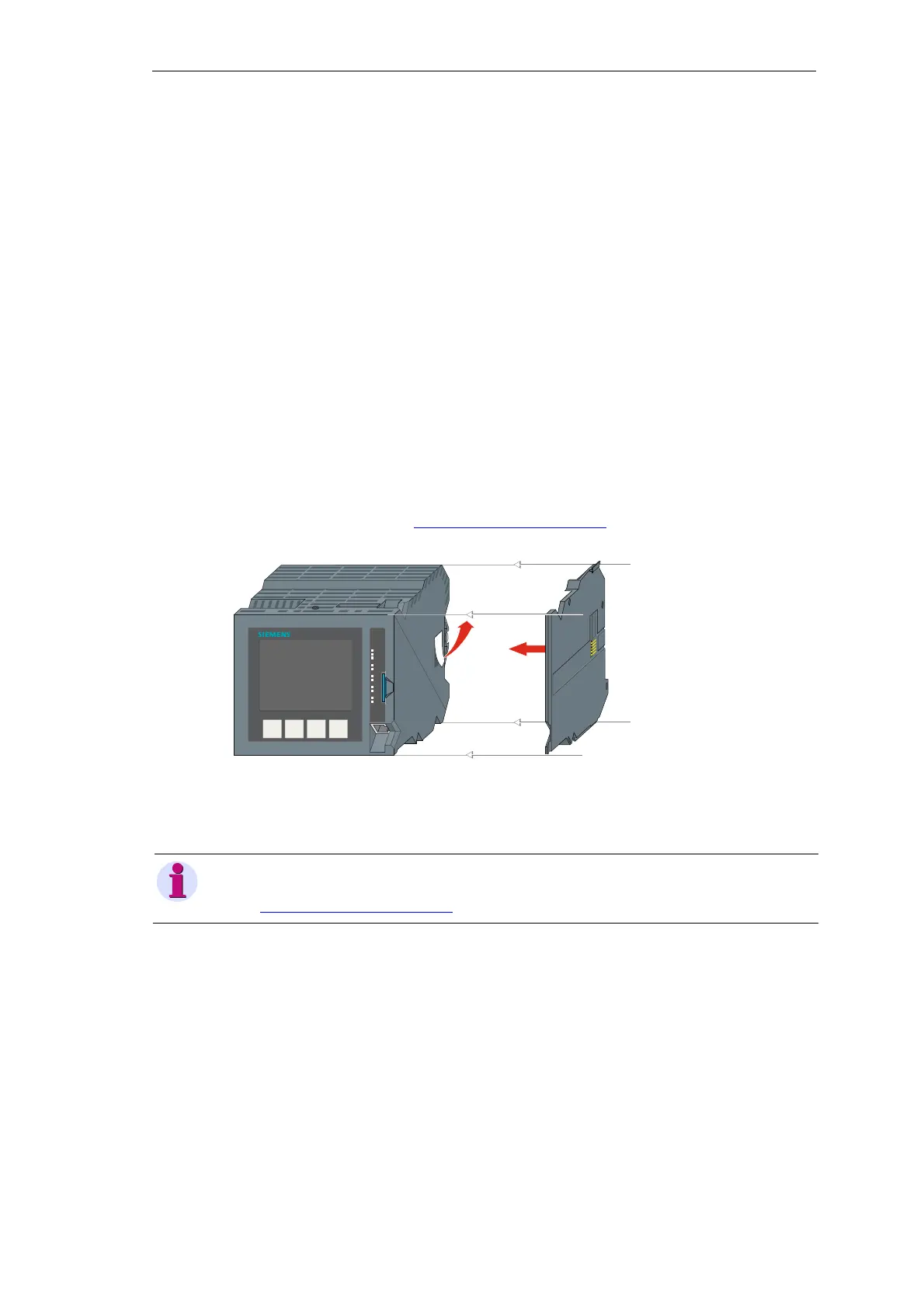

Afterwards lead the coupling module parallel to the housing k and push it evenly on it until it
is engaged.
The mount of the coupling module at the housing can take place before or after the device is
mounted on the DIN rail (see Mounting of the Master Module).
Now you can mount CP-8000 on the DIN rail.
Note
The mounting of the coupling module can take place before or after the housing is mounted on the DIN rail
(see Mounting of the Master Module).
