Installation and Circuitry
178 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

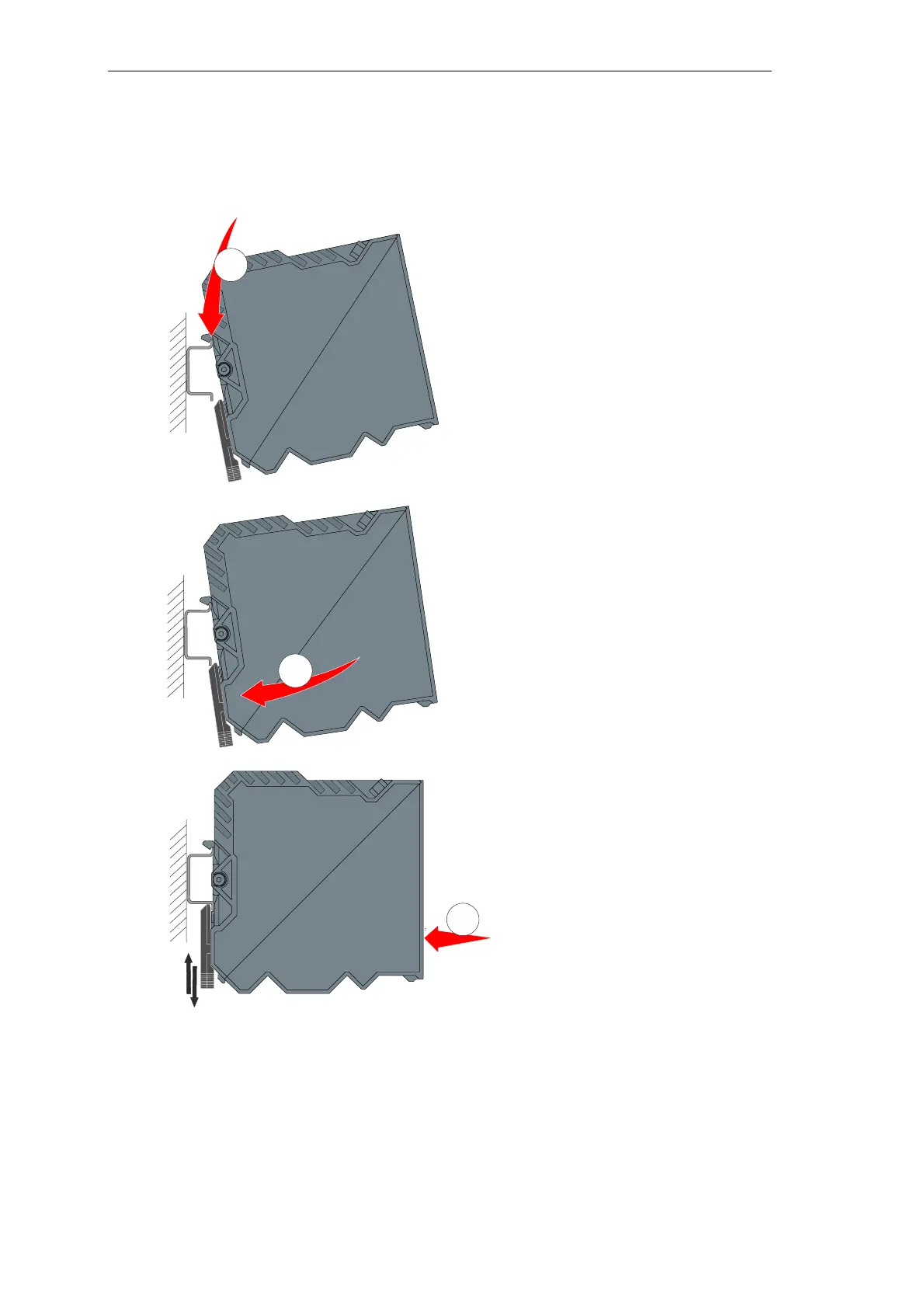

6.4.2 Mounting of the Master Module
CP-8000 can be installed on the DIN rail by hand, without any tools.
Hang the inclined device in the top
edge of the DIN rail.
Swing the device until the locking
hook has contact with the bottom
edge of the DIN rail.
Push the casing to the back. As a
result the locking hook opens
briefly and the casing engages in
the rail.
1
2
3

Siemens CP-8021 Specifications

General

Brand	Siemens
Model	CP-8021
Category	Controller
Language	English
