System Overview
44 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
2.1.5.2 External SICAM I/O Modules
The external SICAM I/O Modules can be used with all products of the SICAM A8000 series:
With CP-8000, up to 6 external SICAM I/O Modules can be used
With CP-8021 and CP-8022, up to 8 external SICAM I/O Modules can be used
Note
With CP-8000 the coupling module CM-8811 is required.
SICAM I/O Modules (type overview)
Product Overview
Type Designation Max. power
DI-8110 Binary input 2x8 DC 24 V 130 mW
DI-8111 Binary input 2x8 DC 48/60 V 130 mW
DI-8112 Binary input 2x8 DC 110 V 130 mW
DI-8113 Binary input 2x8 DC 220 V 130 mW
DO-8212 Binary output relays 8x DC 24 to 220 V / AC 230 V 800 mW
AI-8310 Analog input 2x2 Pt100/Pt1000 500 mW
AI-8320 Analog input 4x ±20 mA/±10 V 180 mW
AI-8510 Analog input 3x V (230 V), 3x I (LoPo) 800 mW
AI-8511 Analog input 3x V (LoPo), 3x I (LoPo) 800 mW
AO-8380 Analog output 4x ±20 mA/±10 V 2200 mW
CM-8811 Coupling module for SICAM I/O Modules
CM-8812
*)
Bus connector for SICAM I/O Modules
CM-8820 Current transformer adapter for AI-8510 (1 A/5 A)
*)
supplied with each I/O Module

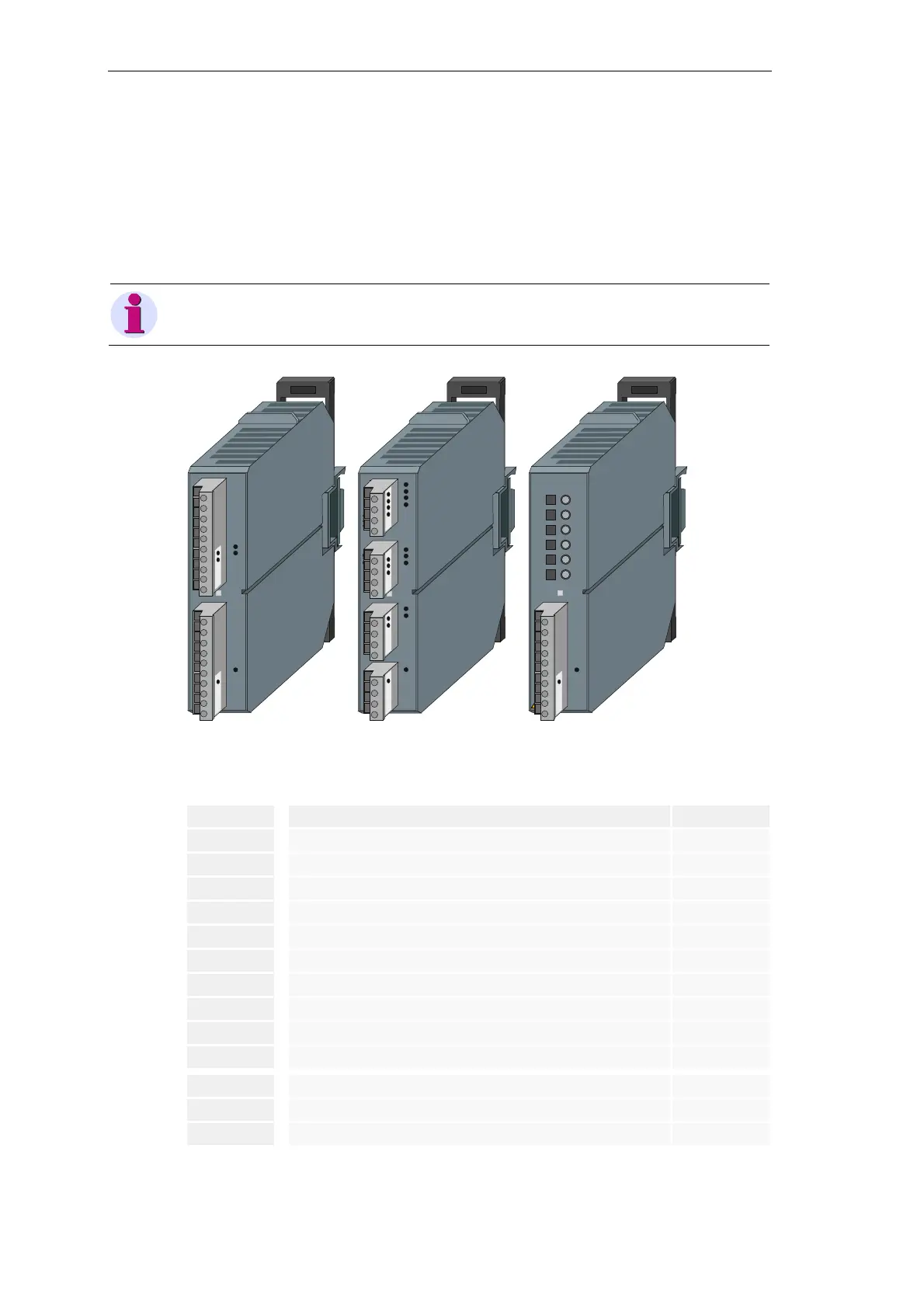

SICAM A8000 DI-8110
X2
X1
SICAM A8000
AI-8320
RY
X4
X3
X2
X1
SICAM A8000 CM-8820
X2
X1
