7.7.2.1.2 Point-to-Point Connection via Ethernet Interface
The parameterization via point-to-point is suitable if the engineering PC and the target device
are not operated in a network.

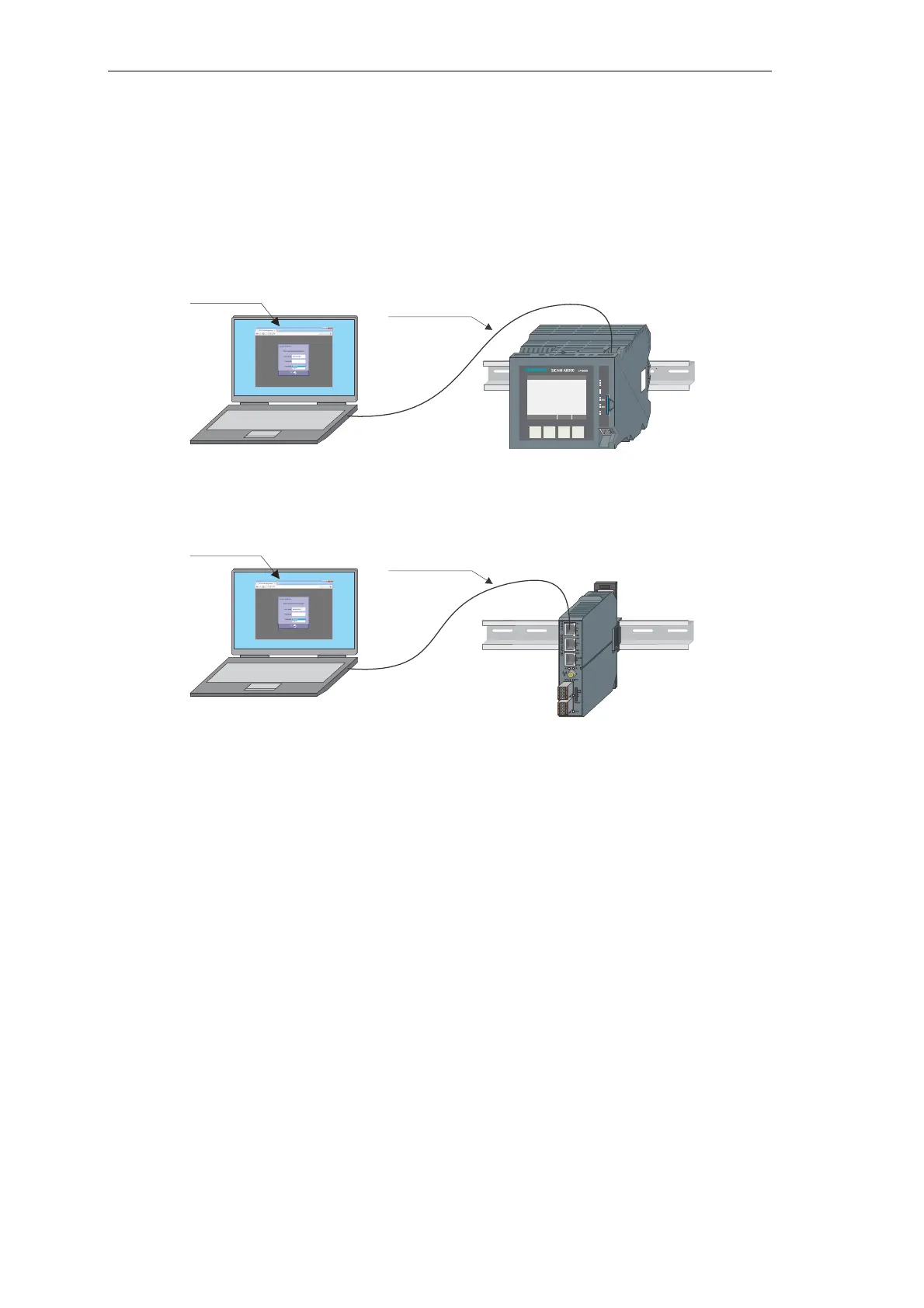

Engineering PC and CP-8000 are connected with a cross connected patch cable via one of
the Ethernet interfaces (X1 or X4).
Engineering PC and CP-802x are connected with a cross connected patch cable via one of
the Ethernet interfaces (X1 or X4).
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
R S -2 32
OH2
R S -4 85
OH3
ETH
LK4
PK4
SD
X4
CP-8000
Patch cable cat.5
(twisted pair )
Web browser
CP-802x
Patch cable cat.5
(twisted pair )
Web browser
