Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 235
DC8-037-2.02, Edition 10.2017

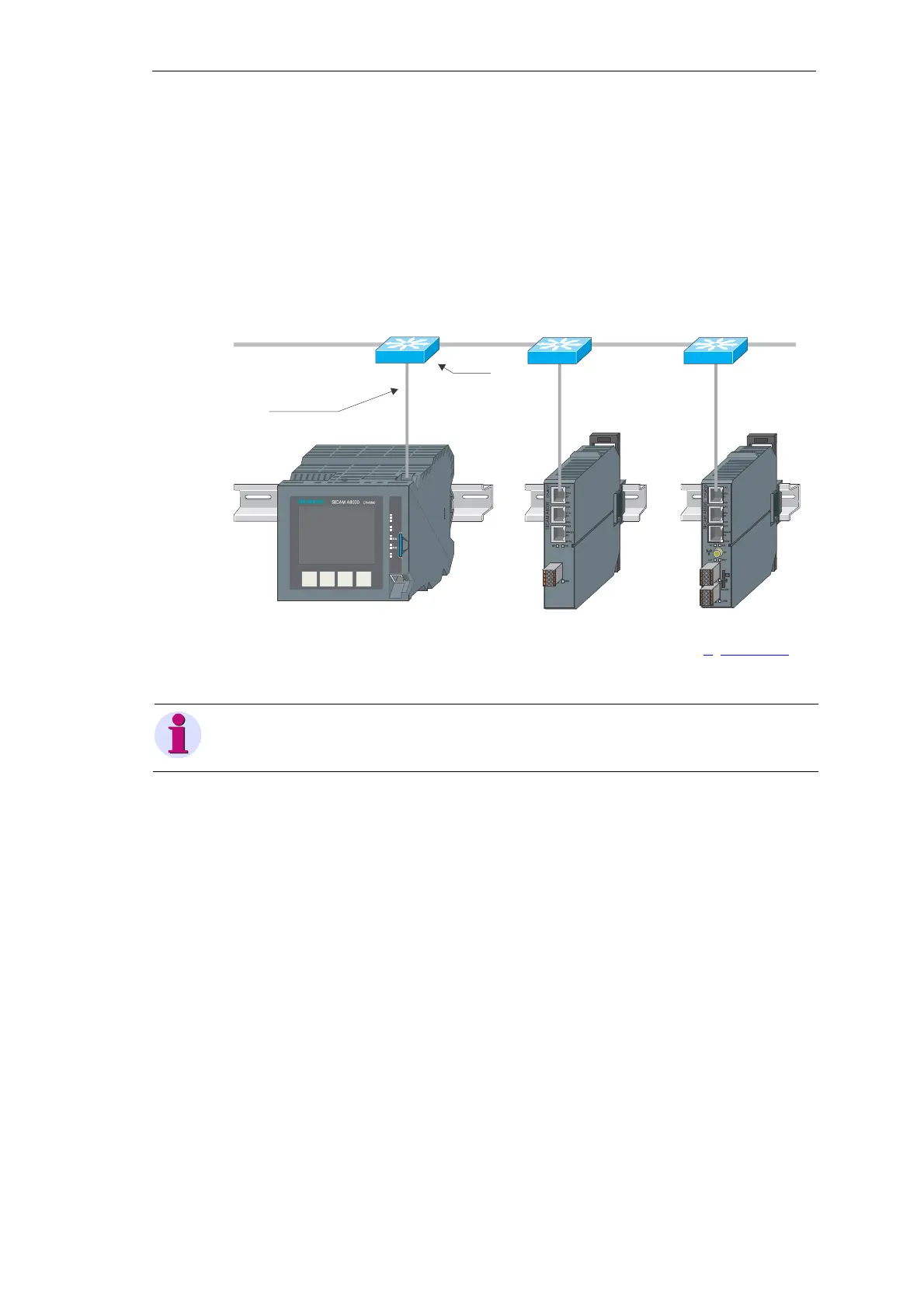

6.11.2 Ethernet TCP/IP
6.11.2.1 Communication via LAN/WAN
6.11.2.1.1 CP-8000
You will find more detailed information on network configuration in appendix E, Use Cases.
Note
Depe
nding whether a connection is done inside or outside of cabinets, different types of patch cables must
be used.
You can find details on connections above 10 m in the manual SICAM RTUs Platforms Con-
figuration Automation Units and Automation Networks, appendix A; section "Electrical Con-
nection, Cable longer than 10 m".
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
CP-8022
CP-8021
CP-8000
Switch
Ethernet TCP/IP
Patch cable
