Installation and Circuitry
180 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
6.4.4 Coupling of external SICAM I/O Modules
CP-8000 can be expanded by up to 6 external SICAM I/O Modules. Thereto the following
steps are essential:
• Mounting of the coupling module for SICAM I/O Modules
• Mounting of the bus connector for SICAM I/O Modules
• Mounting of the SICAM I/O Modules
6.4.4.1 Mounting of the Coupling Module for SICAM I/O Modules

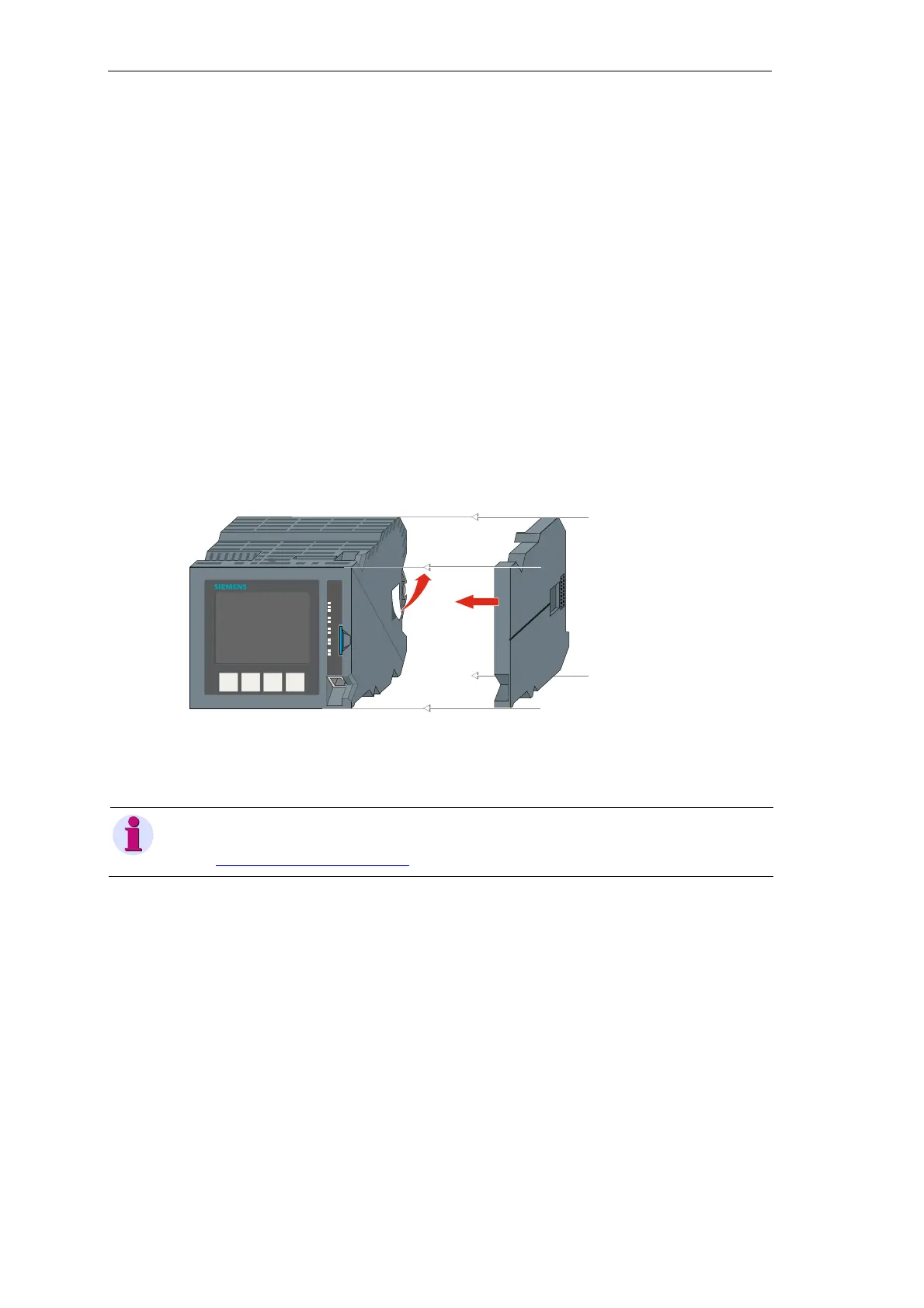

The coupling module (CM-8811) must be mounted on the right side of the CP-8000 housing.
To mount the coupling module it is necessary to remove the label j which covers the I/O bus.
Afterwards lead the coupling module parallel to the housing k and push it evenly on it until it
is engaged.
Now you can mount CP-8000 on the DIN rail.
Note
The mounting of the coupling module can take place before or after the housing is
(see Mounting of the Master Module).
SICAM CM IC
F4F3F2F1
SICAM A8000
POK
RY
ER
E TH
LK1
PK1
R S-232
OH2
RTX2
R S-485
OH3
RTX3
E TH
LK4
PK4
SD
X4
CP-8000
k
j
