Siemens CP-8021

Use Cases
602 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

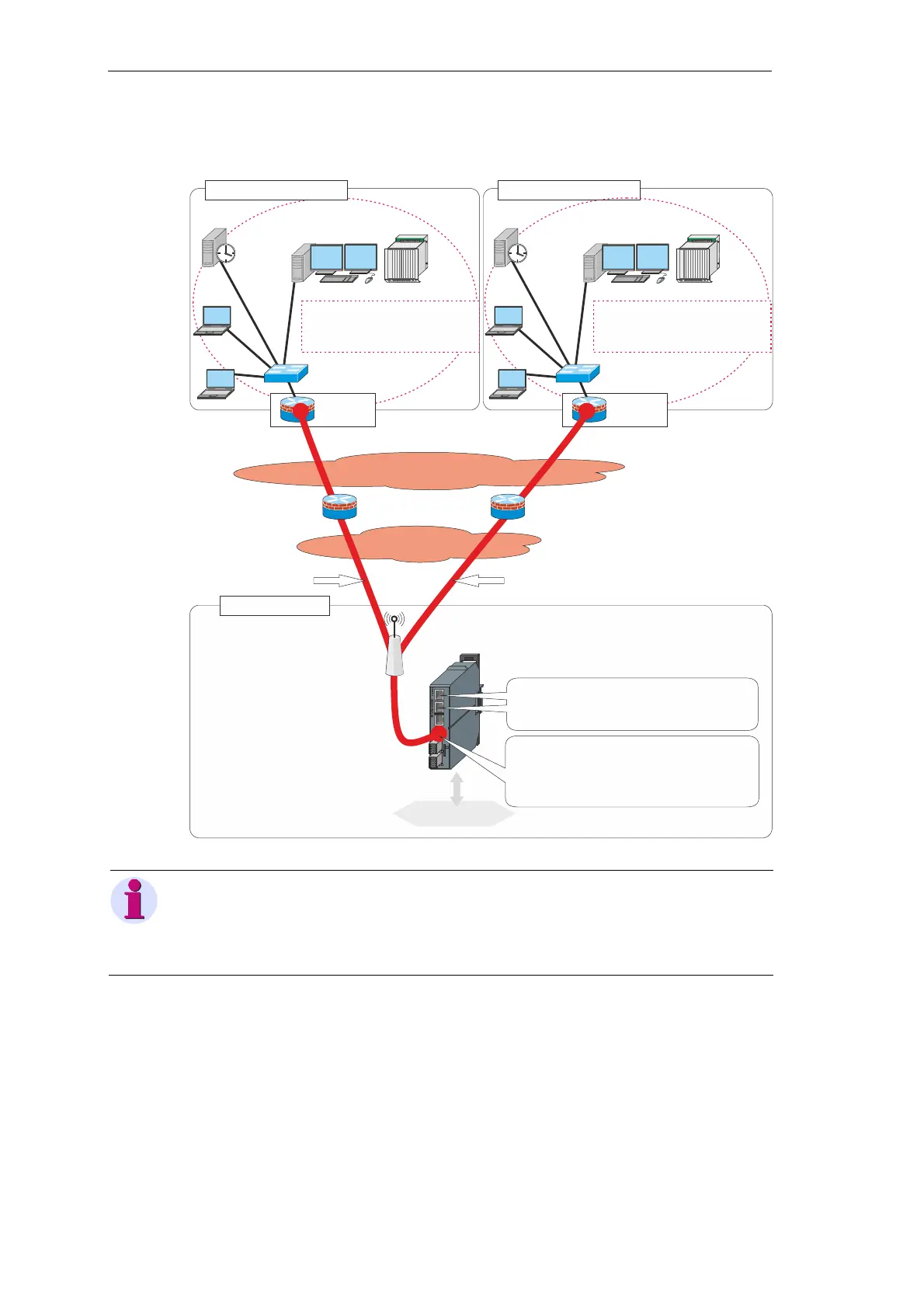

E.7.3 GPRS Communication with 2 IPSec VPN Tunnel
Note
Siemens recommends with this configuration the parameterization of an IP address for the local LAN
interfaces X1/X4 as a precaution. Thereby you can prevent a “lockout” due to an erroneous GPRS config-
uration.
When GPRS is activated, the local LAN interfaces X1 and X4 are operated in switch mode.
CP-8022
Office Zone
SICAM
TOOLBOX II
UDP
https
NTP Server
SNMP Manager
SICAM
WEB
https
IEC 61850
60870-104
Router
Office Zone
SICAM
TOOLBOX II
UDP
https
NTP Server
SNMP Manager
SICAM
WEB
https
IEC 61850
60870-104
Router
Router
Router
IPsec VPN Tunnel 2
IPsec VPN Tunnel 1
X7
X1/X4
Control system or SICAM AK 3
IP address 122.33.0.2
Subnet mask 255.255.255.0
IP security - Remote site 2
IP address 192.168.1.152
IP address 122.33.0.254
IP Security - Remote site 2
Identifier (Remote ID)
Subnet IP address
Subnet mask
remote-id2
122.33.0.0
255.255.255.0
IP security - Remote site 1
IP address 192.168.1.151
IP address 172.17.0.254
IP Security - Remote site 1
Identifier (Remote ID)
Subnet IP address
Subnet mask
remote-id1
172.17.0.0
255.255.248.0
Control system or SICAM AK 3
IP address 172.17.0.22
Subnet mask 255.255.248.0
Own IP address GPRS VPN0
Subnet mask GPRS VPN0
Own IP address GPRS VPN1
Subnet mask GPRS VPN1
172.16.0.3
255.255.255.0
122.32.1.58
255.255.255.0
IP security - Local site
Identifier (Local ID) local-id
GPRS antenna
Process
Public mobile network
Public fixed IP network
Substation Zone
Control Center Zone 2Control Center Zone 1
Own IP address X1/X4
Subnet mask X1/X4
192.168.0.5
255.255.0.0
(The local site IP address is the address
from the GPRS network)
